Engine Control Module (ECM)
WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

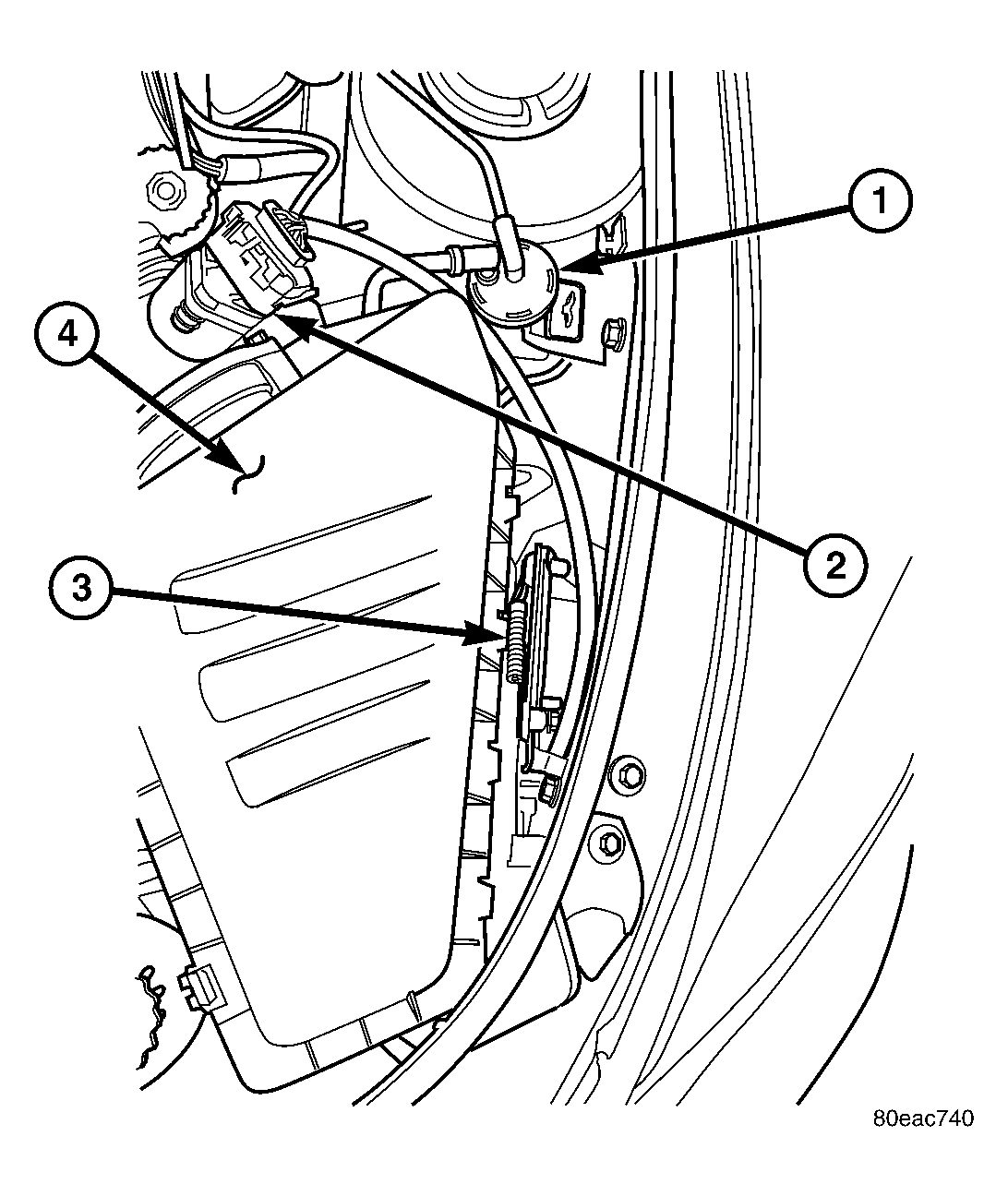

| 1 - EGR SOLENOID |
| 2 - MAF SENSOR |
| 3 - ENGINE CONTROL MODULE (ECM) |
| 4 - AIR CLEANER ASSEMBLY |
The Engine Control Module (ECM) (3) is located in the left side of engine compartment attached to the left inner fender behind the battery. See Fig 1.
