Module-Powertrain Control - 1.6L

WARNING: This page is about a different car, the 2007 Chrysler PT Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

The PCM engine control strategy prevents reduced idle speeds until after the engine operates for 320 km (200 miles). If the PCM is replaced after 320 km (200 miles) of usage, update the mileage and vehicle identification number (VIN) in the new PCM. Use the scan tool to change the mileage and VIN in the PCM. If this step is not done a Diagnostic Trouble Code (DTC) may be set. Refer to the appropriate Powertrain Diagnostic and scan tool.

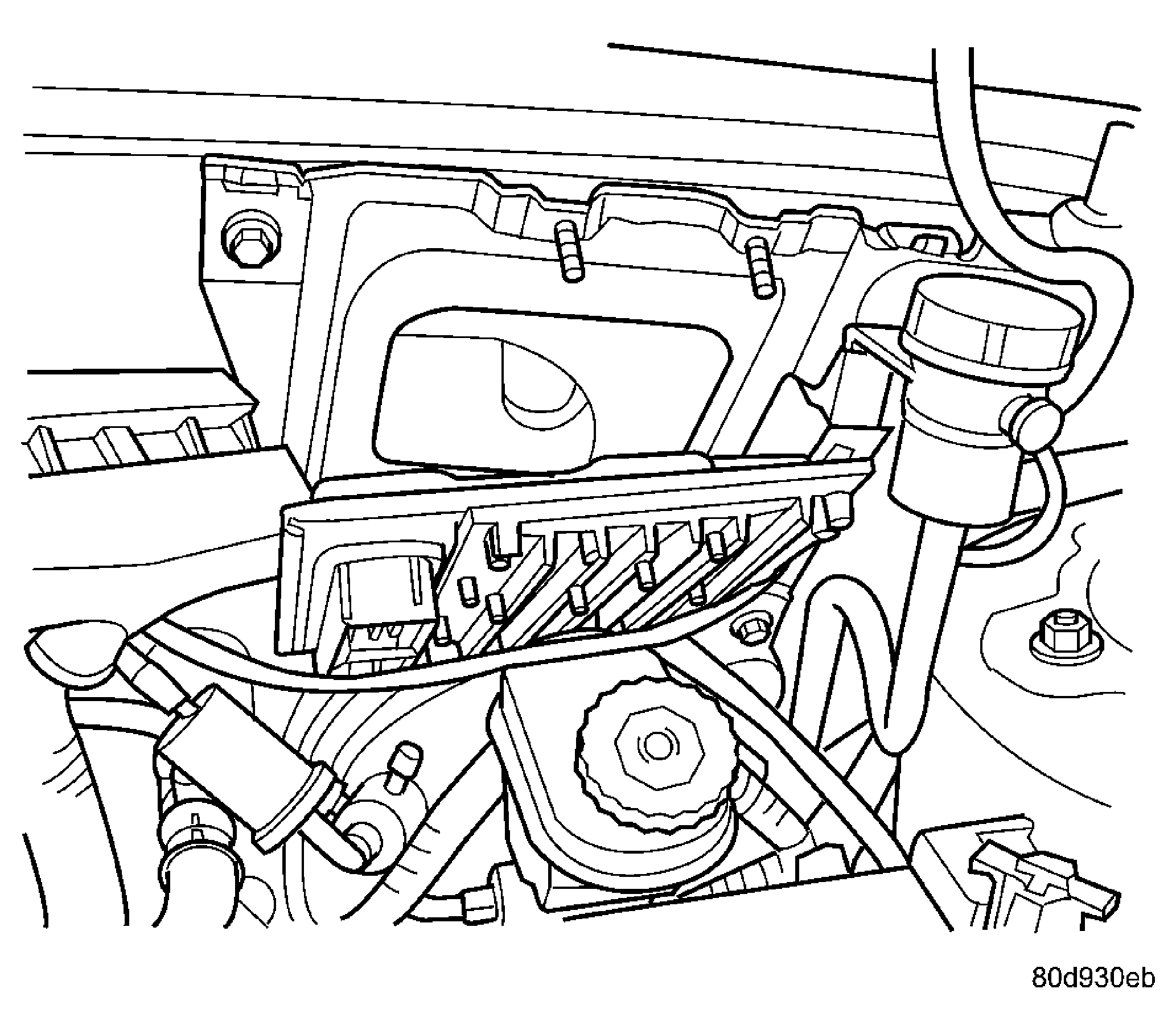

Fig 1: PCM Location

Courtesy of CHRYSLER LLC

The PCM attaches to a bracket which attaches to the dash panel welded brackets.

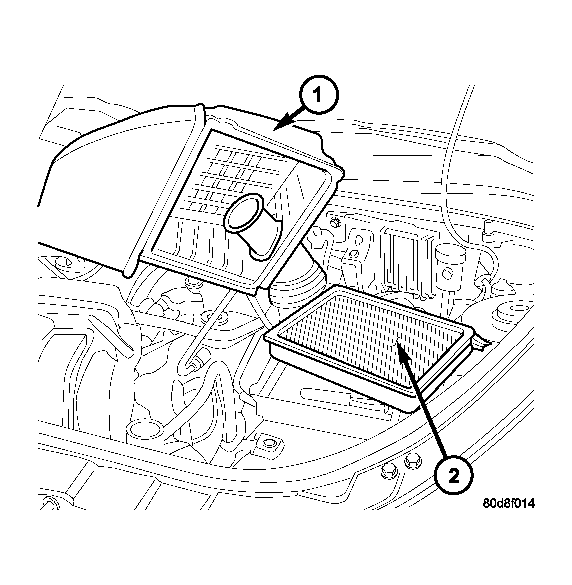

Fig 2: Identifying Air Cleaner Housing Cover & Element

Courtesy of CHRYSLER LLC

Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.

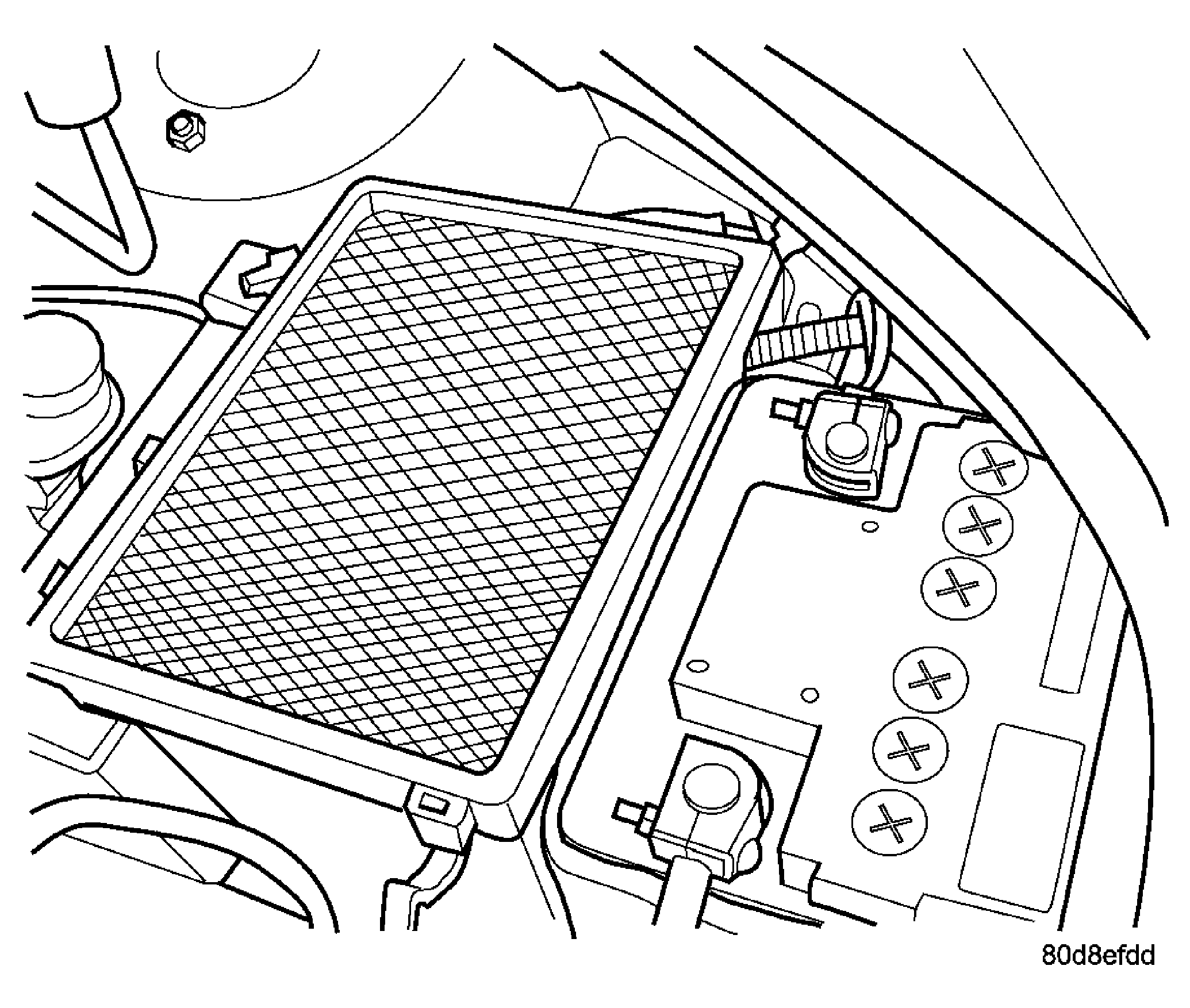

Fig 3: View Of Battery
Courtesy of CHRYSLER LLC
Remove the negative battery cable.

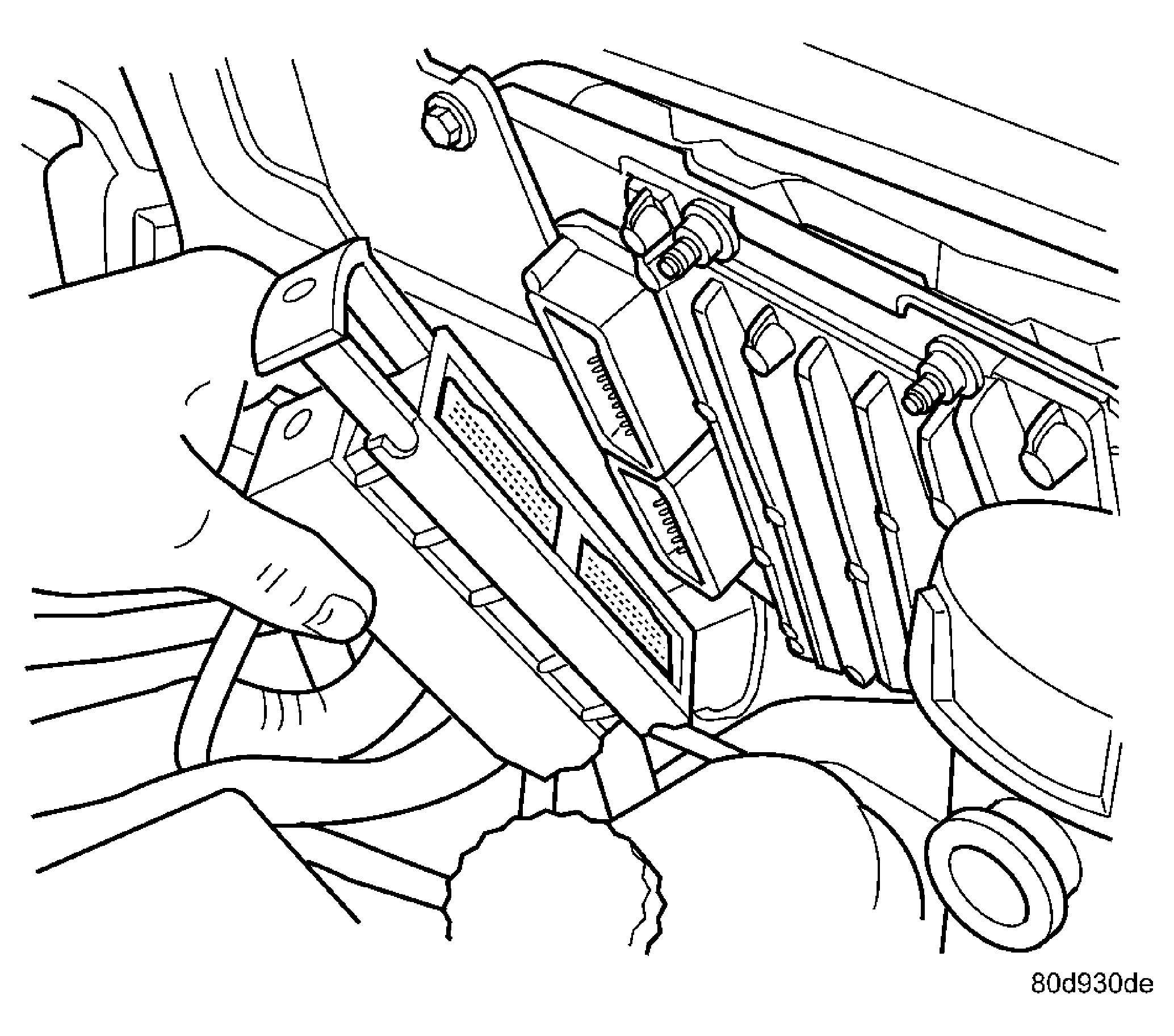

Fig 4: Unlocking PCM Connector
Courtesy of CHRYSLER LLC
Unlock the PCM connector by pulling on the tab on the end of the PCM connector.

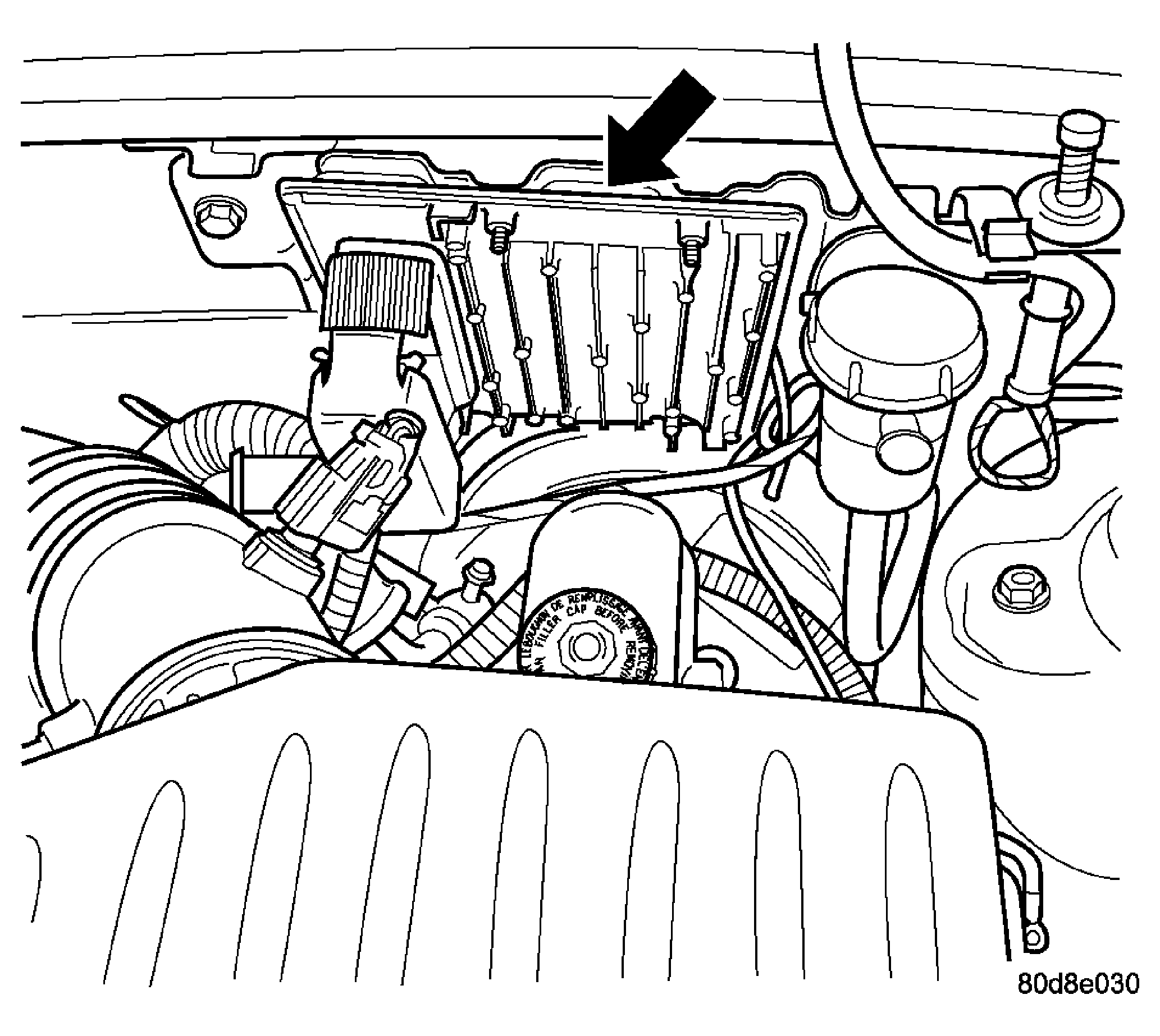

Fig 5: Identifying PCM Connector
Courtesy of CHRYSLER LLC
Remove electrical connector from the PCM.

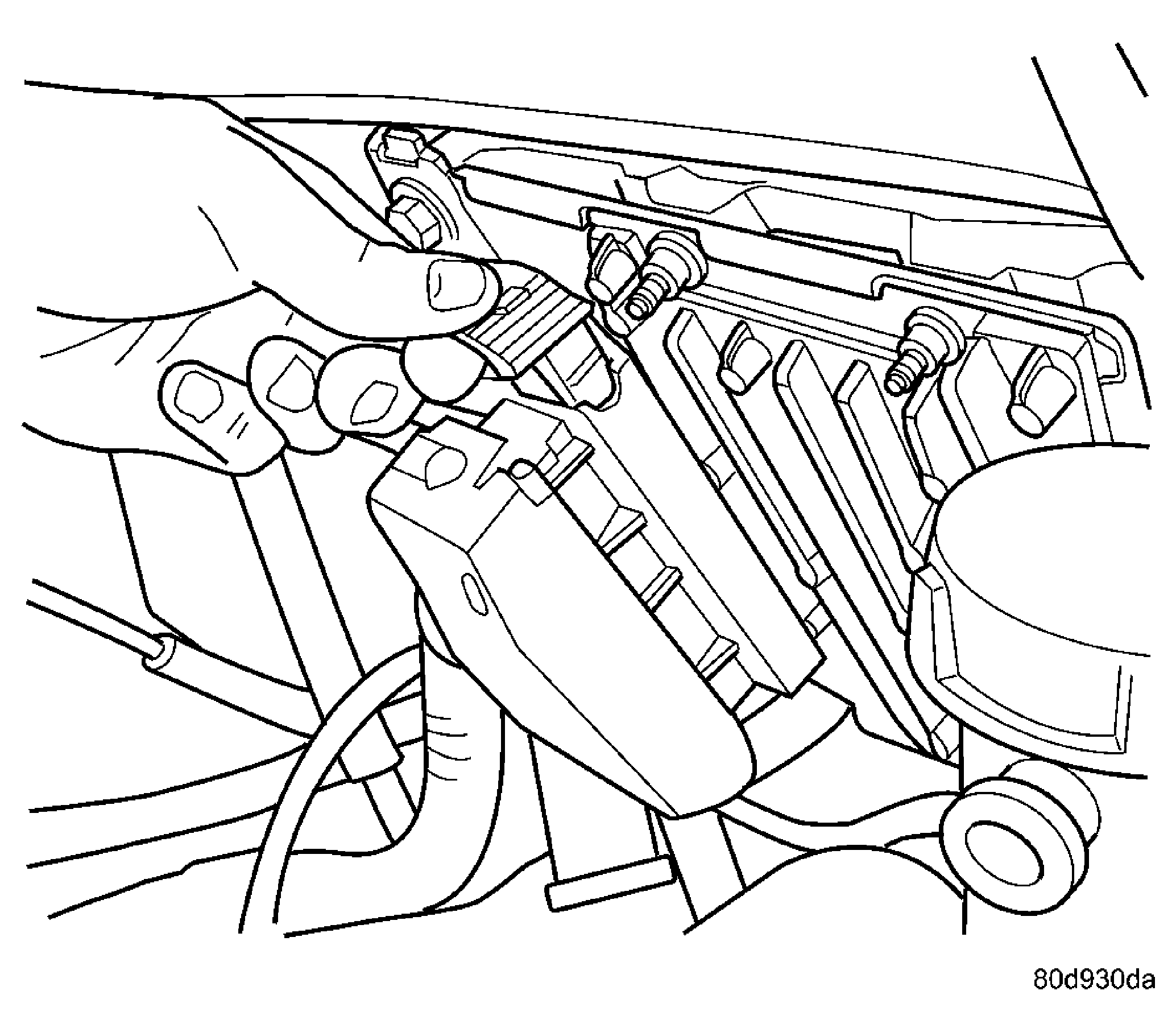

Fig 6: Removing/Installing Powertrain Control Module
Courtesy of CHRYSLER LLC
Remove attaching nuts for PCM to bracket.
Lift PCM up to remove it from vehicle.
