Sensor-Ambient Air Temperature: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.

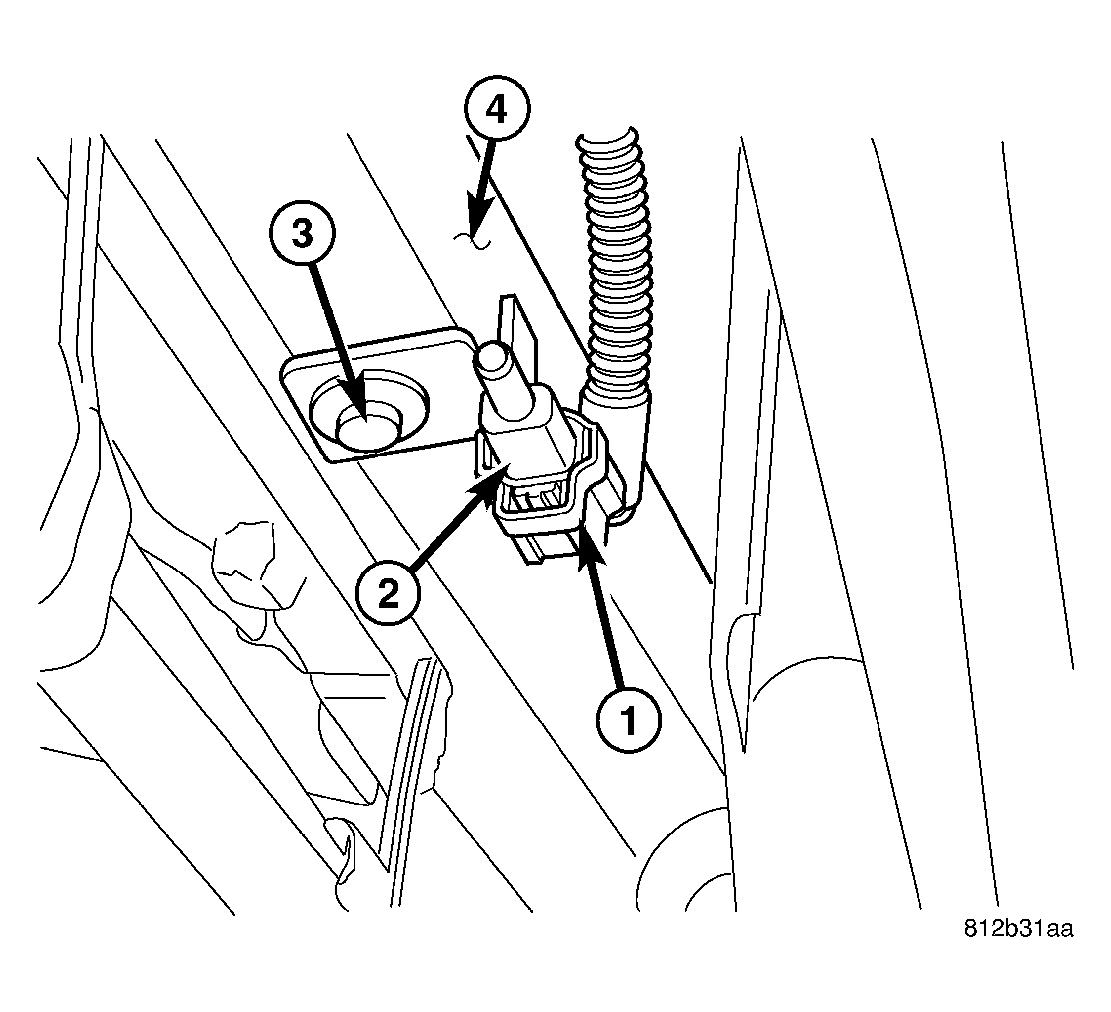

Fig 1: Remove/Install Ambient Air Temperature Sensor
GC0013936Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the ambient air temperature sensor (2) onto the bottom of the front bumper beam (4).
  2. Install the push pin (3) that secures the ambient air temperature sensor to the front bumper beam.
  3. Connect the wire harness connector (1) to the ambient air temperature sensor.
  4. Install the front end belly pan (Refer to INSTALLATION .
  5. Lower the vehicle.
  6. Reconnect the negative battery cable.
