Section 45 (HVAC System (Service Information)): Controls: Sensor-Sun: Installation

WARNING: This page is about a different car, the 2006 Dodge Magnum, 2006 Dodge Charger, and 2006 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Disconnect/Connect Sun Sensor
GC0013942Courtesy of DAIMLERCHRYSLER CORP.
  1. Position the sun sensor assembly (2) near the instrument panel (3).
  2. Connect the wiring harness connector (1) to the sun sensor assembly (2).

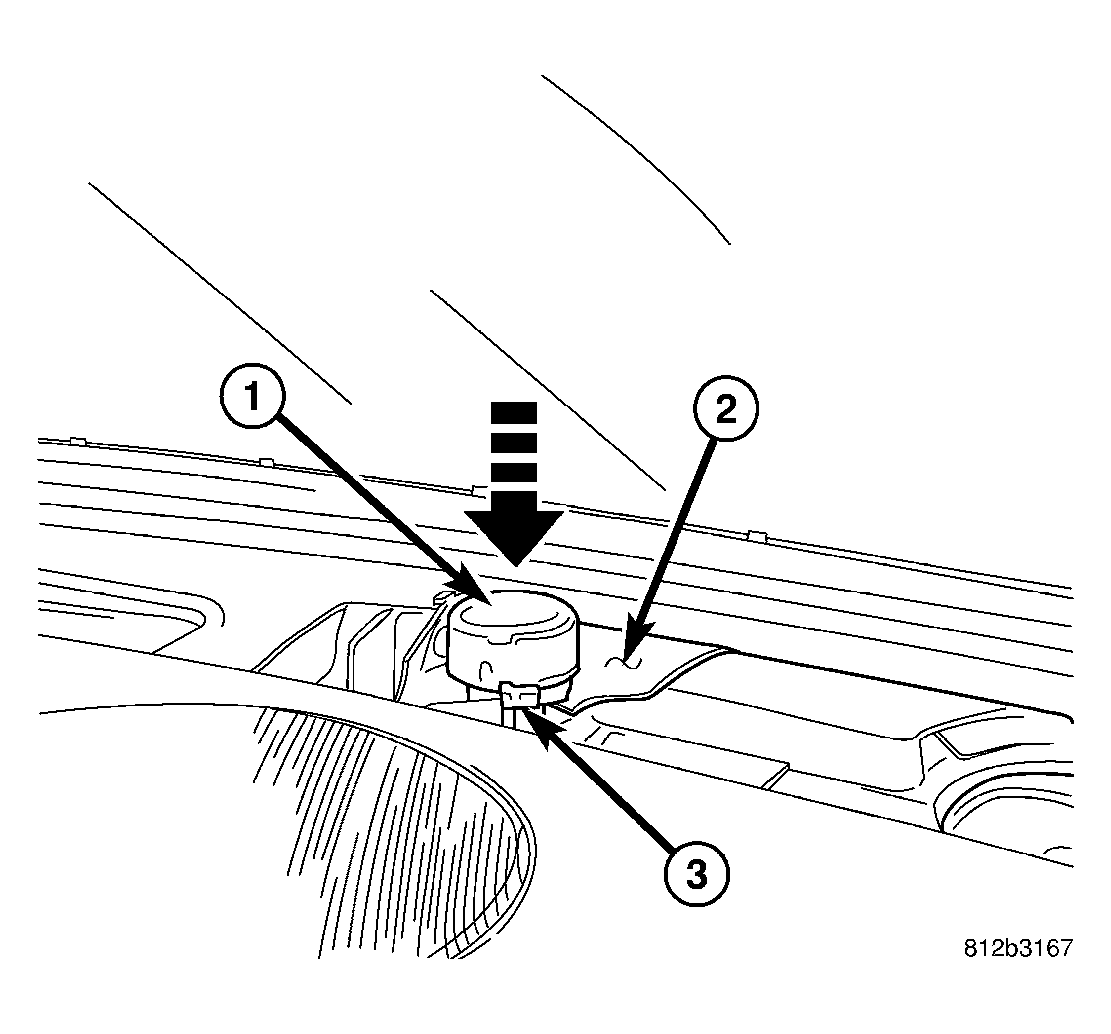

    Fig 2: Installing Sun Sensor
    GC0013943Courtesy of DAIMLERCHRYSLER CORP.
  3. Align the tab on the sun sensor assembly (1) with the opening in the instrument panel (2).
  4. Gently push the sun sensor assembly into the instrument panel until the sensor snap clip retainers (3) are securely engaged.
  5. Install the defroster grille (Refer to BODY/INSTRUMENT PANEL/DEFROSTER GRILLE - INSTALLATION) .
  6. Reconnect the negative battery cable.
