Mount - Rear: Installation

WARNING: This page is about a different variant/trim than selected.

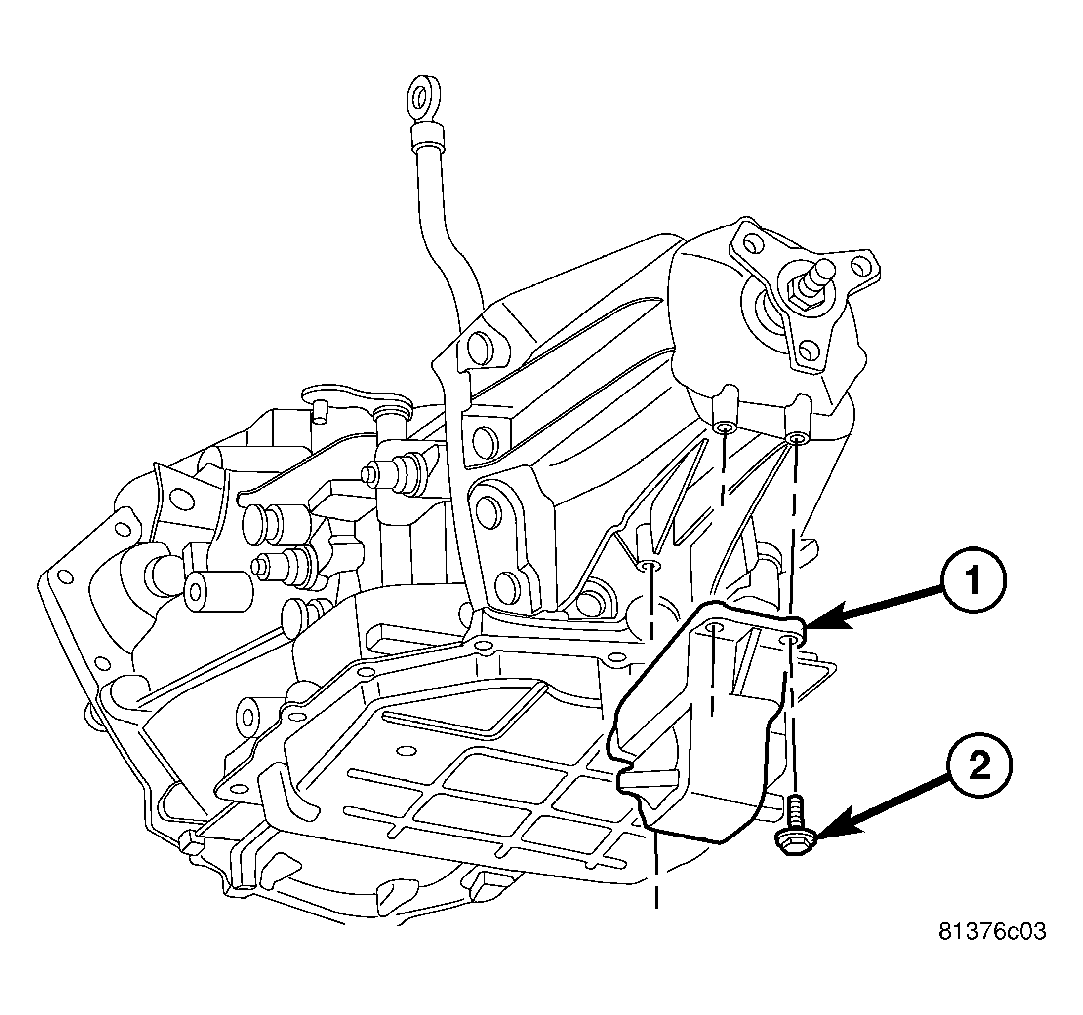

Fig 1: Removing Trans Mount Bolts
GC0015436Courtesy of CHRYSLER LLC
  1. Install mount to transmission bolts (2) and tighten to 47 N.m (35 ft.lbs.).

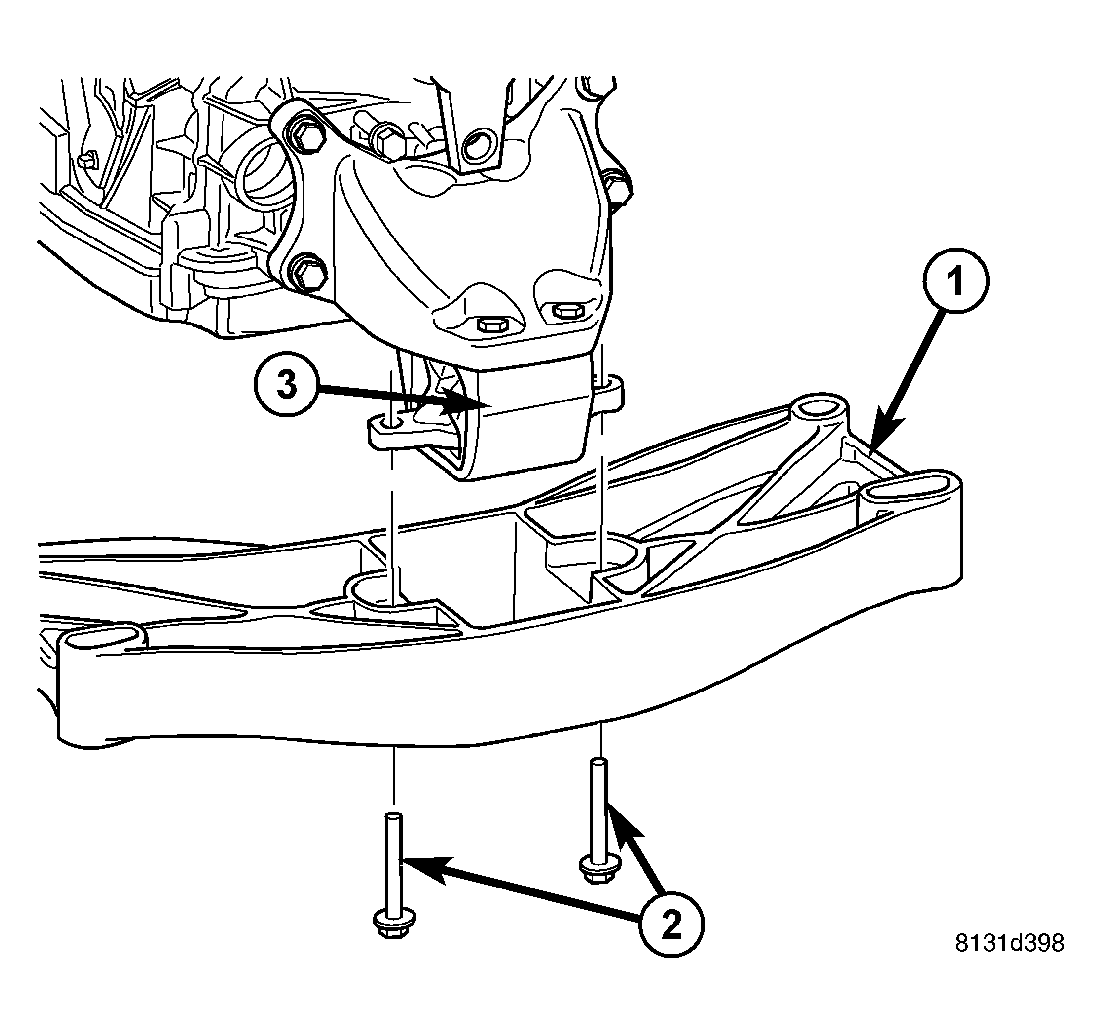

    Fig 2: Removing Trans Cross Member Bolts
    GC0015435Courtesy of CHRYSLER LLC
  2. Install cross member (1) and attaching bolts. Tighten bolts to 68 N.m (50 ft.lbs.).
  3. Lower transmission so cross member to mount bolts (2) can be started tightened by hand.
  4. Lower transmission and remove jack.
  5. Tighten mount bolts (2) to 47 N.m (39 ft.lbs.).
