Engine Block: FLEXPLATE: Installation
WARNING: This page is about a different variant/trim than selected.

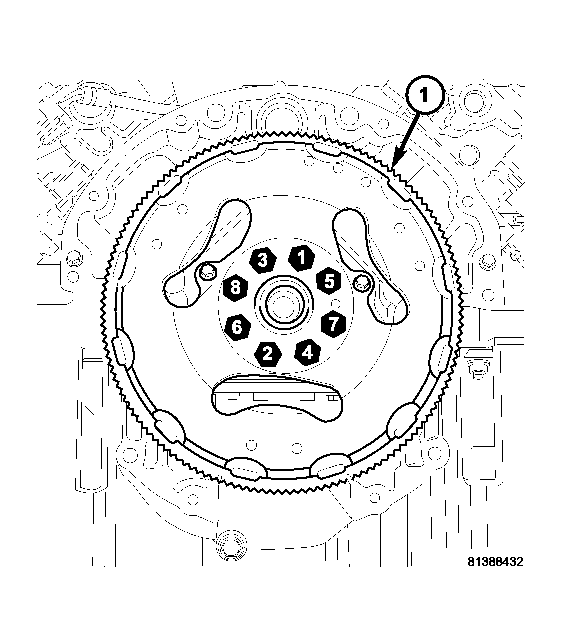

| 1 - Flexplate |
- Position the flexplate or flywheel onto the crankshaft and install the bolts hand tight.
- For automatic transmissions: Tighten the flexplate retaining bolts to 95 N.m (70 ft. lbs.).
- Install the transmission. Refer to INSTALLATION .
