Engine Mounting - Front: Installation

WARNING: This page is about a different variant/trim than selected.

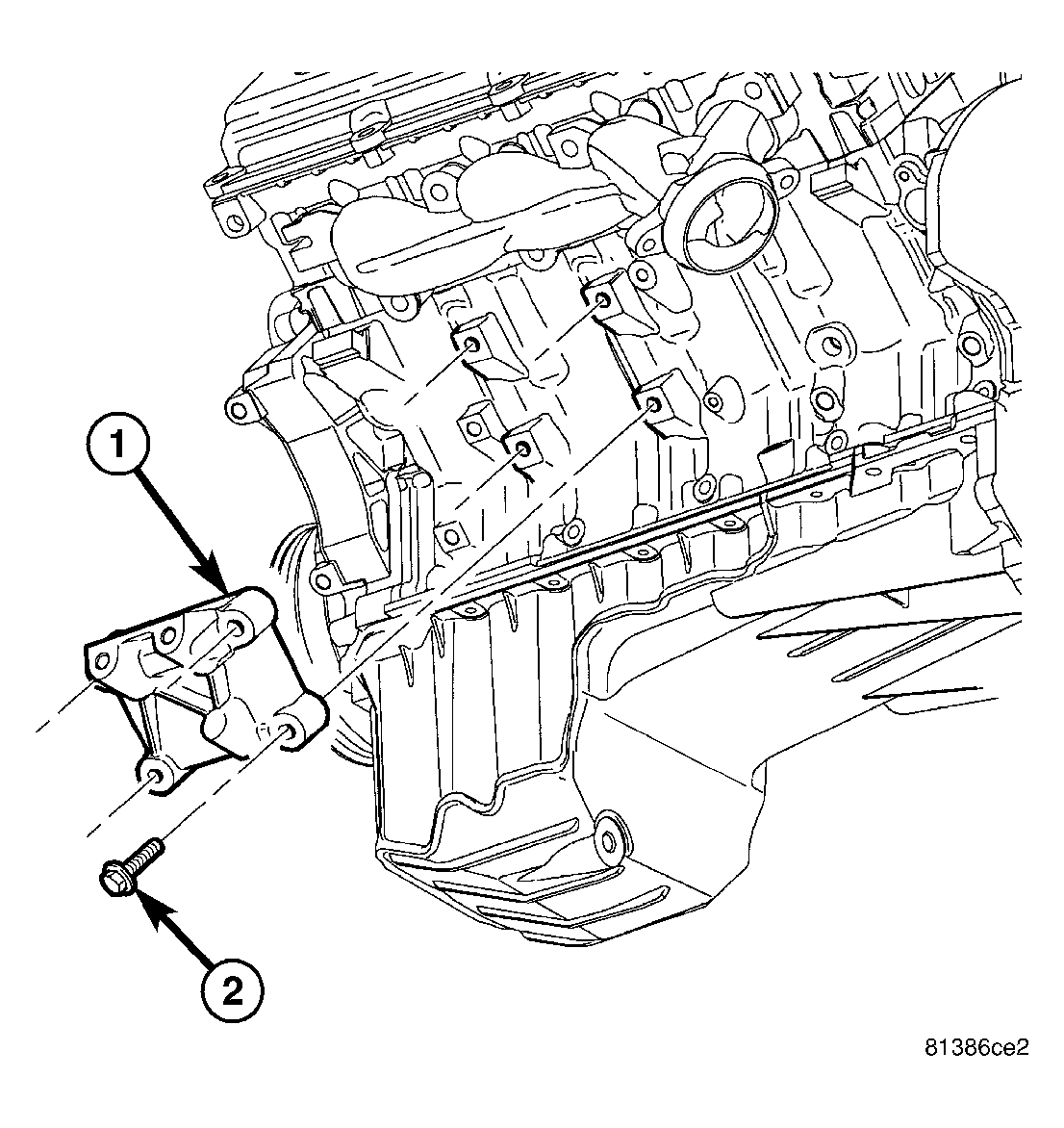

Fig 1: Engine Mount Bracket LH
GC0040445Courtesy of CHRYSLER LLC
1 - Engine Mount Bracket
2 - Bolt

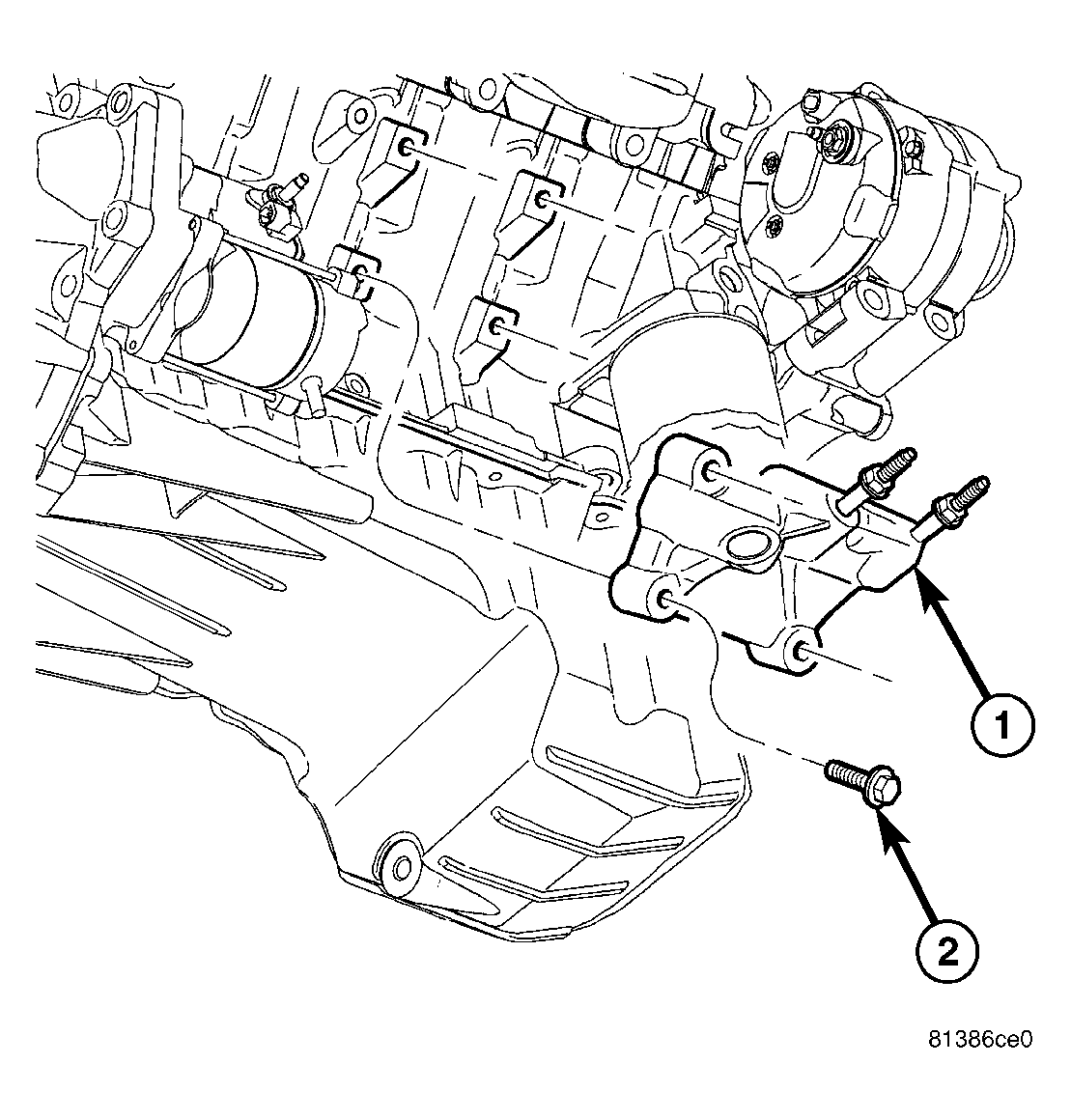

Fig 2: Engine Mount Bracket RH
GC0040444Courtesy of CHRYSLER LLC
1 - Engine Mount Bracket
2 - Bolt
  1. Install the engine mount brackets (1), if removed.

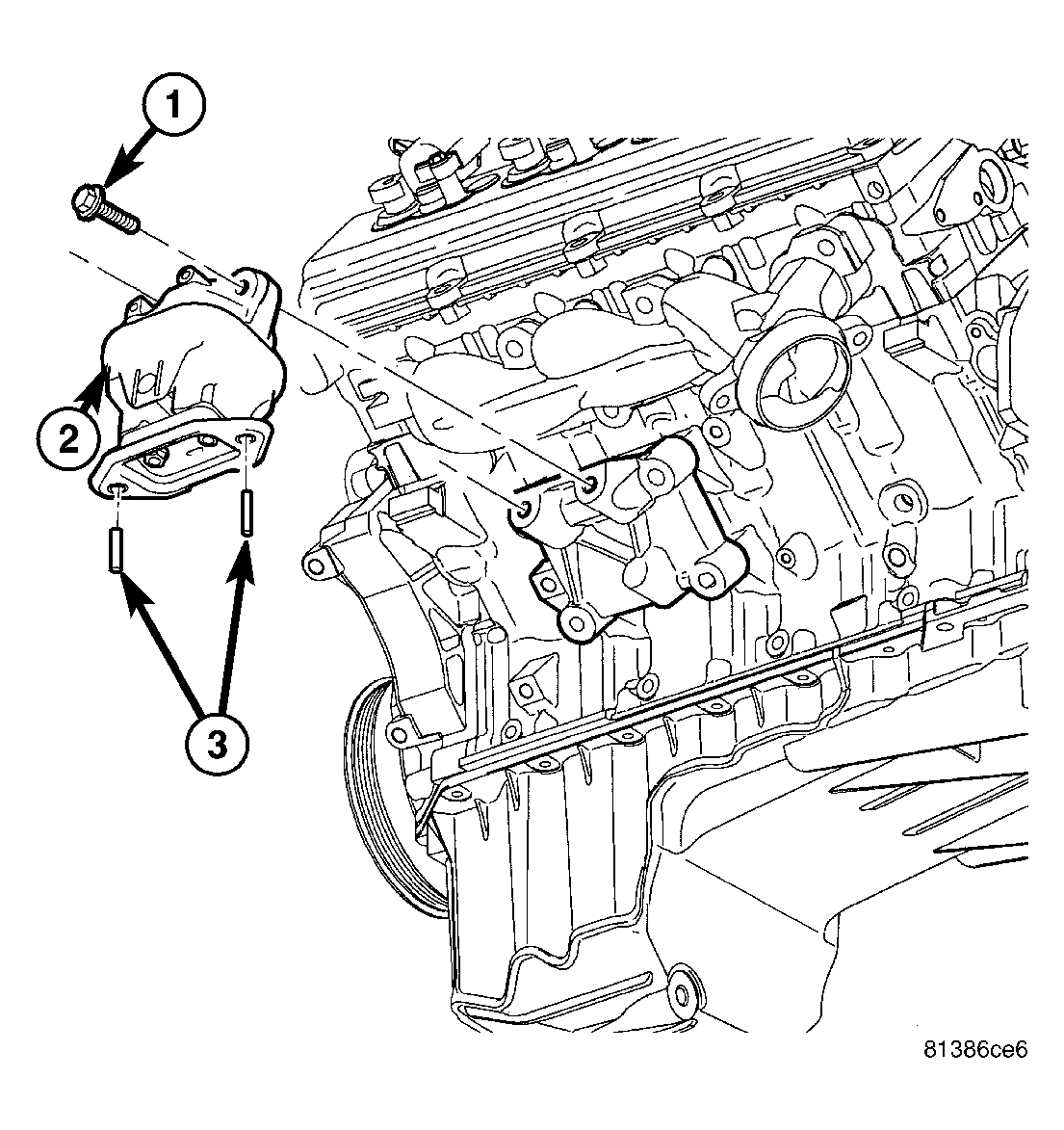

    Fig 3: Engine Hydromount LH
    GC0040447Courtesy of CHRYSLER LLC
    1 - Bolt
    2 - Hydromount
    3 - Studs

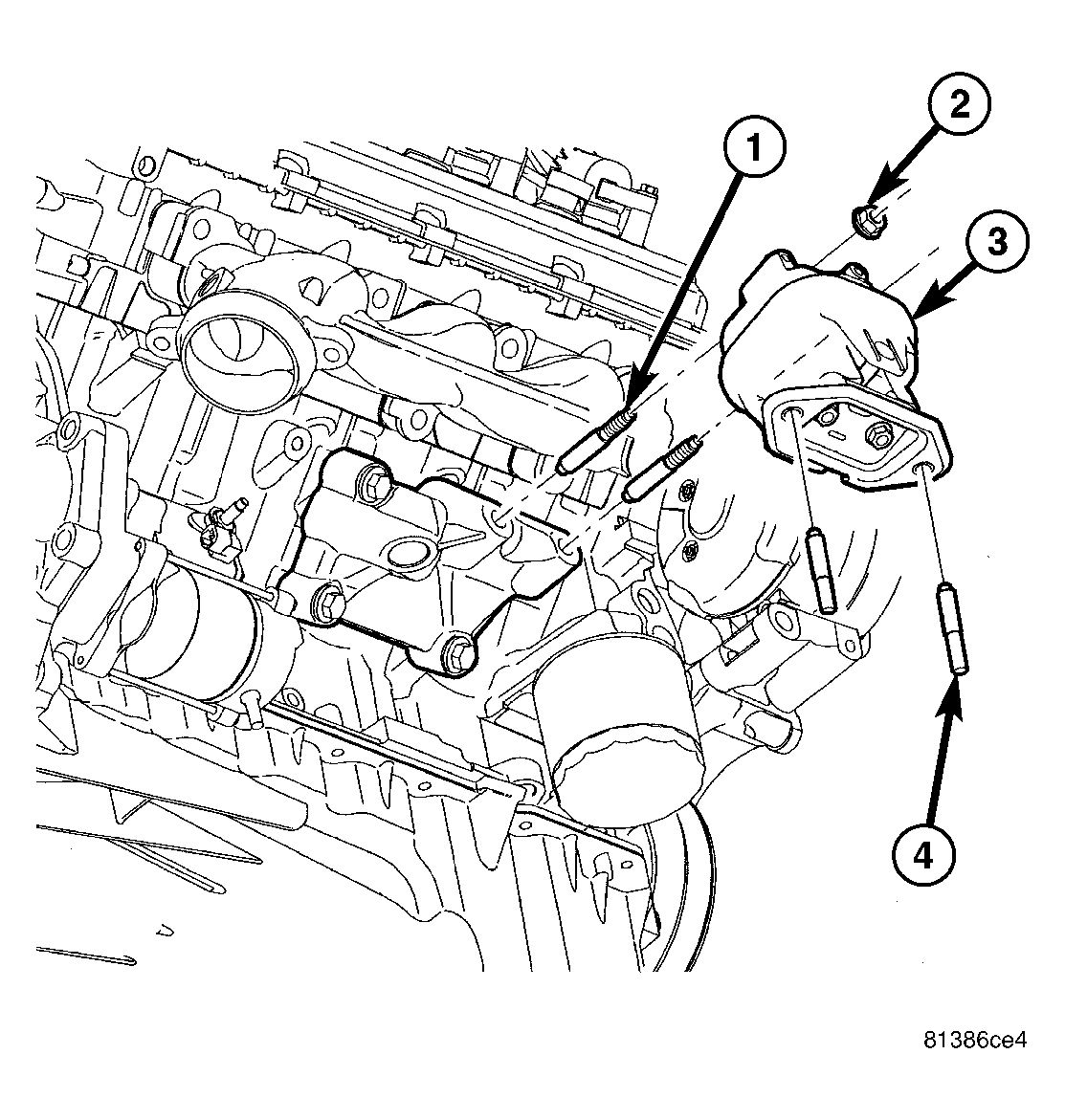

    Fig 4: Engine Hydromount RH
    GC0040446Courtesy of CHRYSLER LLC
    1 - Studs
    2 - Nut
    3 - Hydromount
    4 - Studs
  2. Install hydromount (3) on the engine. Tighten hydromount to bracket fasteners.
  3. Install the studs (3, 1) to the hydromount (2).

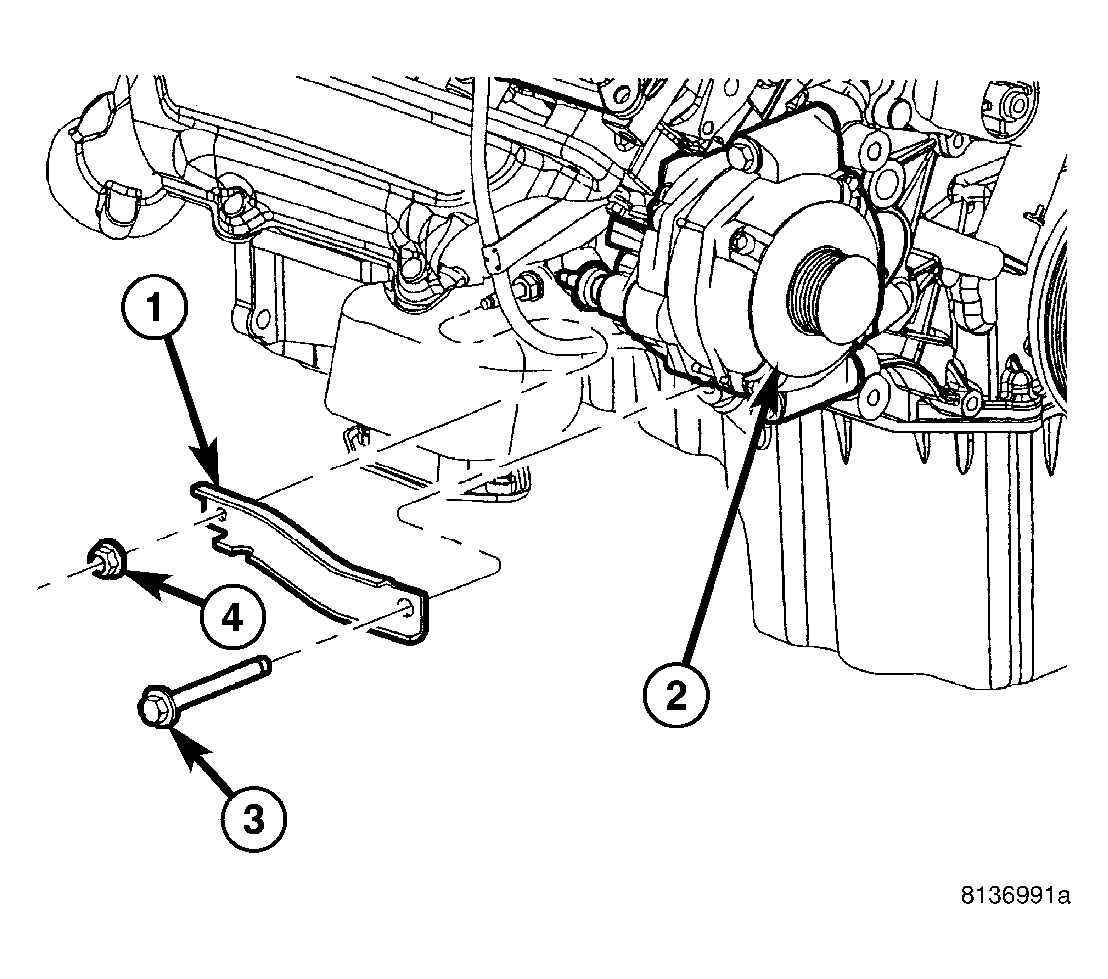

    Fig 5: Generator Support Bracket
    GC0040448Courtesy of CHRYSLER LLC
  4. Install the generator support bracket (1).
  5. Lower the engine.
    Fig 6: Engine Hydromount LH
    GC0040447Courtesy of CHRYSLER LLC
    1 - Bolt
    2 - Hydromount
    3 - Studs
    Fig 7: Engine Hydromount RH
    GC0040446Courtesy of CHRYSLER LLC
    1 - Studs
    2 - Nut
    3 - Hydromount
    4 - Studs
  6. Install the nuts on the studs (3, 4), and tighten.
  7. Lower vehicle.
  8. Connect negative battery cable.
