Installation - Engine

WARNING: This page is about a different variant/trim than selected.

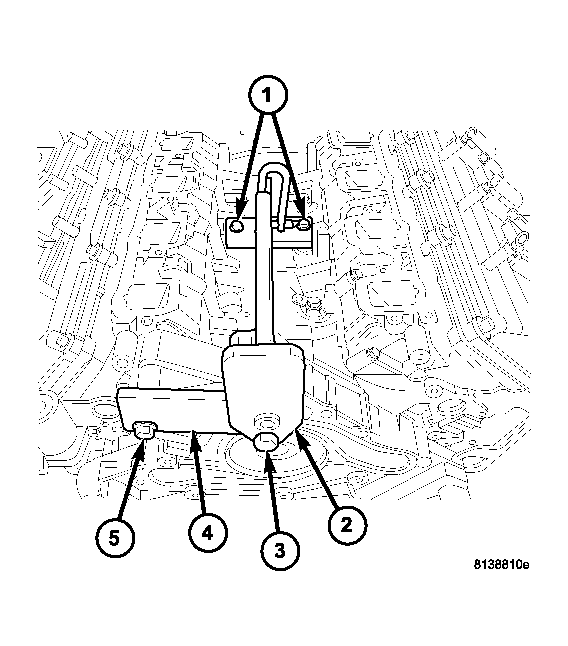

Fig 1: Engine Lift Fixture And Adapter
GC0040323Courtesy of CHRYSLER LLC
1 - Bolts
2 - Engine Lift Fixture
3 - Adapter Bolt
4 - Adapter
5 - Adapter Nut
  1. Install engine lift fixture (2) Special tool # 8984 and 8984-UPD (4).
  2. Position the engine in the engine compartment.
  3. Lower engine into compartment and align engine with transmission.
  4. Mate engine and transmission and install two transmission to engine block mounting bolts finger tight.
  5. Lower engine assembly until engine mount studs rest in frame perches.

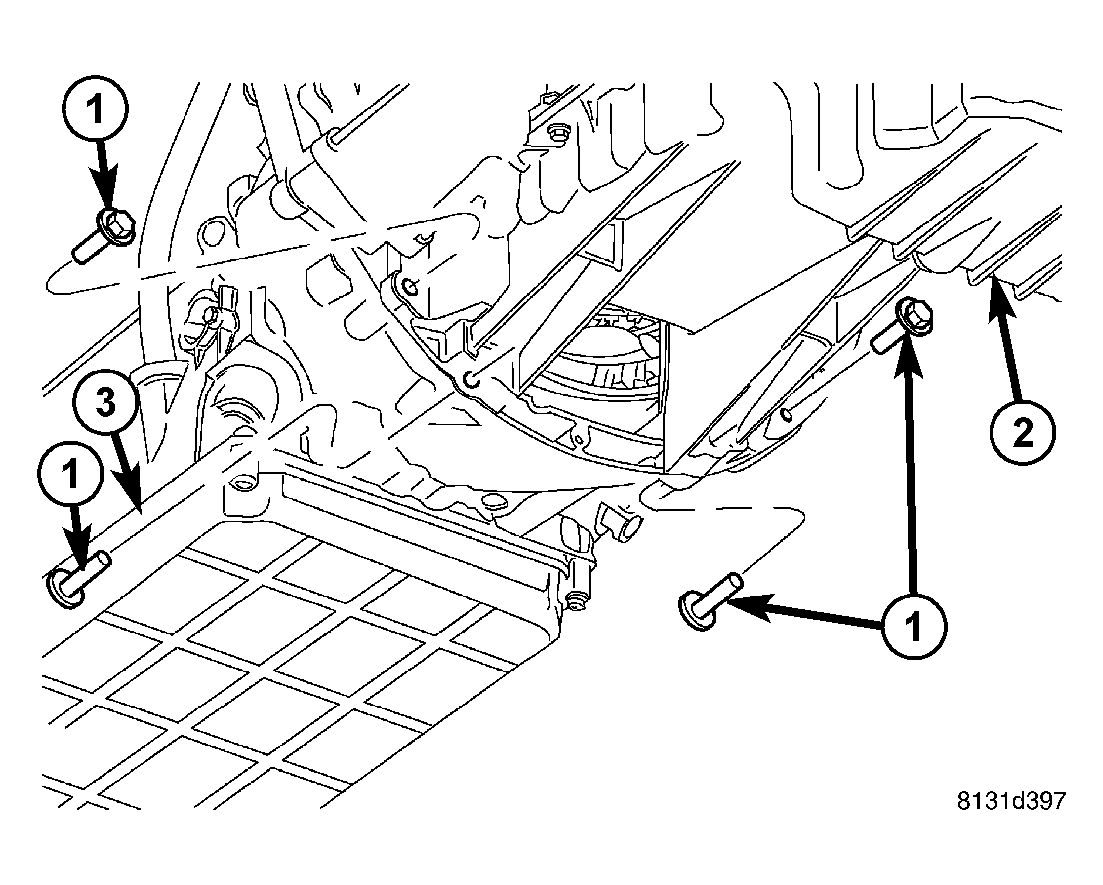

    Fig 2: Remove Transmission To Oil Pan Bolts
    GC0040321Courtesy of CHRYSLER LLC
    1 - BOLTS
    2 - ENGINE OIL PAN
    3 - TRANSMISSION

    Install transmission to oil pan bolts (1). Refer to INSTALLATION .

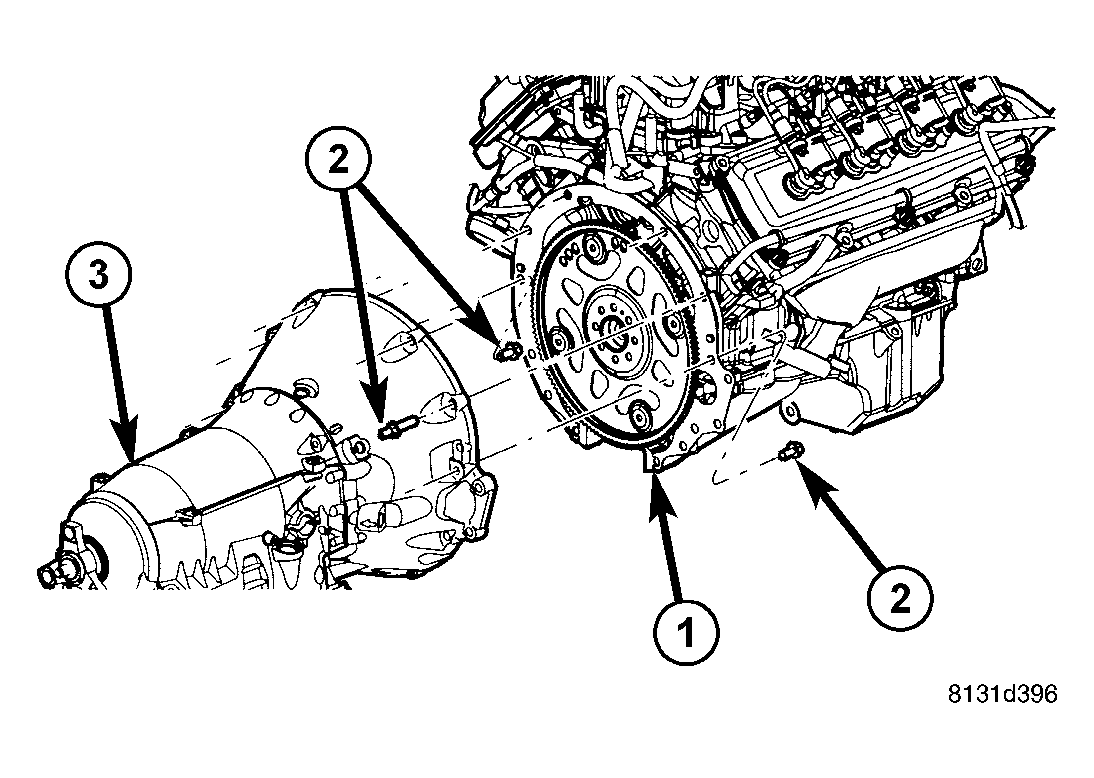

    Fig 3: Remove Transmission to Engine Bolts
    GC0040320Courtesy of CHRYSLER LLC
    1 - ENGINE
    2 - BOLTS
    3 - TRANSMISSION
  6. Install remaining transmission to engine block mounting bolts (1, 2) and tighten. Refer to INSTALLATION .
  7. Install and tighten engine mount to frame nuts. Refer to ENGINE MOUNTING .

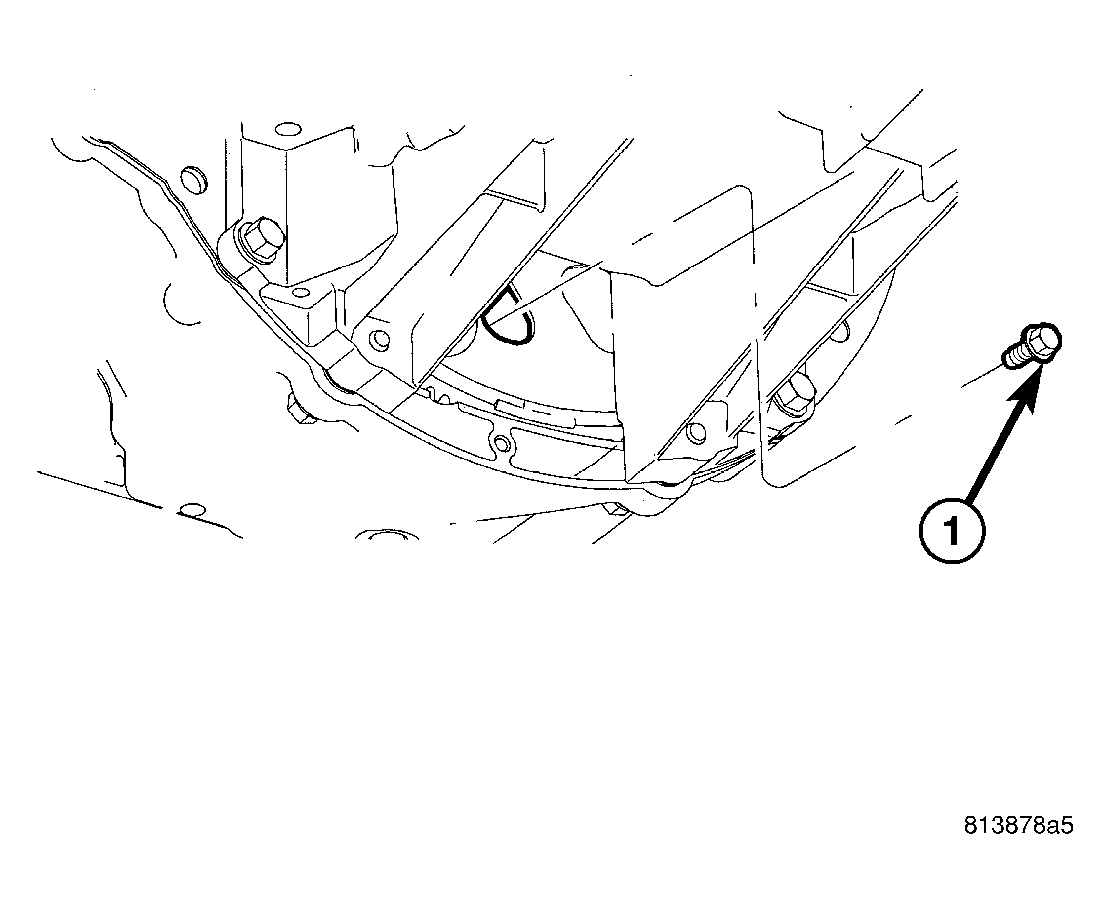

    Fig 4: Torque Converter Bolts
    GC0040319Courtesy of CHRYSLER LLC
    1 - Bolts
  8. Install drive plate to torque converter bolts (1). Refer to INSTALLATION .

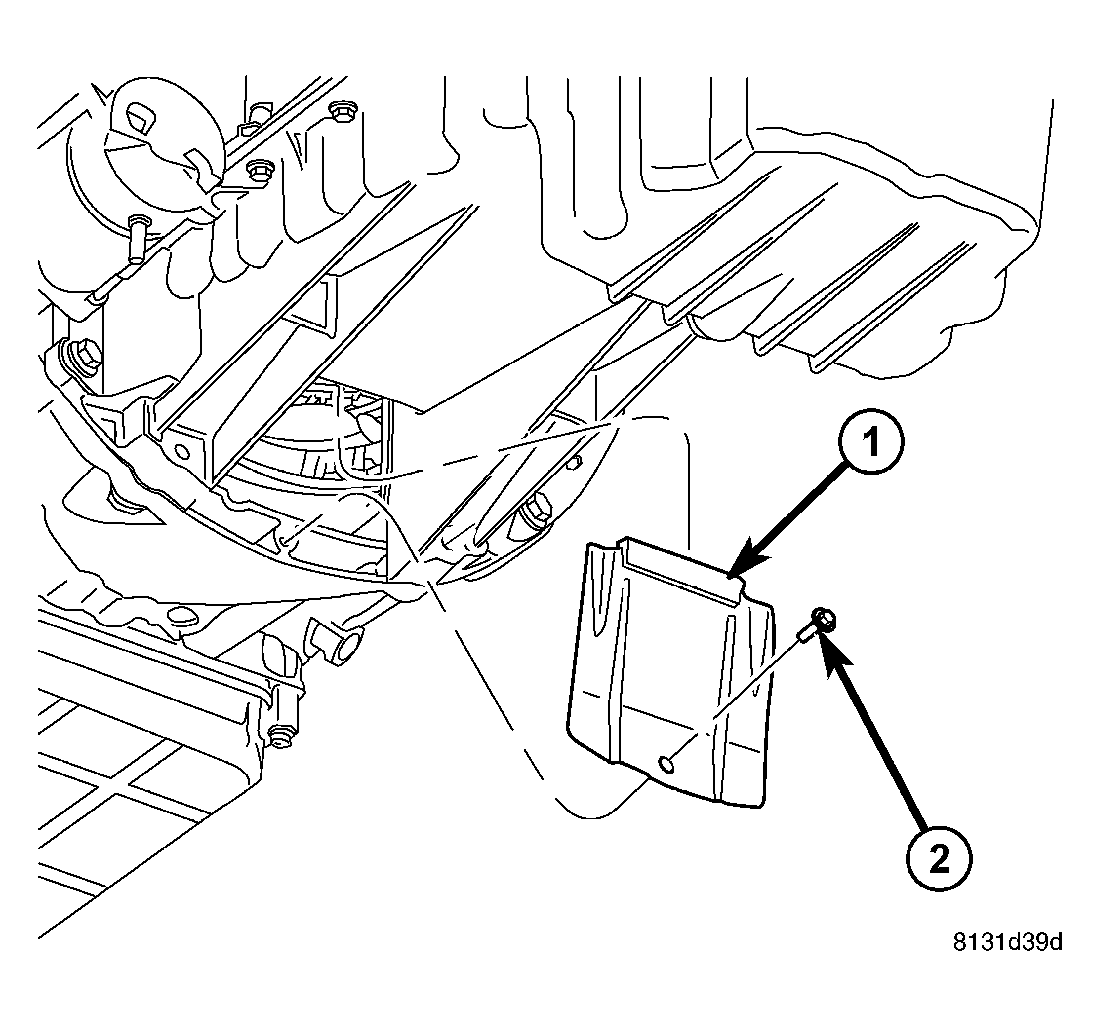

    Fig 5: Remove Torque Converter Access Cover
    GC0040322Courtesy of CHRYSLER LLC
    1 - ACCESS COVER
    2 - BOLT
  9. Install the torque convertor access cover (1). Refer to INSTALLATION .

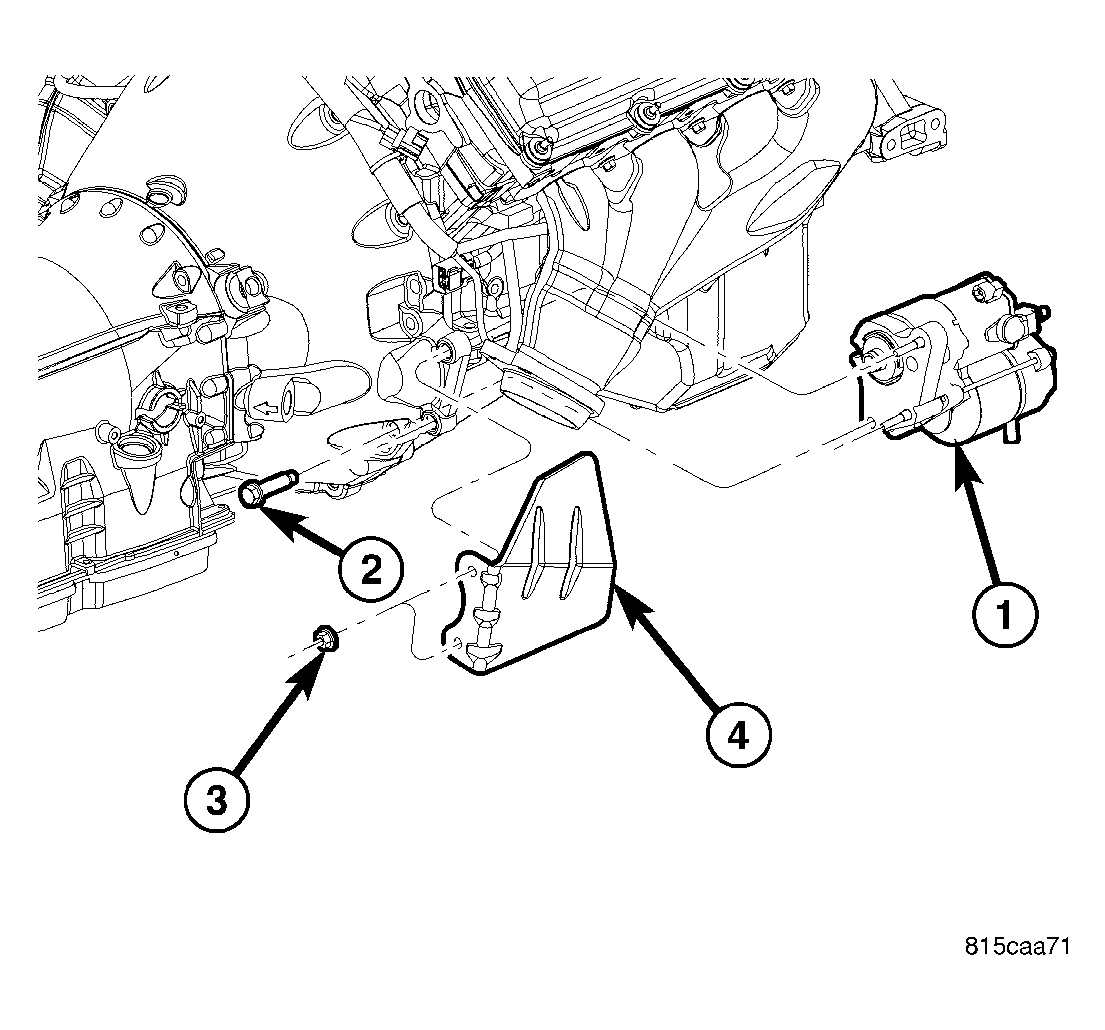

    Fig 6: Starter R+I
    GC0040318Courtesy of CHRYSLER LLC
    1 - STARTER
    2 - BOLT
    3 - NUT
    4 - HEAT SHIELD
  10. Install the starter (1) and heat shield (4) and connect the starter wires. Refer to INSTALLATION .
  11. Install exhaust pipe to manifold. Refer to INSTALLATION .
  12. Lower the vehicle.
    Fig 7: Engine Lift Fixture And Adapter
    GC0040323Courtesy of CHRYSLER LLC
    1 - Bolts
    2 - Engine Lift Fixture
    3 - Adapter Bolt
    4 - Adapter
    5 - Adapter Nut
  13. Remove engine lift fixture (2), special tool # 8984 and 8984-UPD (4).
  14. Reinstall the left coolant tube.
  15. Reinstall the left and right side wiring harness.
  16. Reinstall both knock sensors.
  17. Reinstall the cam position sensor.

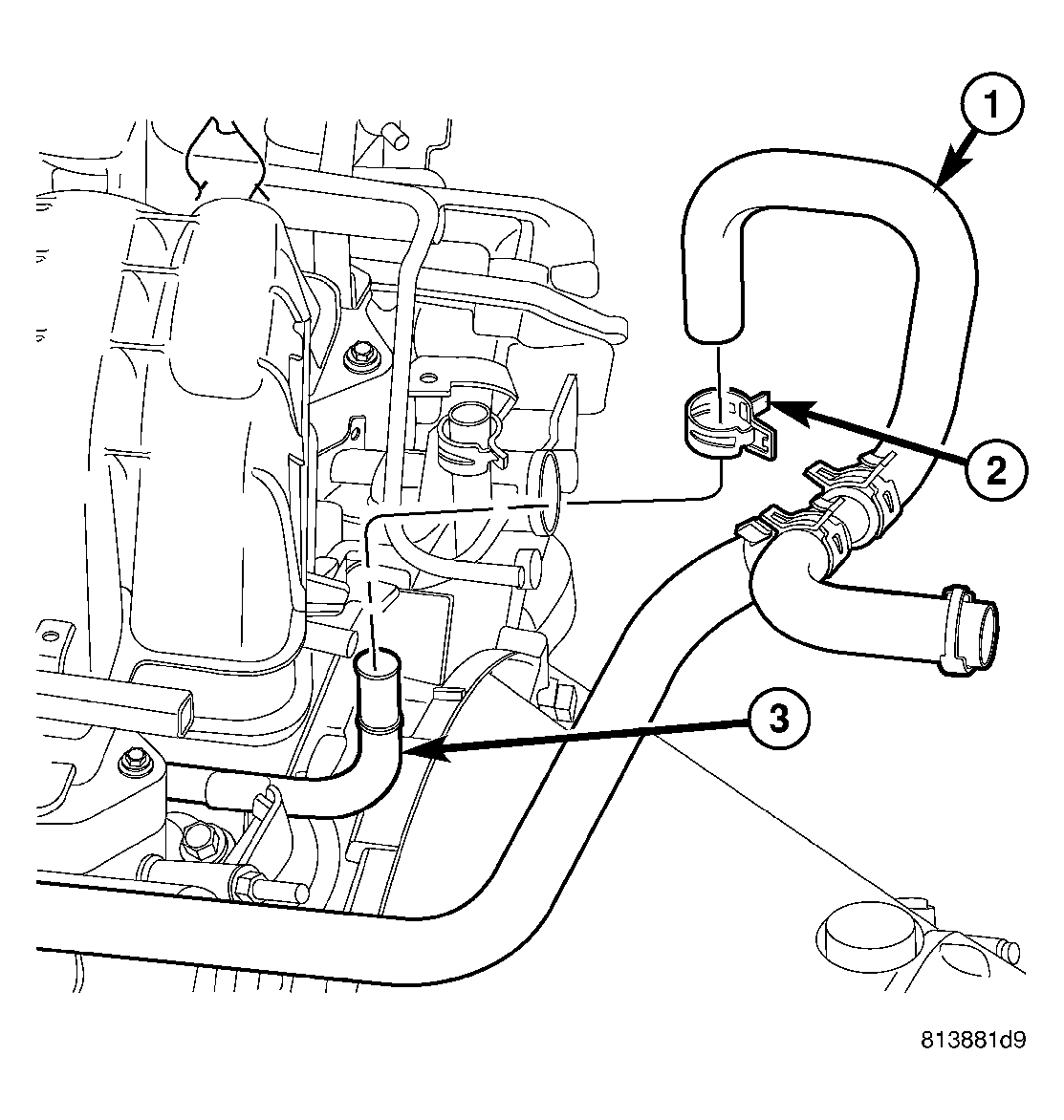

    Fig 8: Heater Hose Return
    GC0040324Courtesy of CHRYSLER LLC
    1 - Heater Hose
    2 - Clamp
    3 - Tube
  18. Connect the left heater hose (1).

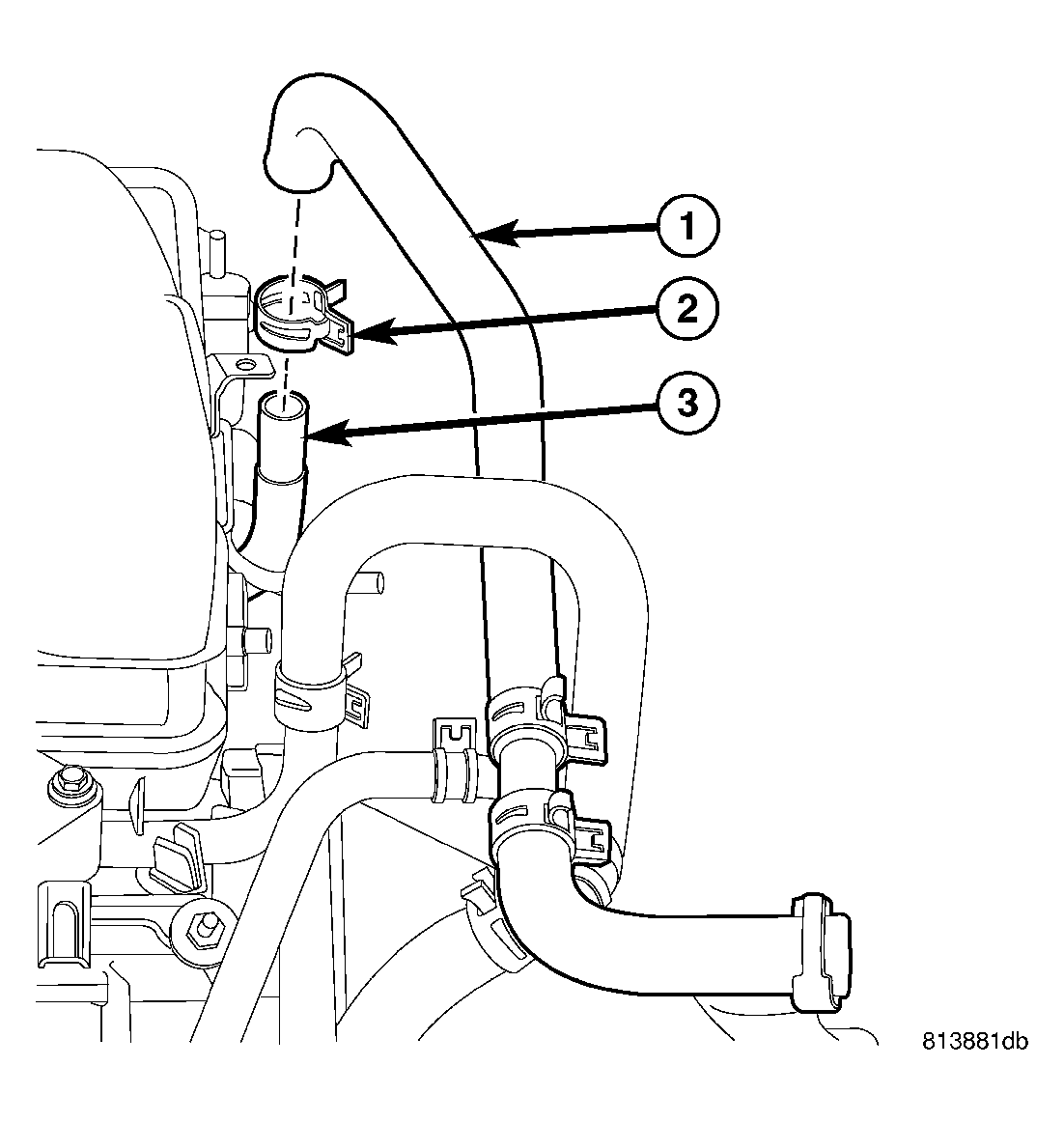

    Fig 9: Heater Hose Supply
    GC0040325Courtesy of CHRYSLER LLC
    1 - Heater Hose
    2 - Clamp
    3 - Tube
  19. Connect the right heater hose (1).
  20. Reconnect the ground wires to the rear of each cylinder head.
  21. Reconnect the oil temperature sensor.
  22. Reconnect the oil pressure sensor.
  23. Reinstall the power steering pump.
  24. Install the intake manifold. Refer to MANIFOLD - INTAKE .
  25. Connect the fuel supply line. Refer to STANDARD PROCEDURE .

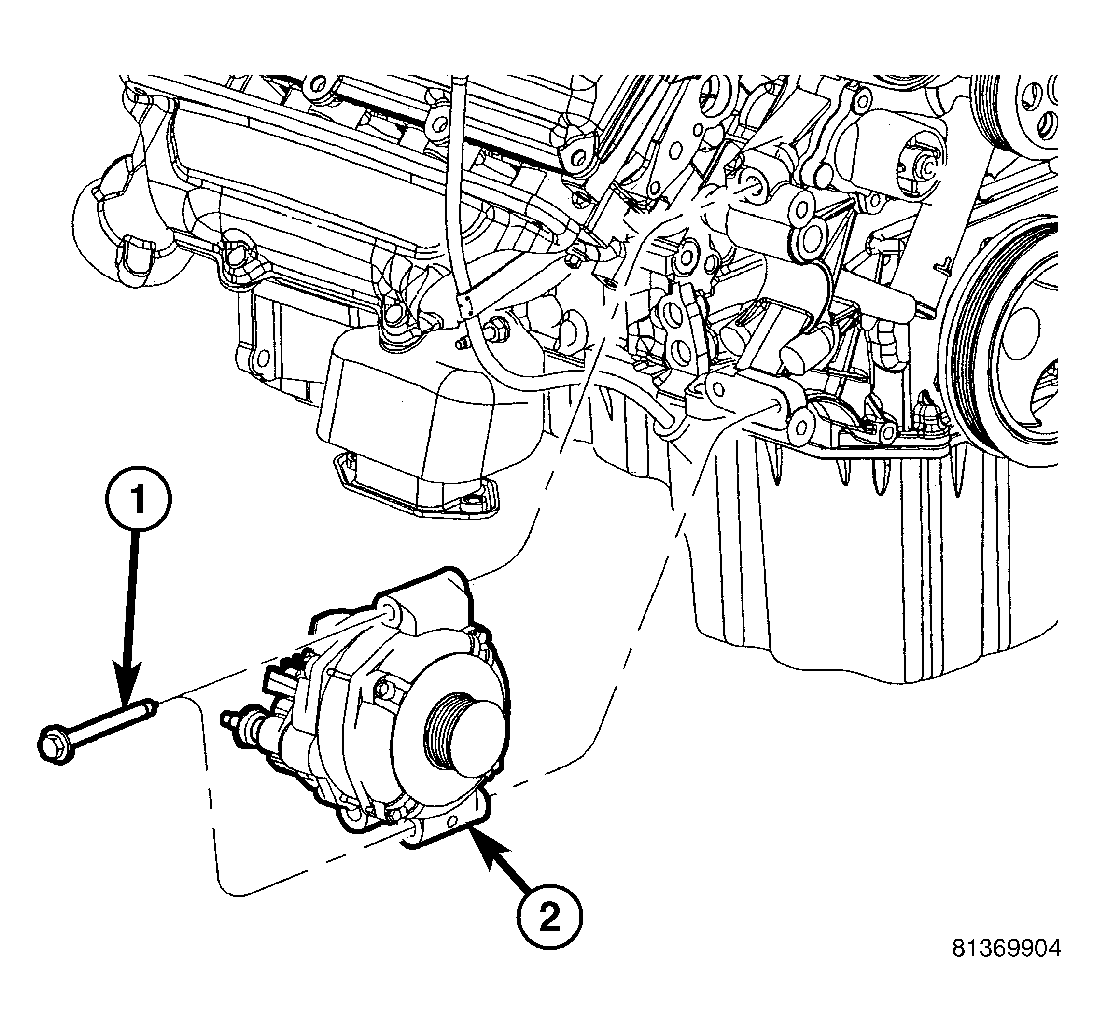

    Fig 10: Generator
    GC0040327Courtesy of CHRYSLER LLC
  26. Install the generator (2), and wire connections. Refer to INSTALLATION .

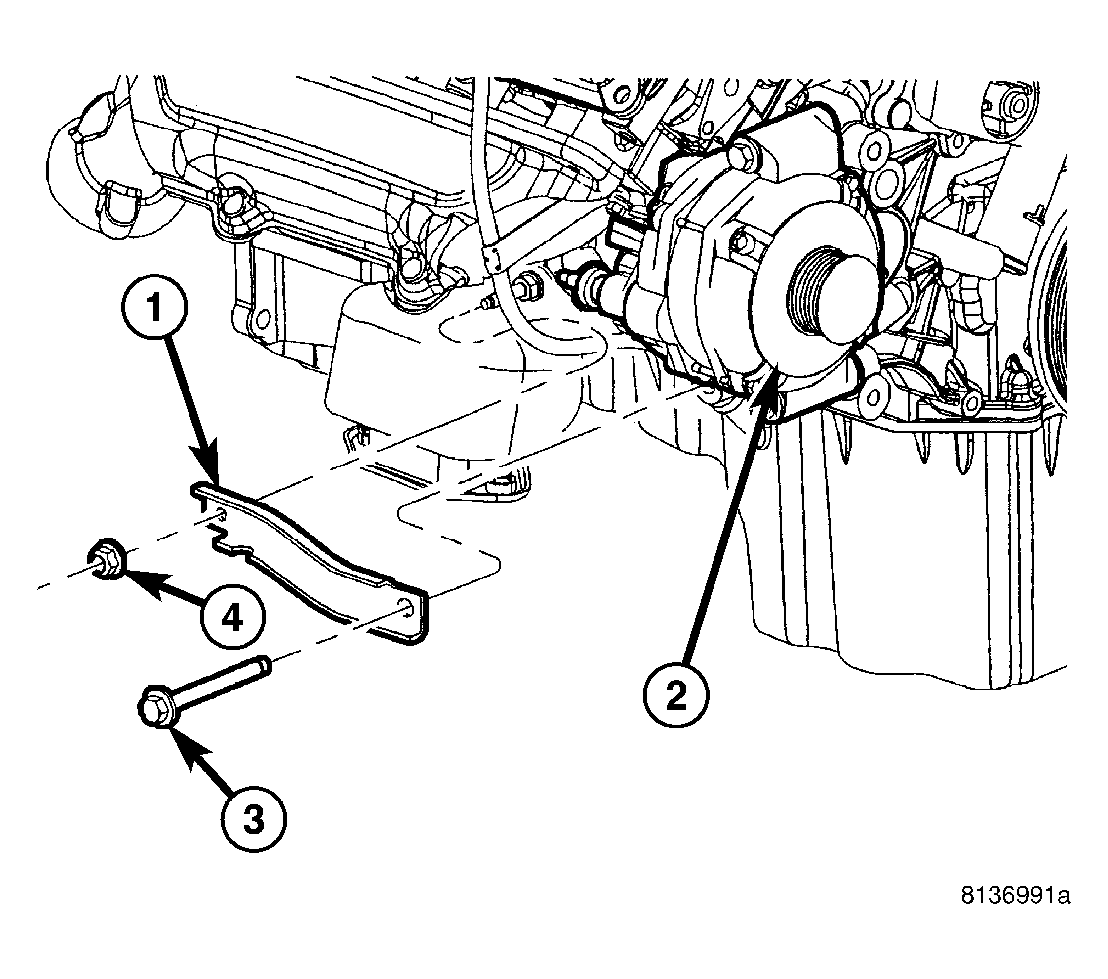

    Fig 11: Generator Support Bracket
    GC0040328Courtesy of CHRYSLER LLC
  27. Install the generator support bracket (1). Refer to INSTALLATION .

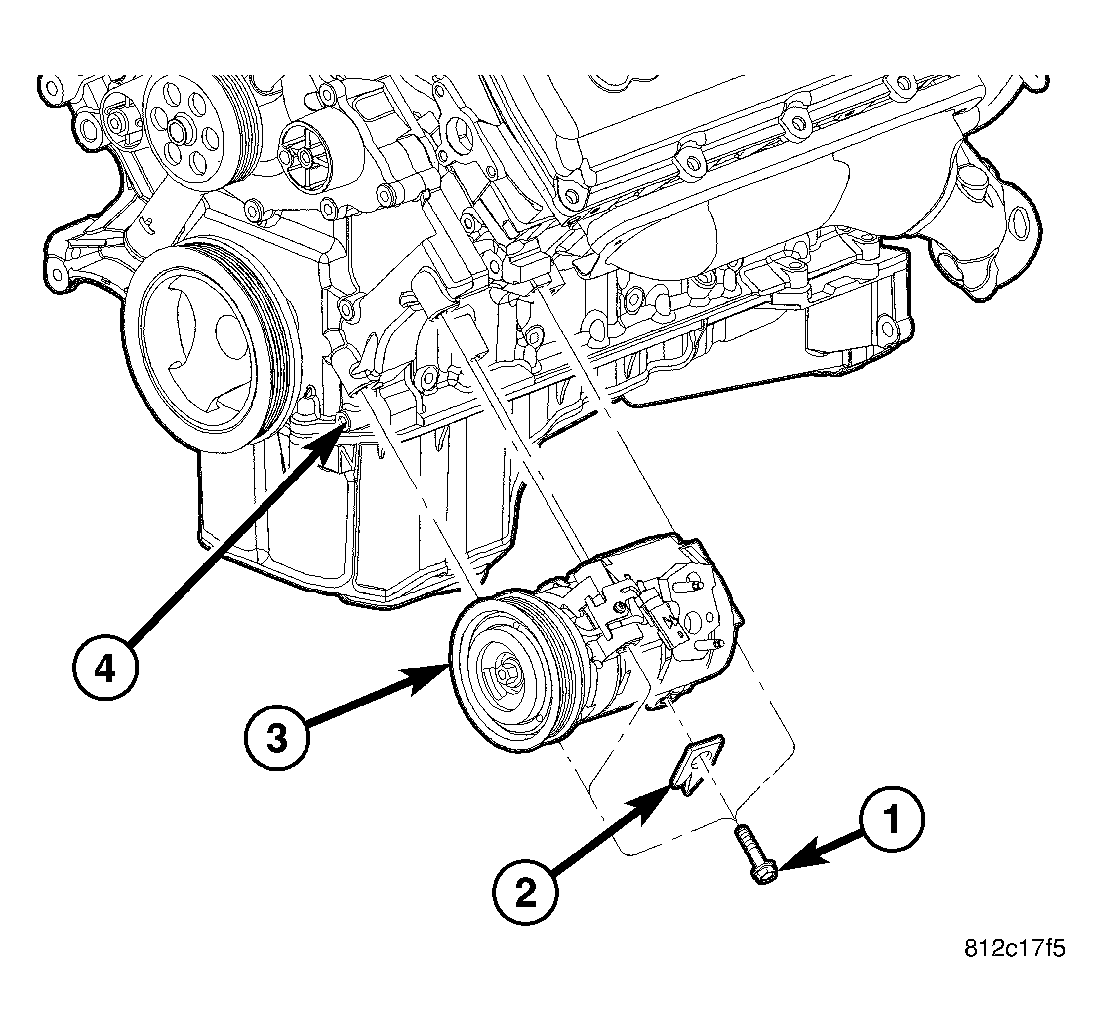

    Fig 12: Locating A/C Compressor
    GC0040326Courtesy of CHRYSLER LLC
  28. Install a/c compressor (3). Refer to 5.7L/6.1L ENGINES .
  29. Reinstall the A/C suction line. Refer to INSTALLATION .
  30. Reinstall the A/C liquid line. Refer to INSTALLATION .
  31. Reinstall the A/C discharge line at the compressor. Refer to INSTALLATION .
    Fig 13: Engine Accessory Drive Belt
    GC0052756Courtesy of CHRYSLER LLC
    1 - IDLER PULLEY
    2 - WATER PUMP
    3 - P/S PUMP
    4 - A/C COMPRESSOR
    5 - CRANKSHAFT
    6 - TENSIONER
    7 - GENERATOR
  32. Reconnect all oxygen sensors.
  33. Reconnect fuel injectors.
  34. Reconnect the MAP sensor.
  35. Reconnect the coolant temp sensor.
  36. Reconnect the crank position sensor.
  37. Reconnect the ignition coils.
  38. Reconnect the diode connector and ground.
  39. Install the accessory drive belt. Refer to INSTALLATION .
  40. Install the radiator fan. Refer to INSTALLATION .
  41. Connect the upper and radiator lower hose.
  42. Connect the transmission oil cooler lines to the radiator.
    Fig 14: Removing/Installing Engine Covers
    GC0040317Courtesy of CHRYSLER LLC
  43. Install cowl top panel. Refer to INSTALLATION .
  44. Install the air cleaner and duct work. Refer to SYSTEM - AIR INTAKE INSTALLATION .
  45. Add engine oil to crankcase. Refer to SPECIFICATIONS .
  46. Install coolant recovery container. Refer to INSTALLATION .
  47. Fill cooling system. Refer to STANDARD PROCEDURE .
  48. Install the engine covers (1).

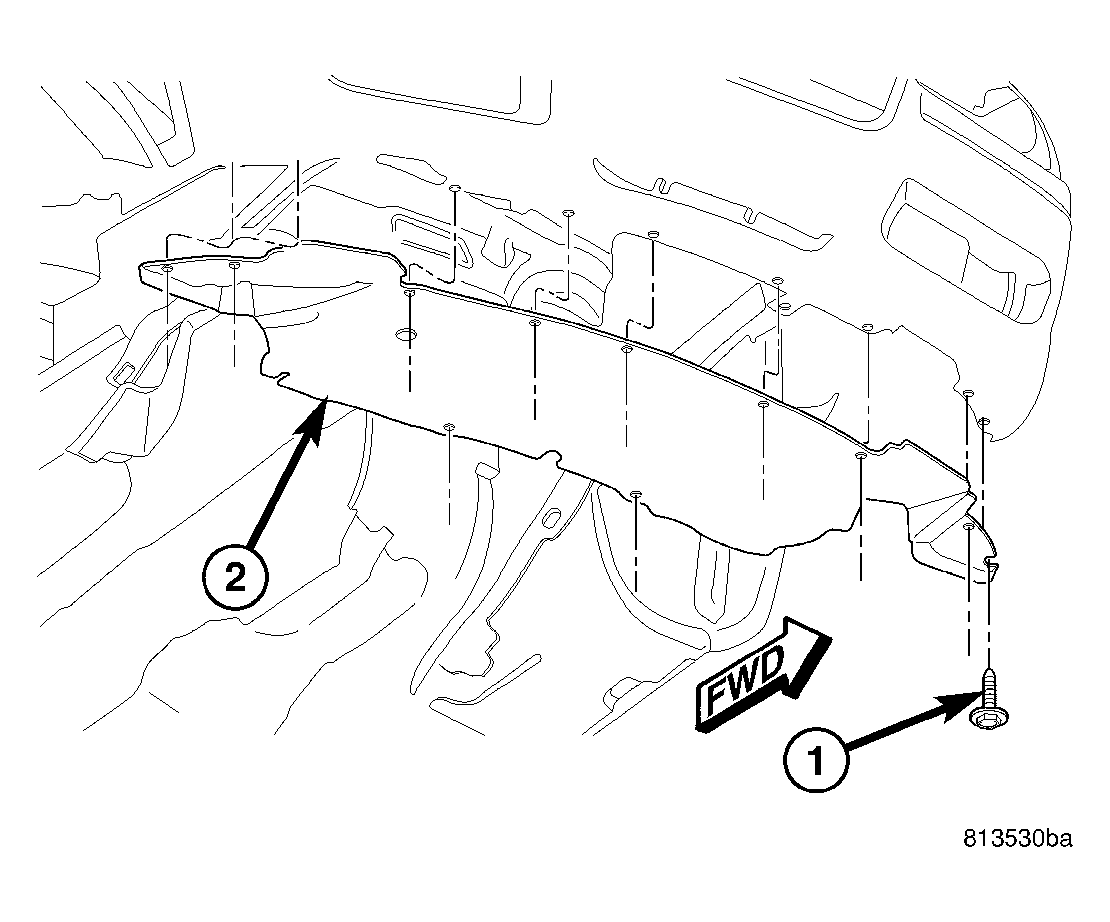

    Fig 15: Front Belly Pan
    GC0040329Courtesy of CHRYSLER LLC
  49. Connect battery negative cable.
  50. Start engine and inspect for leaks.
  51. Install the belly pan (2). Refer to INSTALLATION .
  52. Road test vehicle.
