B148A-Steering Wheel Control Menu Switch Circuit: Notes

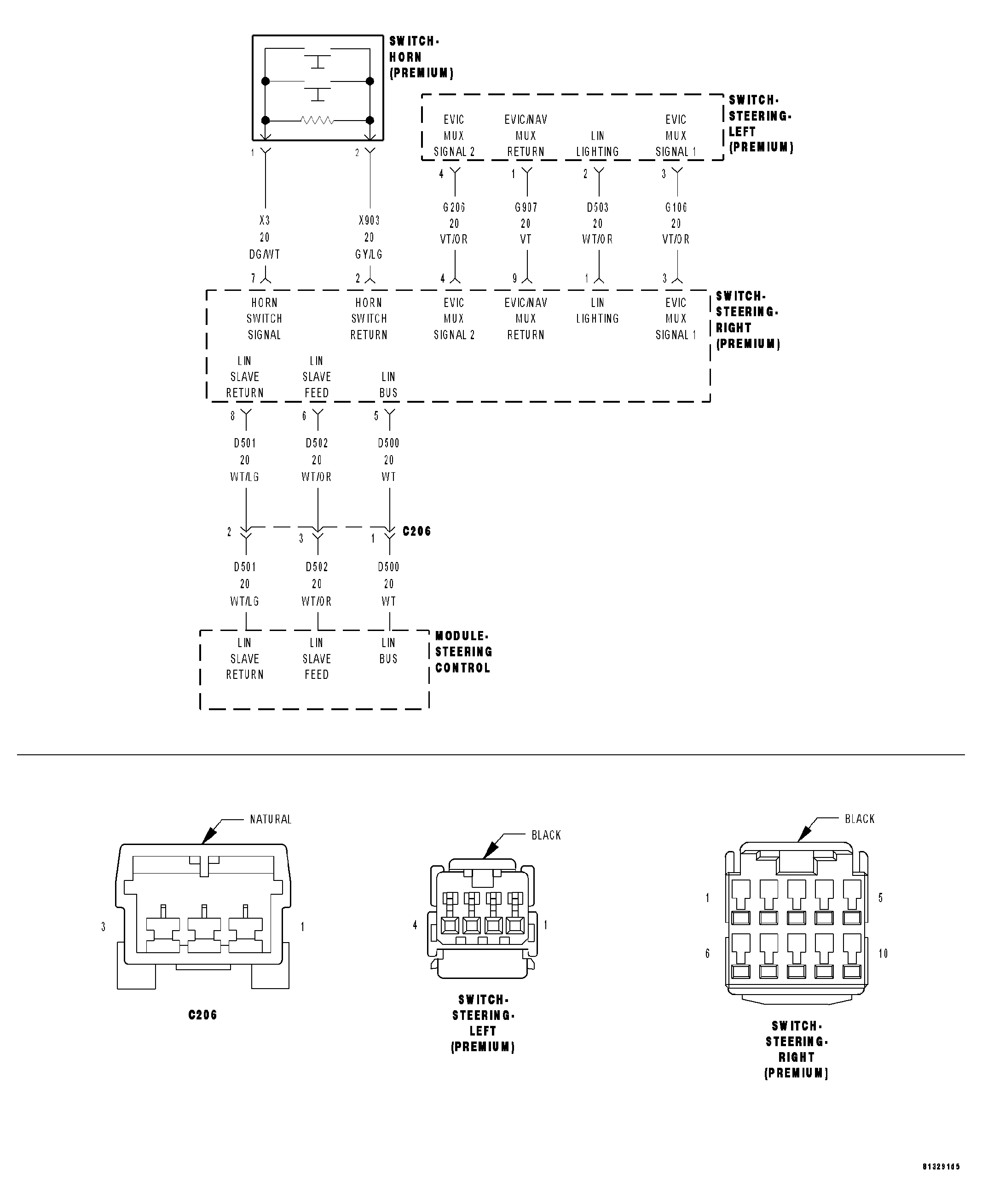

Fig 1: Steering Wheel Control Switch Circuit
GC0013166Courtesy of CHRYSLER LLC
