Shroud-Roll Top: Installation

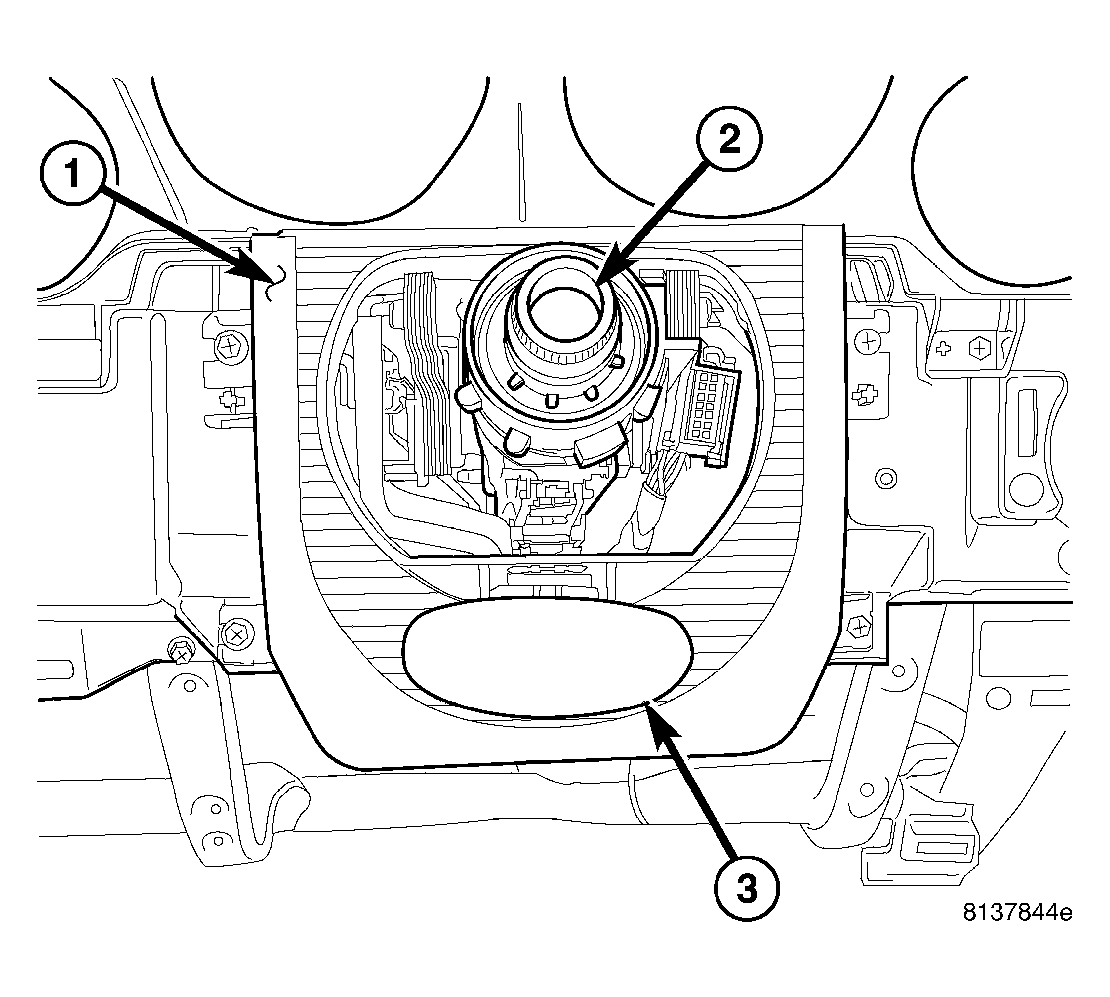

Fig 1: Roll Top Shroud
GC0013272Courtesy of CHRYSLER LLC
  1. Install the roll top shroud (1) over the steering column (2).
    Fig 2: Shroud Screws
    GC0013259Courtesy of CHRYSLER LLC
  2. Install the four (three for column shift column) shroud mounting screws (2).
    Fig 3: Latch Tilt Lever To Column
    GC0039577Courtesy of CHRYSLER LLC
  3. Manual tilt and telescoping columns - Position the manual adjustment handle (2) over the column adjustment pin and rotate the locking tab (3) rearward as shown latching the handle to the column. Make sure the tab snaps into locked position.
  4. Install the cluster bezel (3). Refer to INSTALLATION .

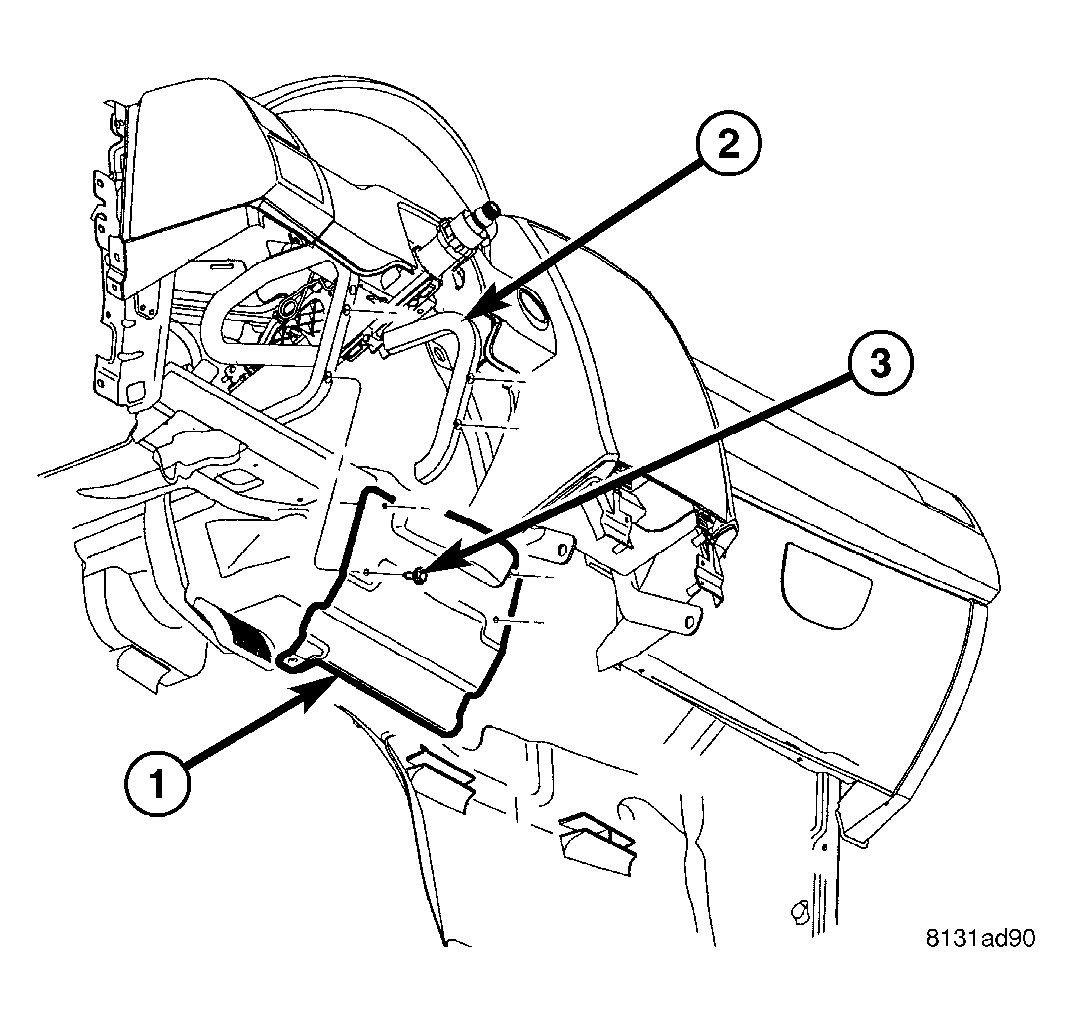

    Fig 4: Reinforcement Instrument Panel Steering Column
    GC0013273Courtesy of CHRYSLER LLC
  5. Install the steering column opening reinforcement (1).
  6. Install the steering column opening cover (1).

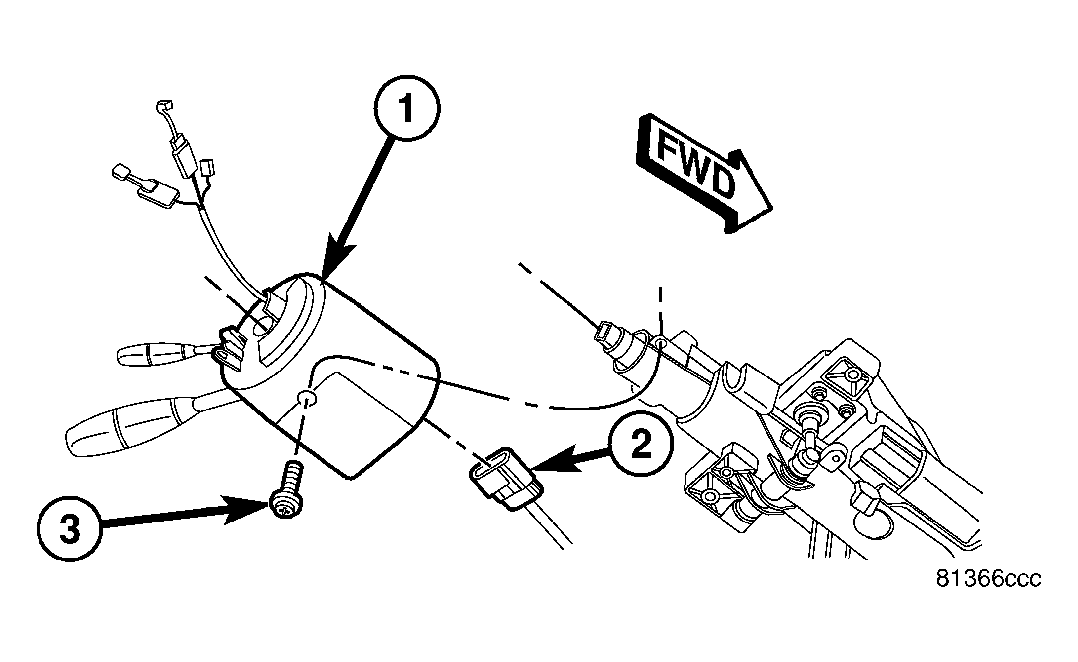

    Fig 5: Removing/Installing SCCM
    GC0013268Courtesy of CHRYSLER LLC
  7. Install the steering column control module (SCCM) (1) and all components removed to access it. See INSTALLATION .
  8. Install the negative battery terminal on the battery. It is important that this is performed properly (including calibration of steering angle sensor if equipped with ESP). Refer to STANDARD PROCEDURE .
  9. Test the operation of the horn, lights and any other functions that are steering column operated.
