Shroud-Roll Top: Removal

WARNING: Before servicing the steering column the airbag system must be disarmed. Refer to electrical restraint system for service procedures. Failure to do so may result in accidental deployment of the airbag and possible personal injury or death.

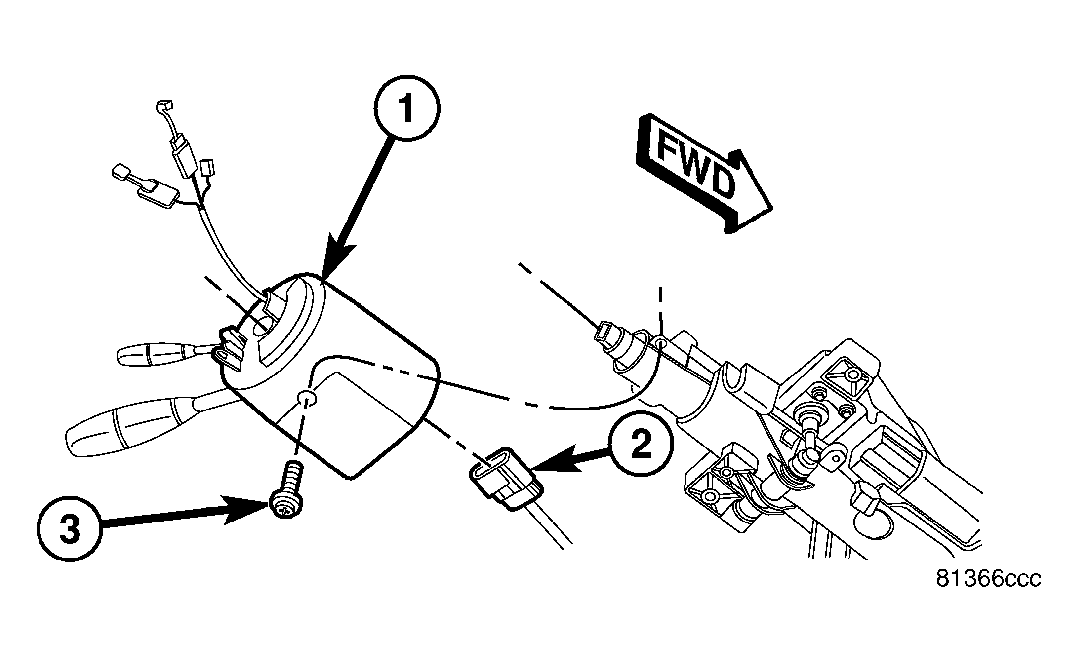

Fig 1: Removing/Installing SCCM
GC0013262Courtesy of CHRYSLER LLC
  1. Access and remove the steering column control module (SCCM) (1) from the column. See REMOVAL .
  2. Remove the steering column opening cover (1). Refer to REMOVAL .

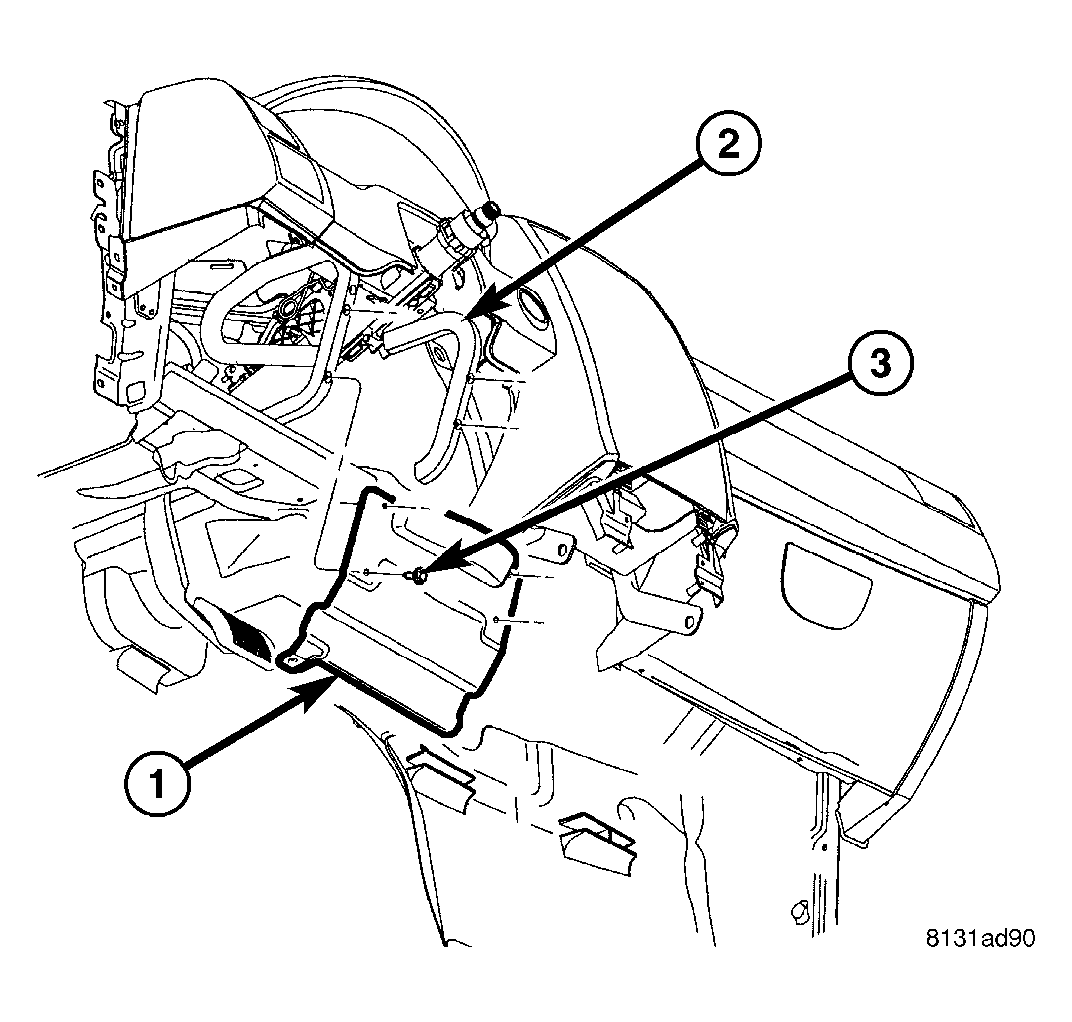

    Fig 2: Reinforcement Instrument Panel Steering Column
    GC0013265Courtesy of CHRYSLER LLC
  3. Remove the steering column opening reinforcement (1).
  4. Remove the cluster bezel. Refer to REMOVAL .
    Fig 3: Unlatching Tilt Lever From Column
    GC0039575Courtesy of CHRYSLER LLC
  5. Manual tilt and telescoping columns - Unsnap and move the adjustment handle locking tab (3) forward as shown unlatching the handle (2) from the column.
    Fig 4: Shroud Screws
    GC0013259Courtesy of CHRYSLER LLC
  6. Remove the four (three for column shift column) shroud mounting screws (2).
    Fig 5: Roll Top Shroud
    GC0013258Courtesy of CHRYSLER LLC
  7. Remove the roll top shroud (1) along with manual tilt/telescope handle (3) (if equipped).
