Hose - Supply: Installation

Fig 1: Removing/Installing Remote Reservoir

Courtesy of CHRYSLER LLC

Install reservoir end of supply hose (3) on reservoir hose fitting. Install clamp securing hose in place.

Fig 2: Supply Hose - 3.5L
Courtesy of CHRYSLER LLC
2.7L/3.5L Engines - Install supply hose (3) on pump. Install clamp (2) securing hose in place.

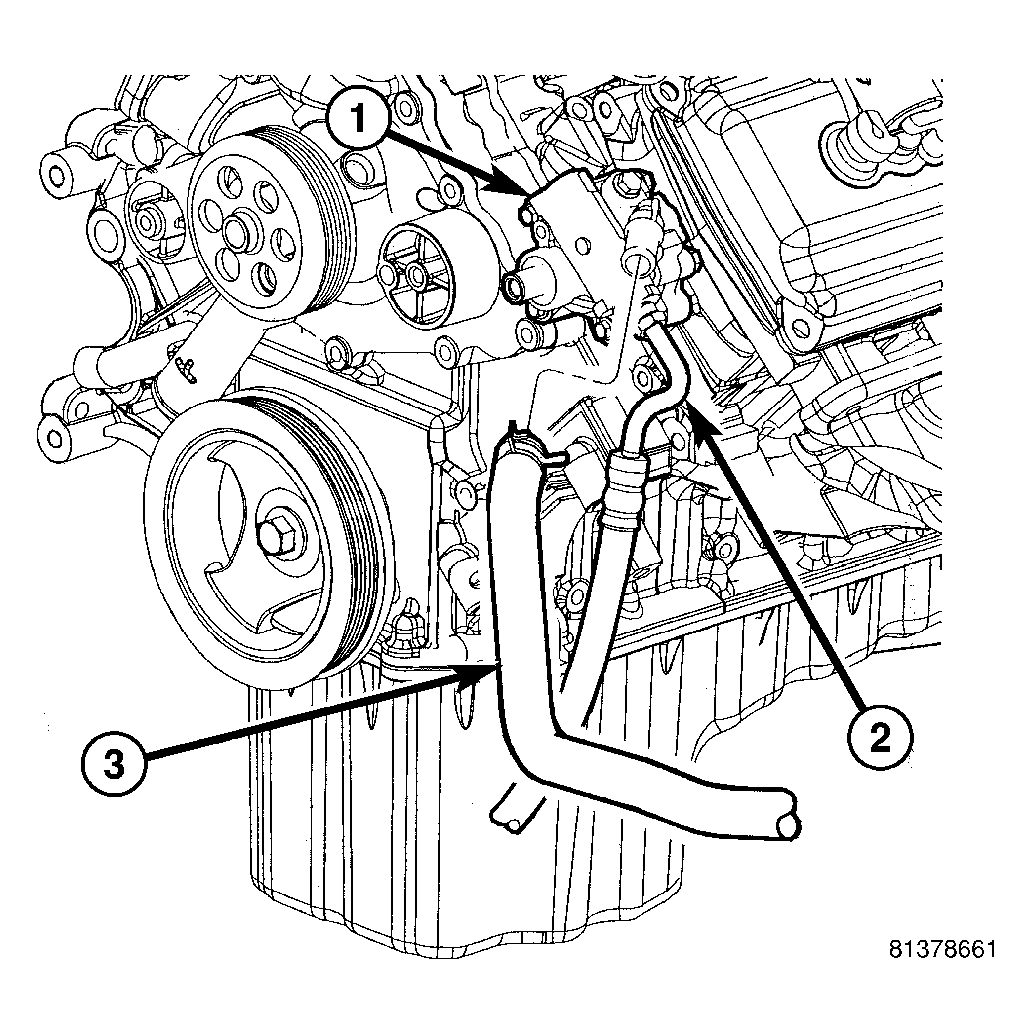

Fig 3: Supply Hose - 5.7L
Courtesy of CHRYSLER LLC
5.7L/6.1L Engines - Install supply hose (3) on pump (1). Install clamp securing hose in place.

Fig 4: Supply Hose - 3.0L Diesel
Courtesy of CHRYSLER LLC
3.0L Diesel Engine - Install supply hose (3) on pump (1). Install clamp (2) securing hose in place.
Install air cleaner housing and inlet tube. Refer to INSTALLATION .

Fig 5: Disconnecting/Connecting Battery Cables
Courtesy of CHRYSLER LLC
Connect battery negative cable (2) to battery post. It is important that this is performed properly. Refer to STANDARD PROCEDURE .
Fill and bleed power steering system. See STANDARD PROCEDURE .
