Pump-Power Steering, 3.0L Diesel

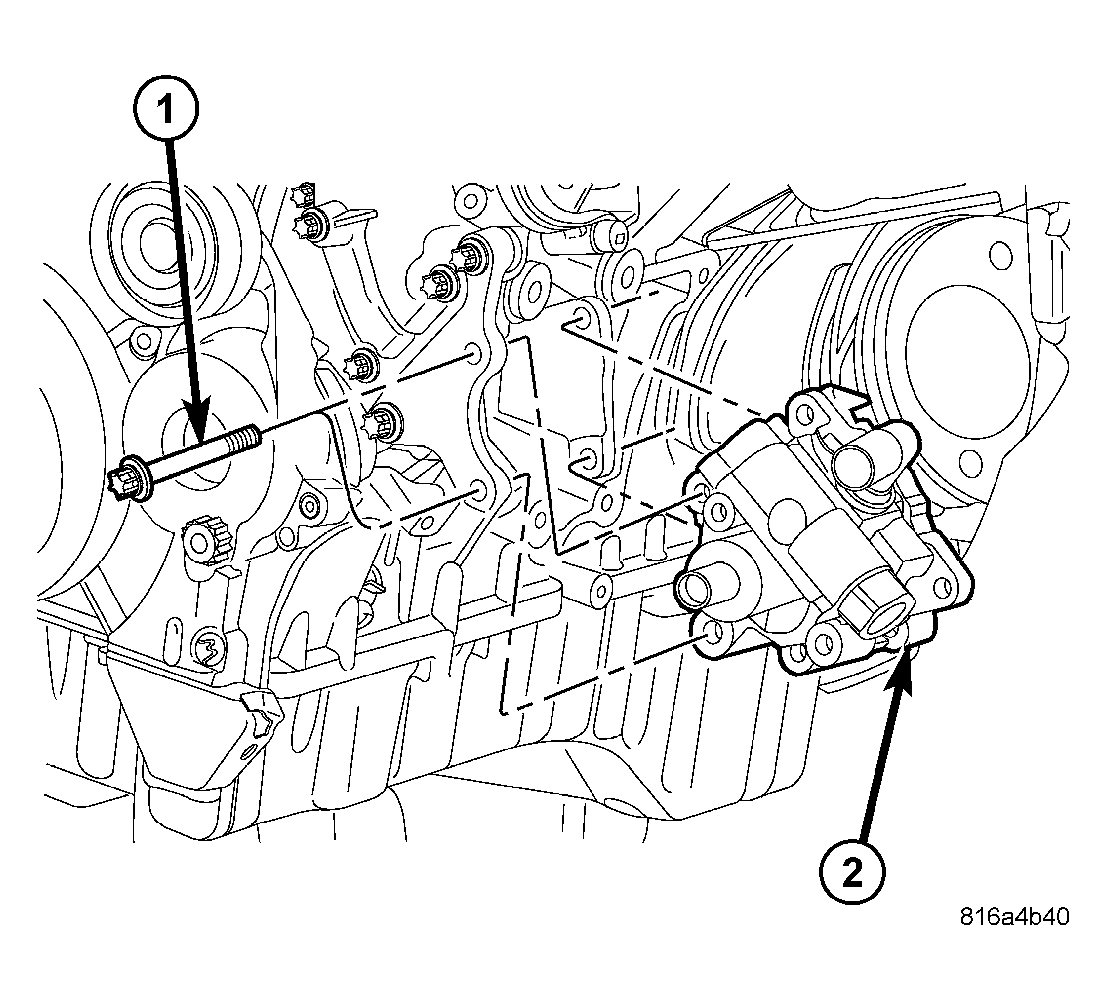

Fig 1: Power Steering Pump - 3.0L Diesel

Courtesy of CHRYSLER LLC

1. Align pump (2) with mounting holes in pump mounting brackets on engine.
2. Install, but do not tighten, two pump mounting bolts (1) through access holes in pulley.

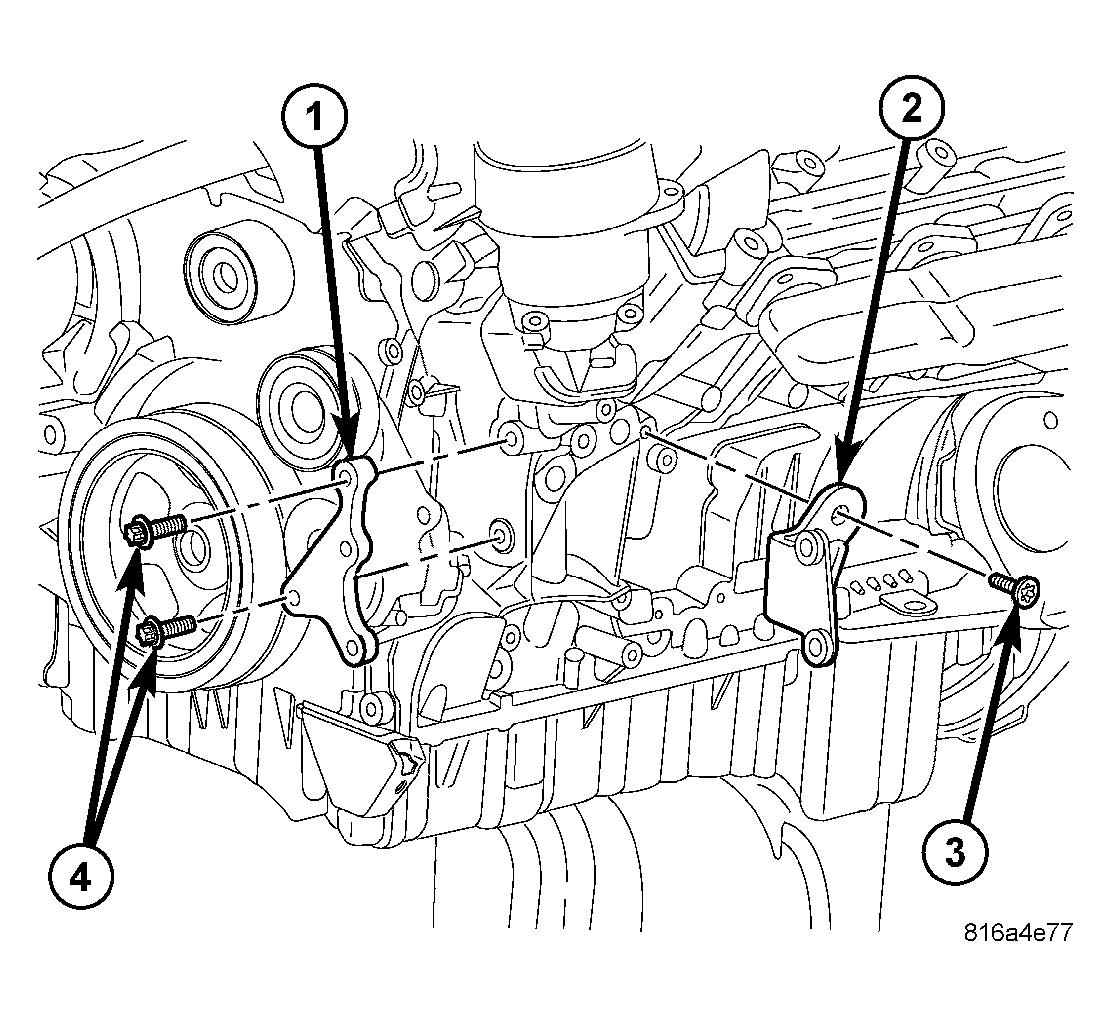

   Fig 2: Pump Mounting Brackets - 3.0L Diesel

   Courtesy of CHRYSLER LLC
3. Install two mounting bolts (4) fastening front pump mounting bracket (1) to engine. Tighten bolts to 24 N.m (17 ft. lbs.).
   Fig 3: Power Steering Pump - 3.0L Diesel

   Courtesy of CHRYSLER LLC
4. Tighten two pump mounting bolts (1) to 24 N.m (17 ft. lbs.).

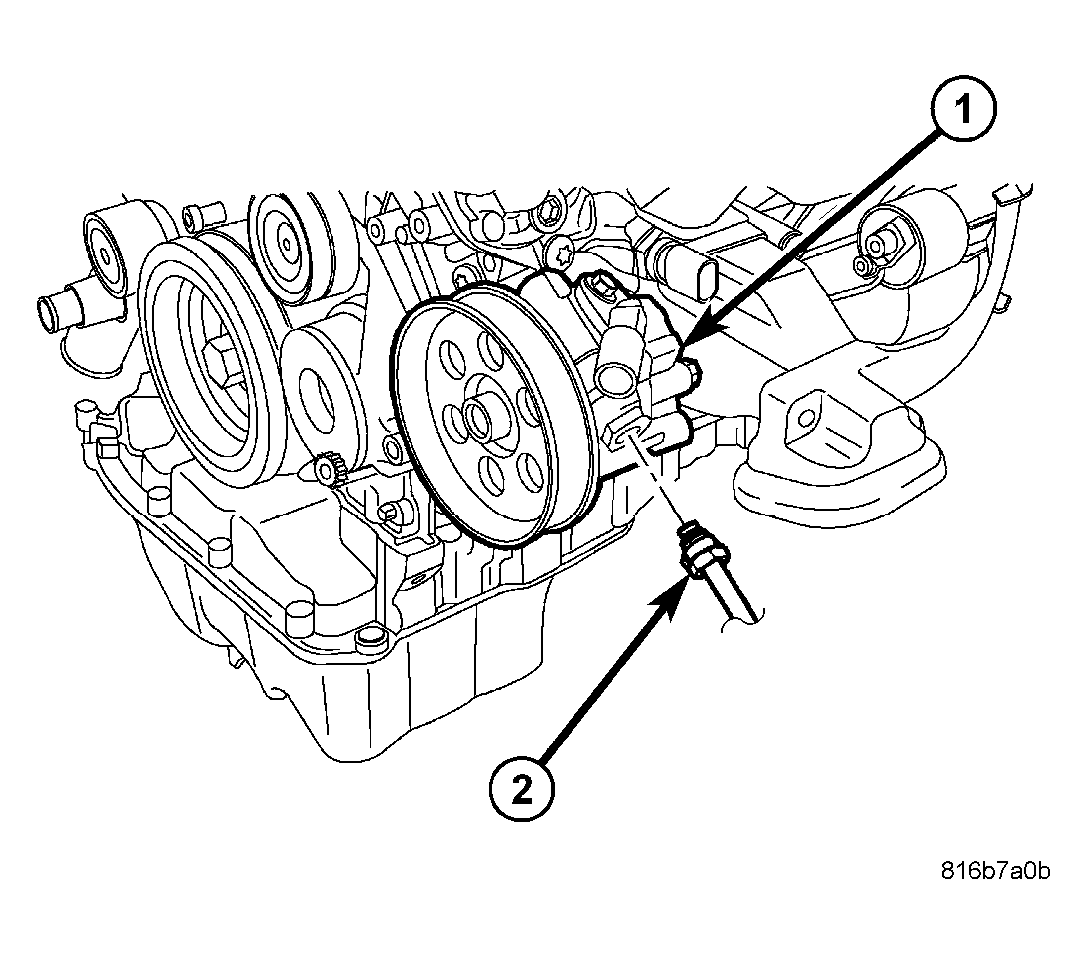

   Fig 4: Pressure Hose At Pump

   Courtesy of CHRYSLER LLC
   NOTE: Always use a NEW O-ring on the end of the pressure hose.
5. Lubricate NEW O-ring on end of pressure hose with clean power steering fluid.
6. Install pressure hose to pump (1). Tighten pressure hose tube nut (2) to 47 N.m (35 ft. lbs.).

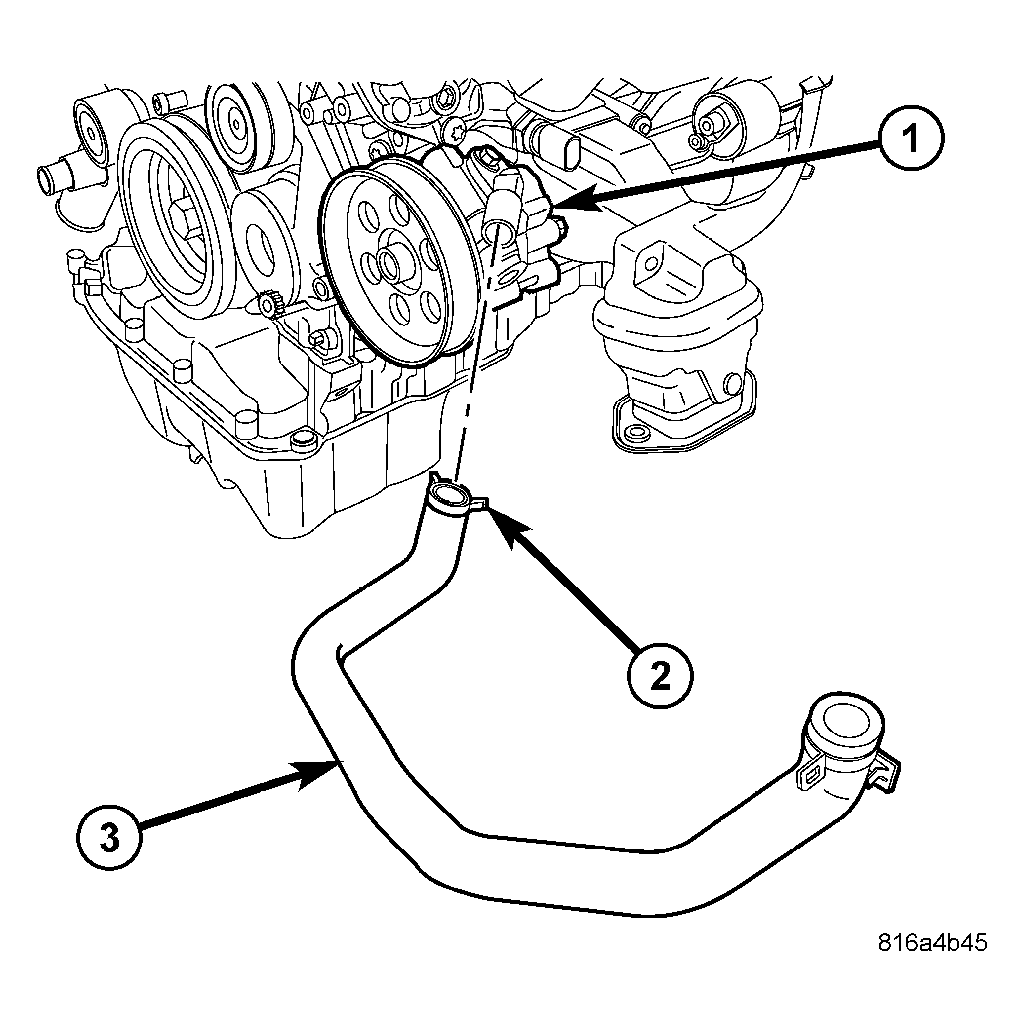

   Fig 5: Supply Hose - 3.0L Diesel

   Courtesy of CHRYSLER LLC
7. Install supply hose (3) on pump (1). Install clamp (2) securing hose in place.
8. Install serpentine drive belt. Refer to INSTALLATION .
9. Install intercooler tube resonator.
10. Install turbocharger inlet tube.
11. Install air cleaner housing. Refer to INSTALLATION .
12. Install engine cover.
    Fig 6: Disconnecting/Connecting Battery Cables

    Courtesy of CHRYSLER LLC
13. Connect battery negative cable (2) to battery post. It is important that this is performed properly. Refer to STANDARD PROCEDURE .
14. Fill and bleed power steering system. See STANDARD PROCEDURE .
