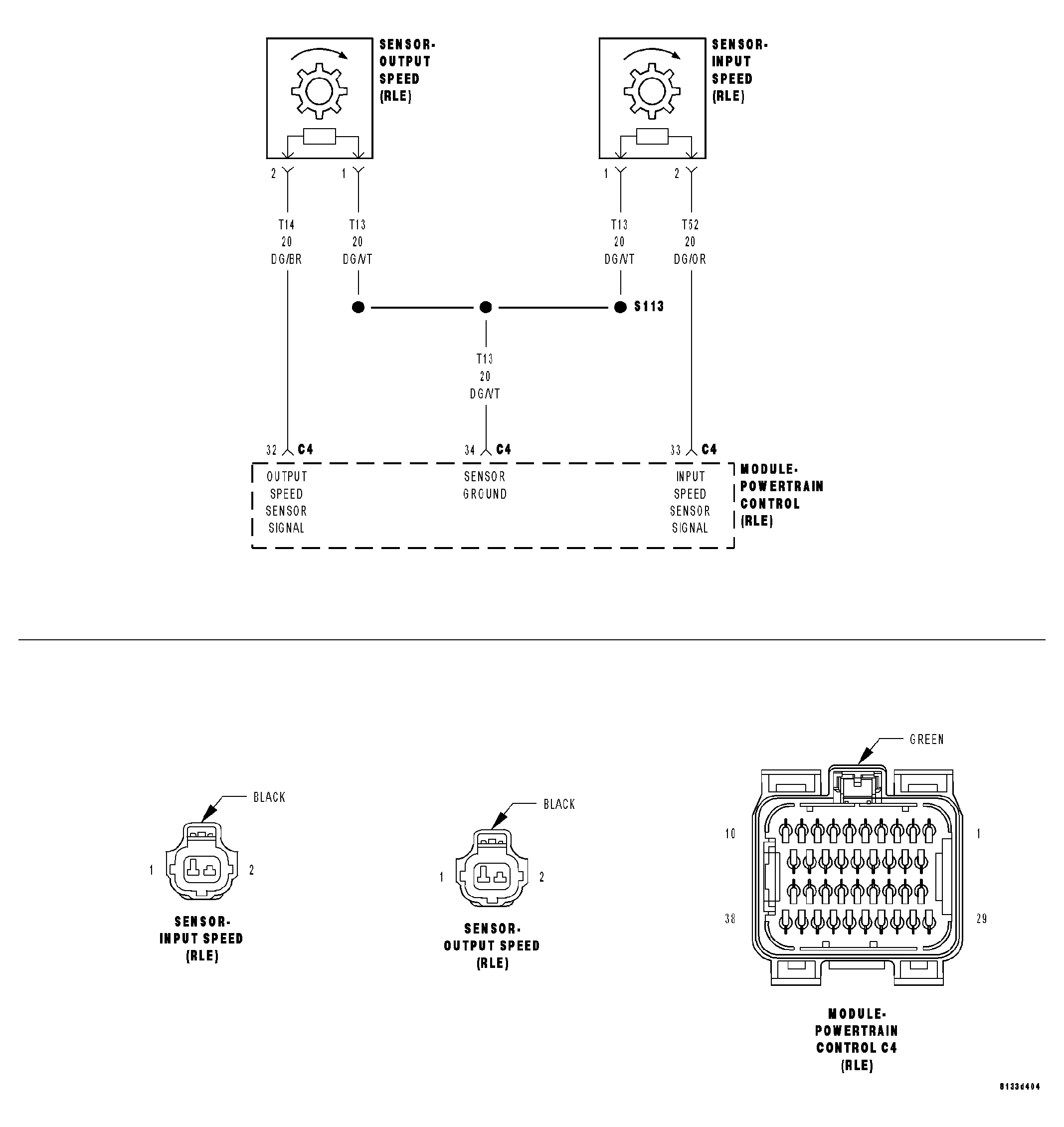

Home › Chrysler › 2007 › 300 Base › Repair and Diagnosis › Transmission › Transmission Control Systems › 42RLE Automatic Transmission - Electrical Diagnostics › DTC Troubleshooting › P1794-Speed Sensor Ground Error › Circuit Schematic
