Chrysler
›
2007
›
300 Touring, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
DTCS P0642 To P1501
›
P0685-Auto Shutdown Relay Control Circuit
›
Circuit Schematic
Circuit Schematic

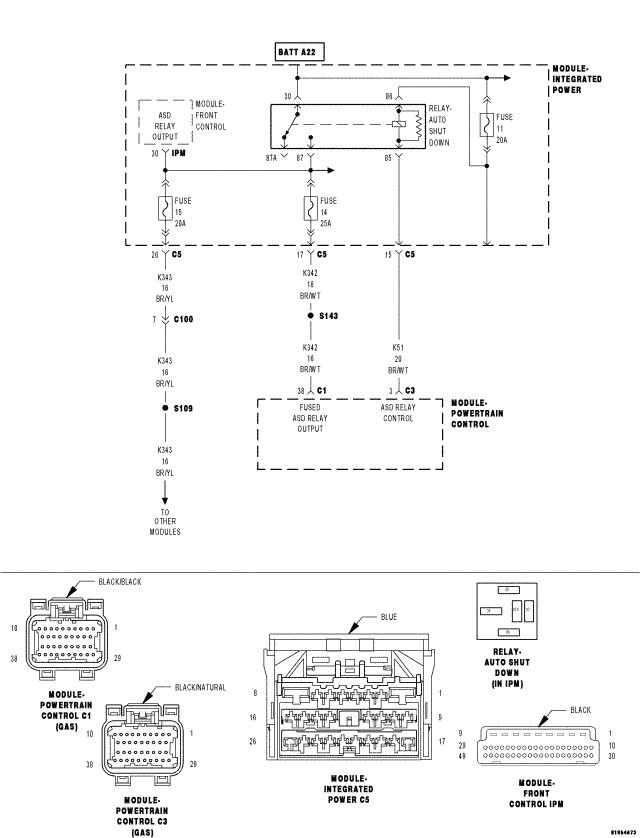

Fig 1: Auto Shutdown Relay Control Circuit Schematic
Courtesy of CHRYSLER LLC
Courtesy of CHRYSLER LLC
