Home › Chrysler › 2007 › Aspen 4.7 N, RWD › Repair and Diagnosis › Engine Performance › System › DTCS P0645 To P1572 › P1411-Cylinder 1 Reactivation Control Performance › Circuit Schematic

Circuit Schematic

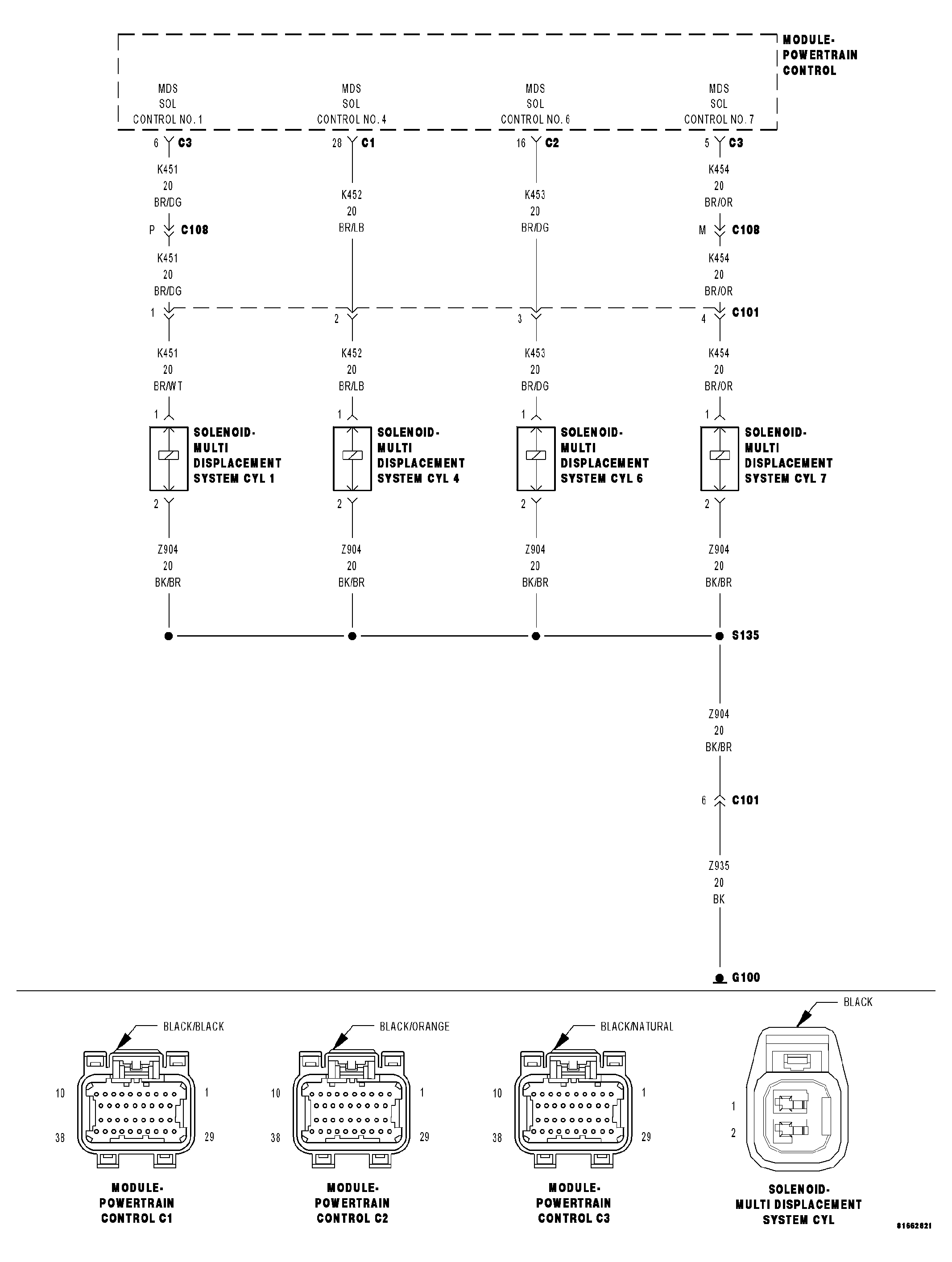

Fig 1: Multi Displacement System Solenoids Circuit Schematic
GC0043869Courtesy of CHRYSLER LLC
