Circuit Schematic

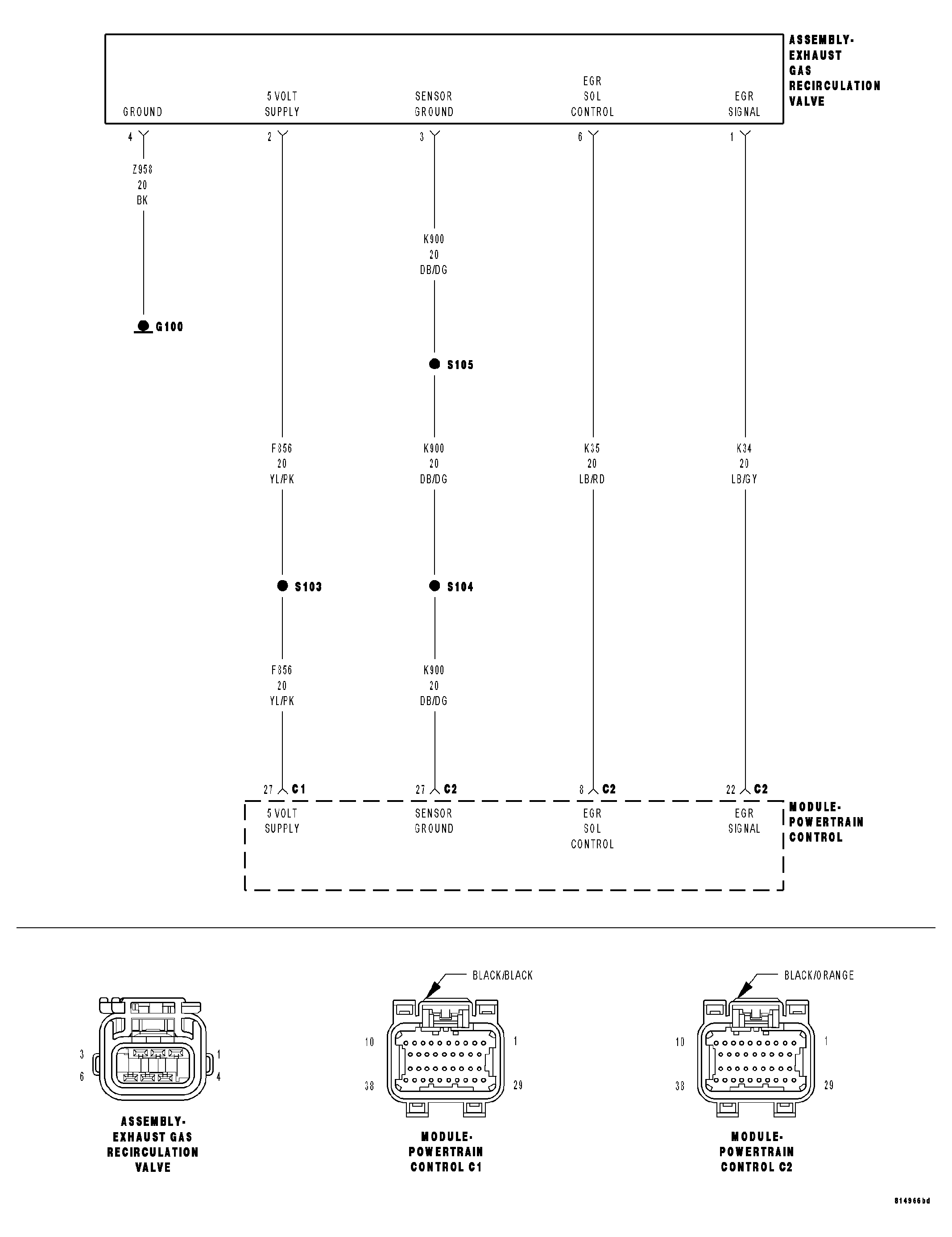

Fig 1: Exhaust Gas Recirculation Valve Circuit Schematic
GC0011569Courtesy of CHRYSLER LLC
