Sentry Key Remote Entry Module

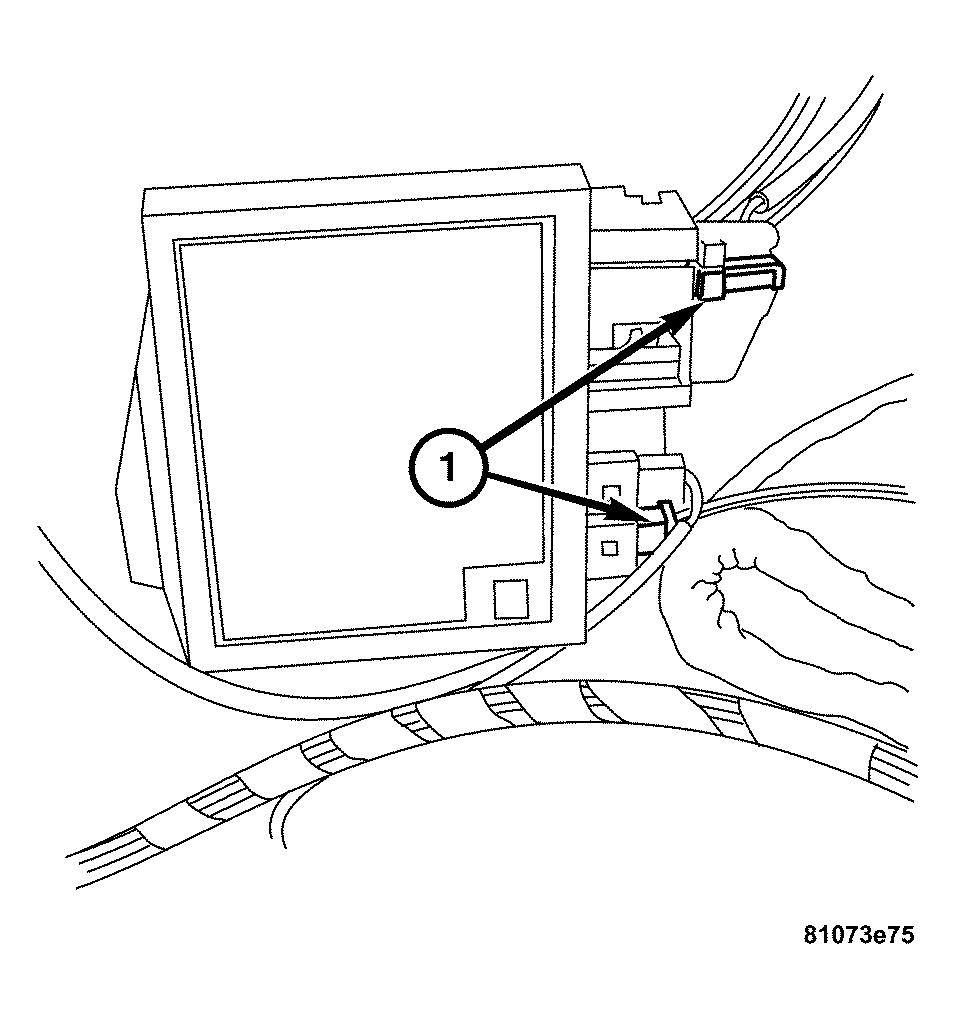

Fig 1: Identifying SKREEM Harness Connectors
GC0033562Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Remove the Instrument Cluster. Refer to REMOVAL .
  3. Disconnect the 2-pin CAN BUS harness connector (1) from the SKREEM module.
  4. Disconnect the 2-pin harness connector for the sentry key antenna ring.
  5. Disconnect the 18-pin harness connector (1) from the SKREEM module.
  6. Press the retaining tabs apart.
  7. Remove the SKREEM module from the base plate.
