A/C Compressor Clutch Connector End View
A/C Compressor Clutch Connector End View

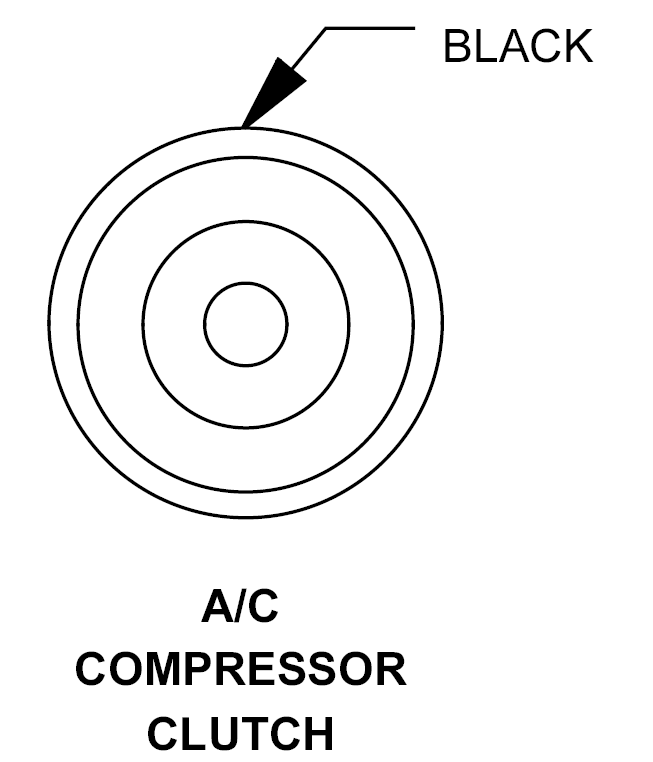

A/C COMPRESSOR CLUTCH - BLACK 1-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
18BL/DG
A/C COMPRESSOR CLUTCH CONTROL
Courtesy of CHRYSLER CORP.
