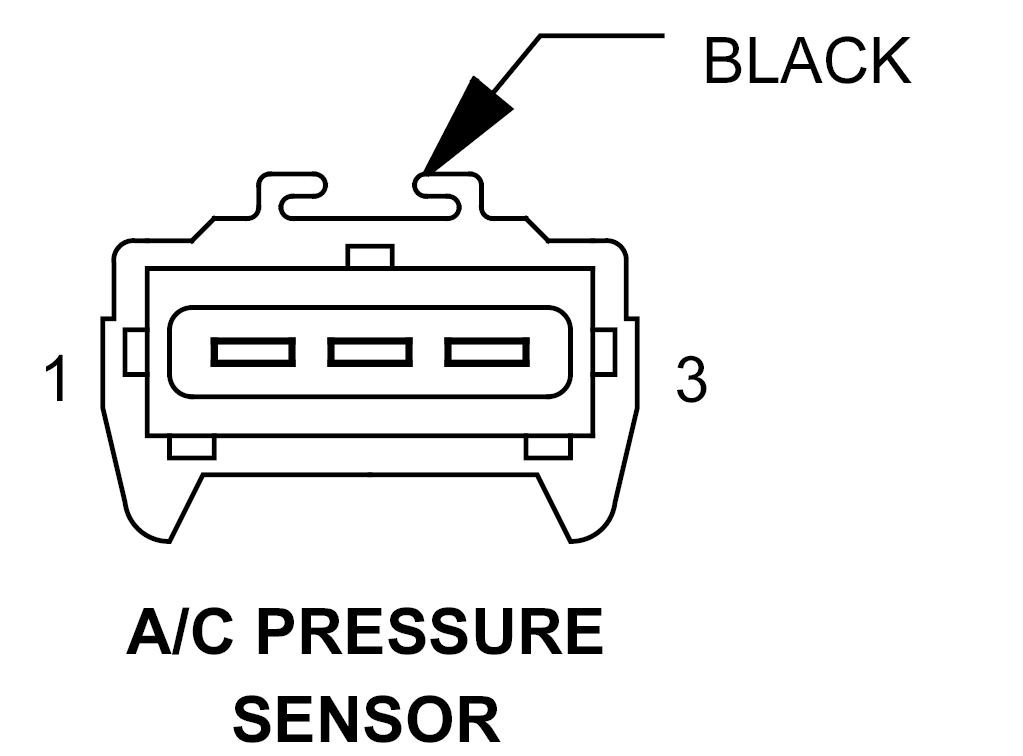

A/C Pressure Sensor Connector End View

A/C PRESSURE SENSOR - BLACK 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18BR/YL	SENSOR GROUND
2	18BL/RD	A/C PRESSURE SENSOR SIGNAL
3	18RD/WT	A/C PRESSURE SENSOR 5 VOLT SUPPLY
