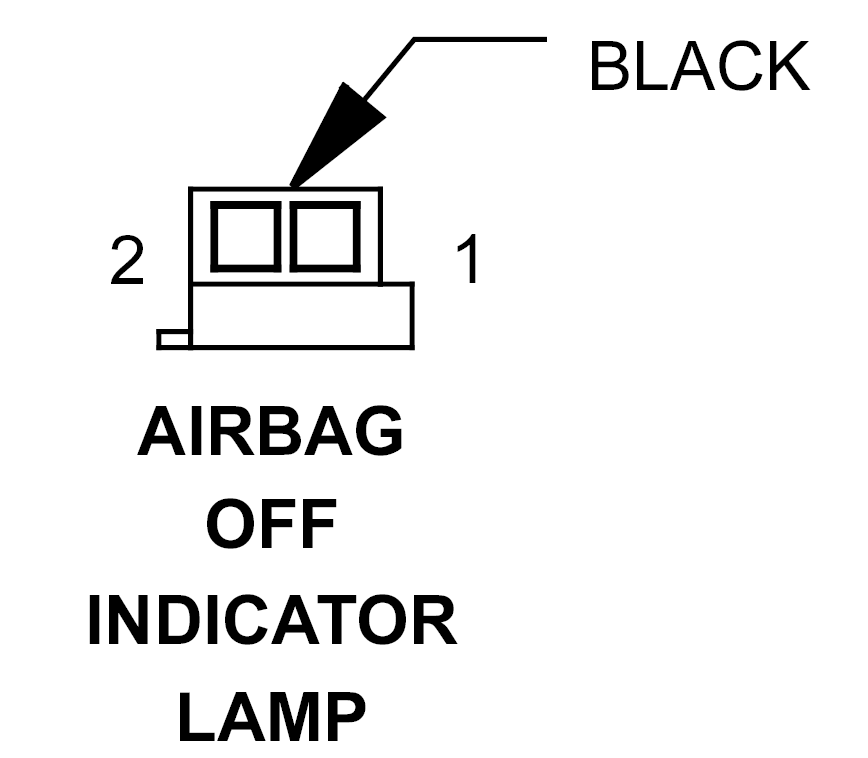

Airbag Off Indicator Lamp Connector End View
Airbag Off Indicator Lamp Connector End View
AIRBAG OFF INDICATOR LAMP - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BK
AIRBAG OFF INDICATOR DRIVER
2
20PK/YL/DG
FUSED IGNITION SWITCH OUTPUT
