Camshaft Position Sensor Connector End View

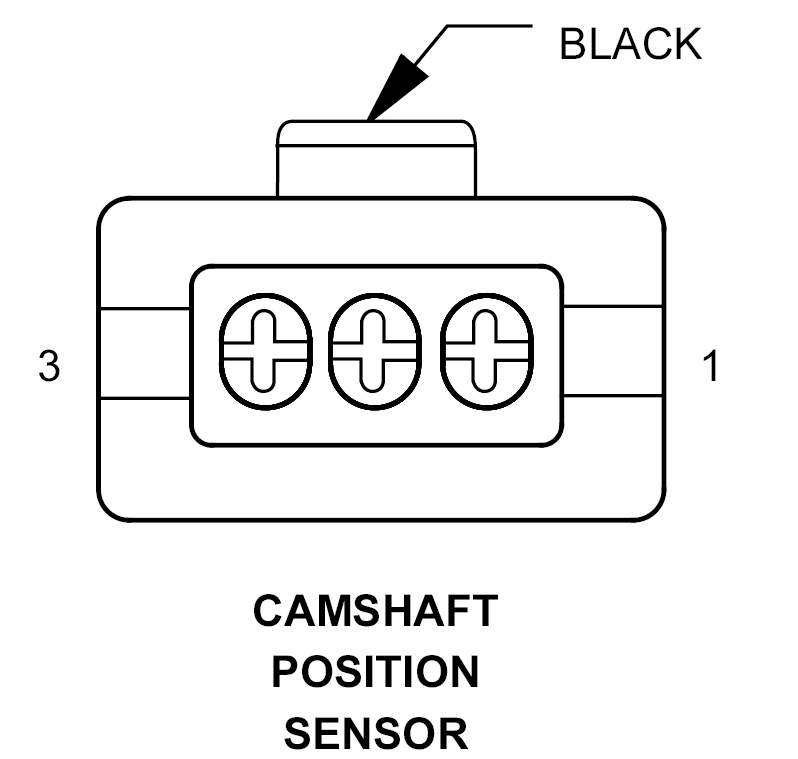

Camshaft Position Sensor Connector End View
CAMSHAFT POSITION SENSOR - BLACK 3-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BR/DG
SENSOR GROUND
2
20PK
CAMSHAFT POSITION SENSOR SIGNAL
3
20RD/BL
FUSED ENGINE CONTROL RELAY OUTPUT
