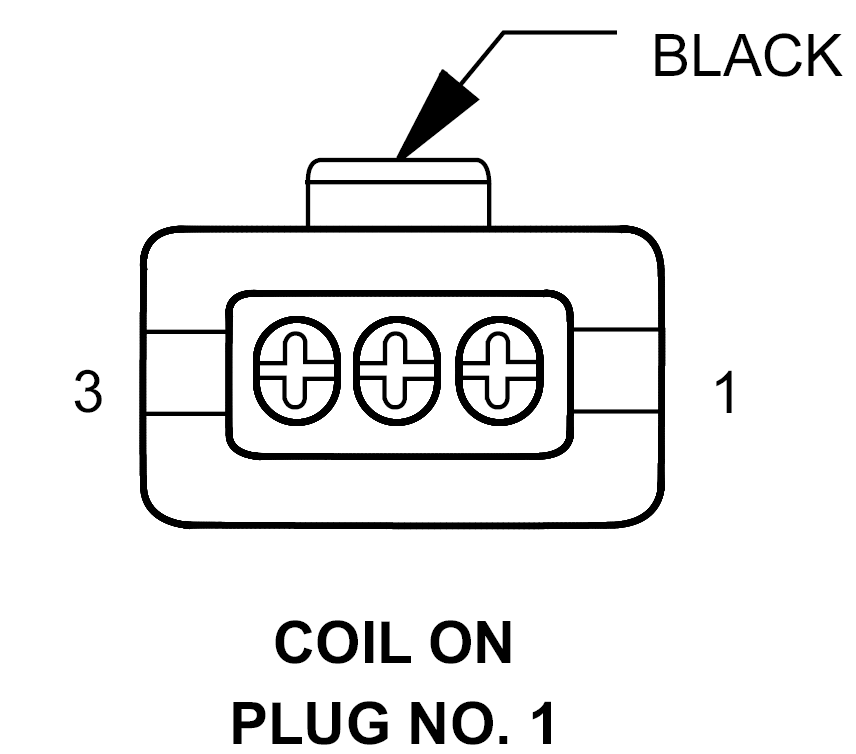

Coil On Plug 1 Connector End View

COIL ON PLUG NO. 1 - BLACK 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18BK	COIL ON PLUG DRIVER NO. 1
2	18BK/DG	FUSED IGNITION SWITCH OUTPUT
3	18BK/WT	COIL ON PLUG DRIVER NO. 1
