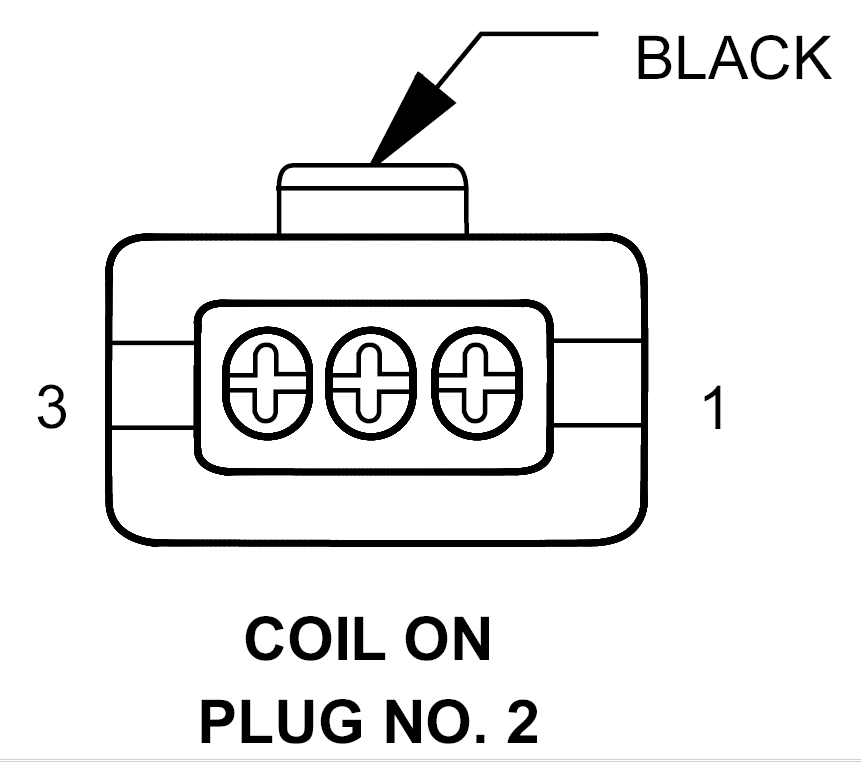

Coil On Plug 2 Connector End View

COIL ON PLUG NO. 2 - BLACK 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18YL	COIL ON PLUG DRIVER NO. 2
2	18BK/DG	FUSED IGNITION SWITCH OUTPUT
3	18YL/WT	COIL ON PLUG DRIVER NO. 2
