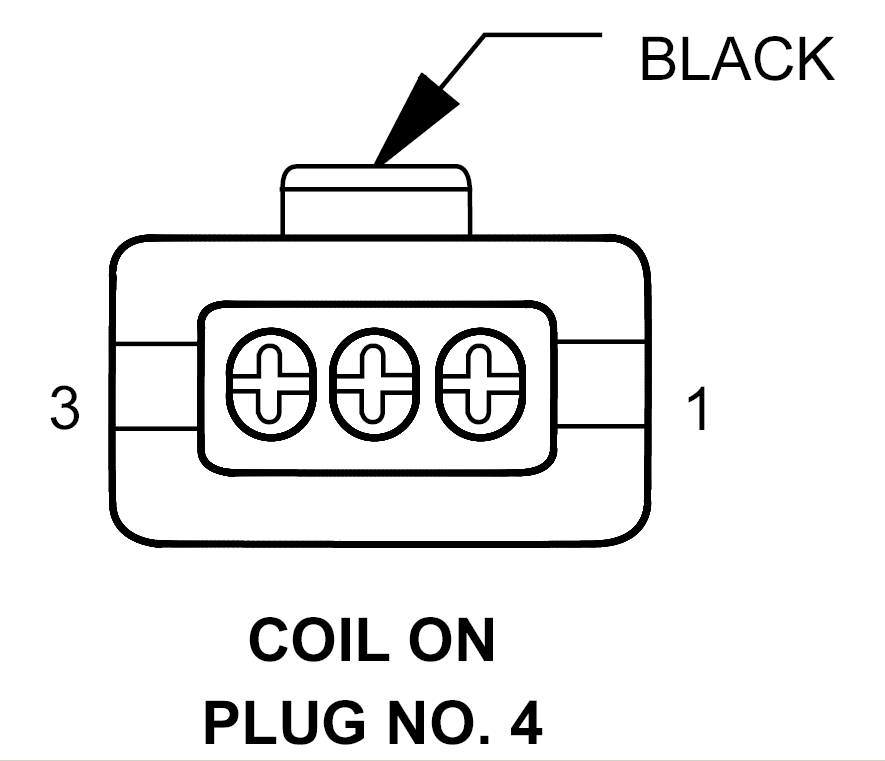

Coil On Plug 4 Connector End View

COIL ON PLUG NO. 4 - BLACK 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18BL	COIL ON PLUG DRIVER NO. 4
2	18BK/YL	FUSED IGNITION SWITCH OUTPUT
3	18BL/WT	COIL ON PLUG DRIVER NO. 4
