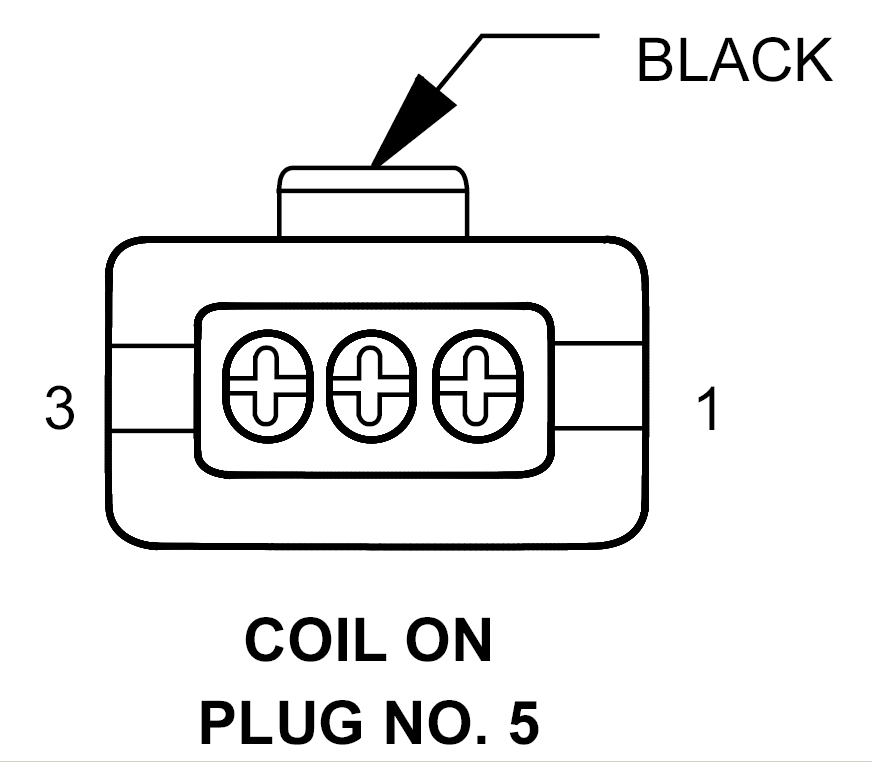

Coil On Plug 5 Connector End View

COIL ON PLUG NO. 5 - BLACK 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18VT	COIL ON PLUG DRIVER NO. 5
2	18BK/YL	FUSED IGNITION SWITCH OUTPUT
3	18VT/WT	COIL ON PLUG DRIVER NO. 5
