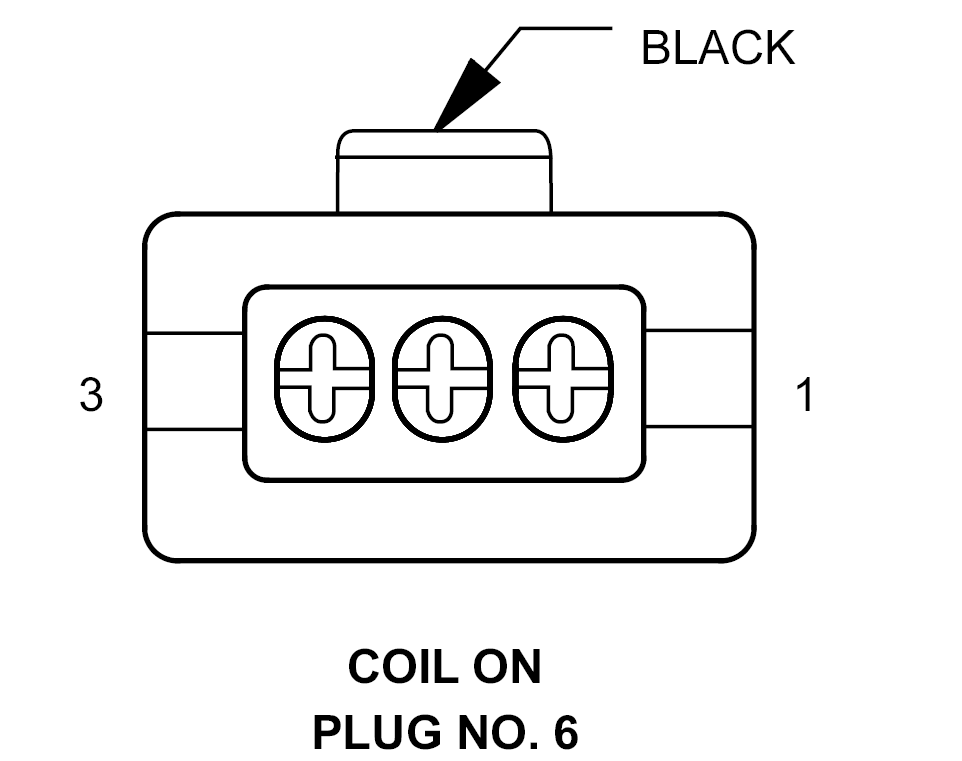

Coil On Plug 6 Connector End View

COIL ON PLUG NO. 6 - BLACK 3-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18GY	COIL ON PLUG DRIVER NO. 6
2	18BK/YL	FUSED IGNITION SWITCH OUTPUT
3	18GY/WT	COIL ON PLUG DRIVER NO. 6
