Coolant Circulation Pump Connector End View

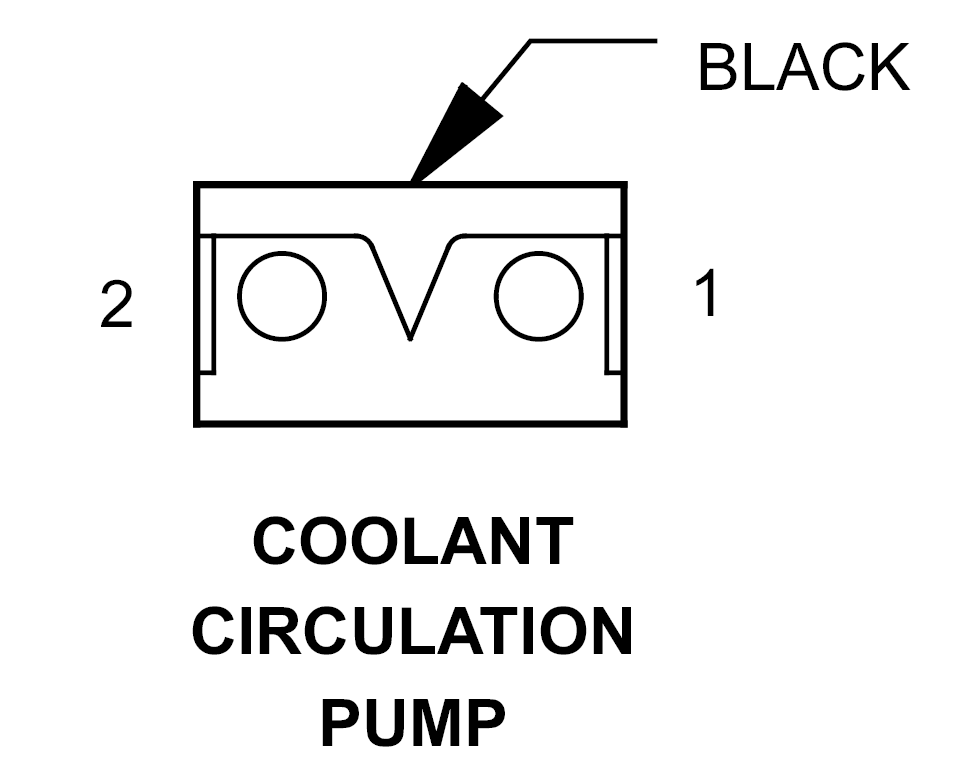

COOLANT CIRCULATION PUMP - BLACK 2-WAY

GZH780092Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20RD/YL FUSED B(+)
2 20BR/DG COOLANT CIRCULATION PUMP CONTROL
