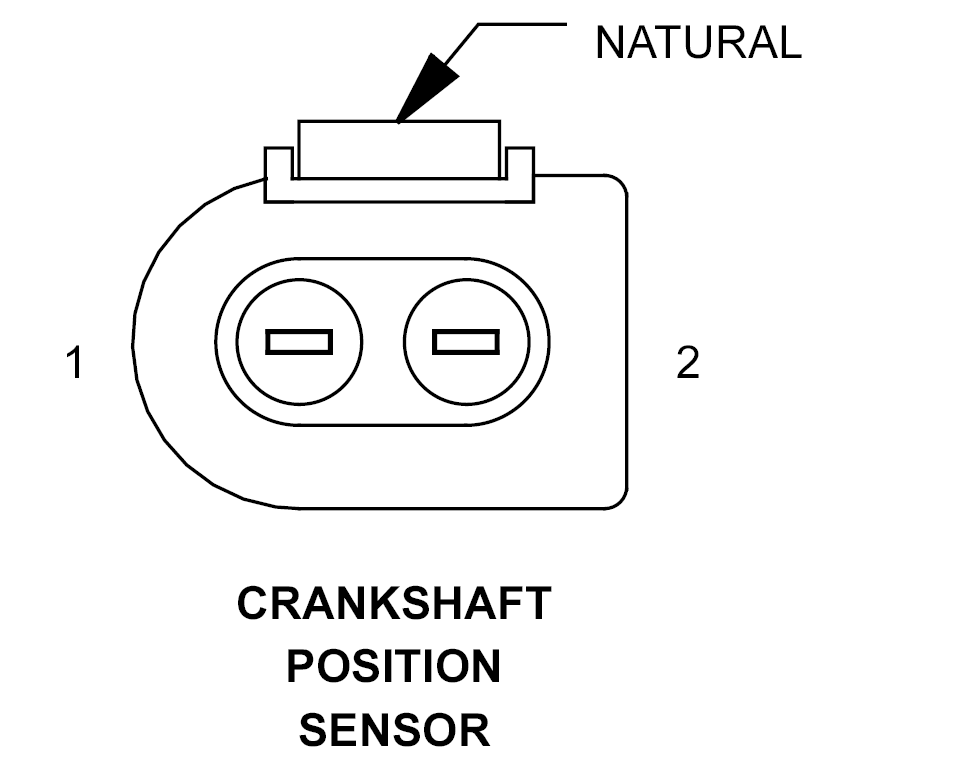

Crankshaft Position Sensor Connector End View

CRANKSHAFT POSITION SENSOR - NATURAL 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20DG	CRANKSHAFT POSITION SENSOR SIGNAL 2
2	20DG/WT	CRANKSHAFT POSITION SENSOR SIGNAL 1
