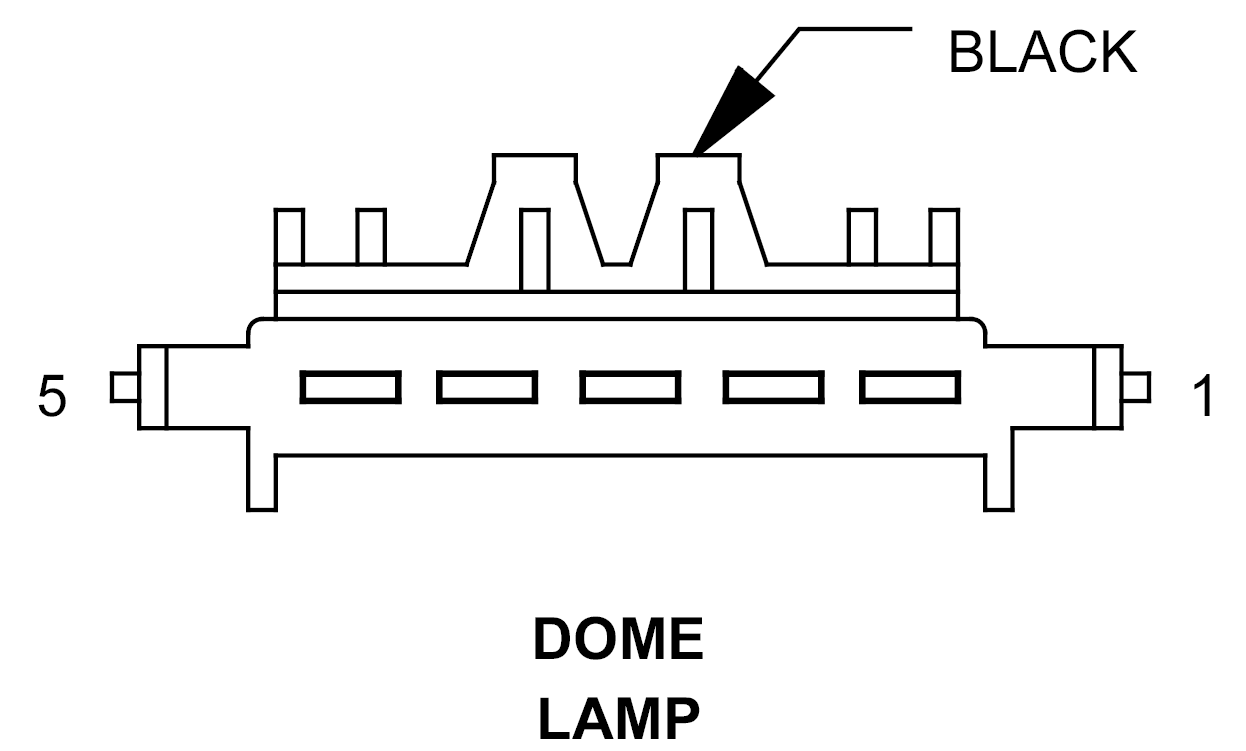

Dome Lamp Connector End View

DOME LAMP - BLACK 5-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18BR/YL	CARGO LAMP CONTROL
2	18BR	GROUND
3	18BL/BR	DOME LAMP CONTROL
4	18RD/GY	FUSED B(+)
5	-	-
