Driver Power Seat Connector End View

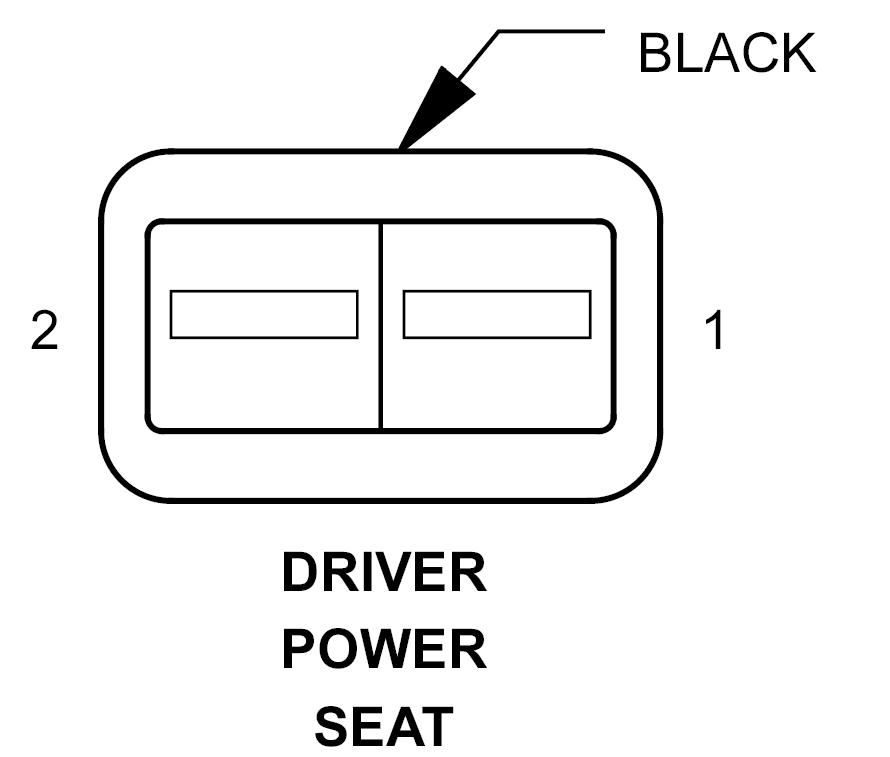

DRIVER POWER SEAT - BLACK 2-WAY

GZH780100Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 14RD/BK FUSED POWER SEAT RELAY OUTPUT
2 14BR GROUND
