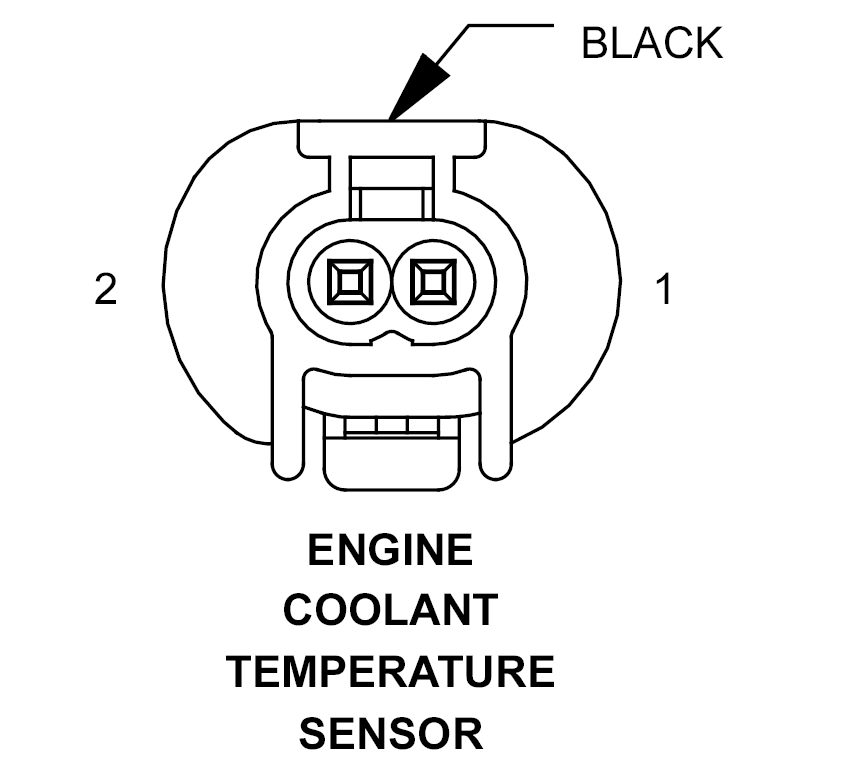

Engine Coolant Temperature Sensor Connector End View

ENGINE COOLANT TEMPERATURE SENSOR - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20DG/RD	ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2	20BR/WT	SENSOR GROUND
