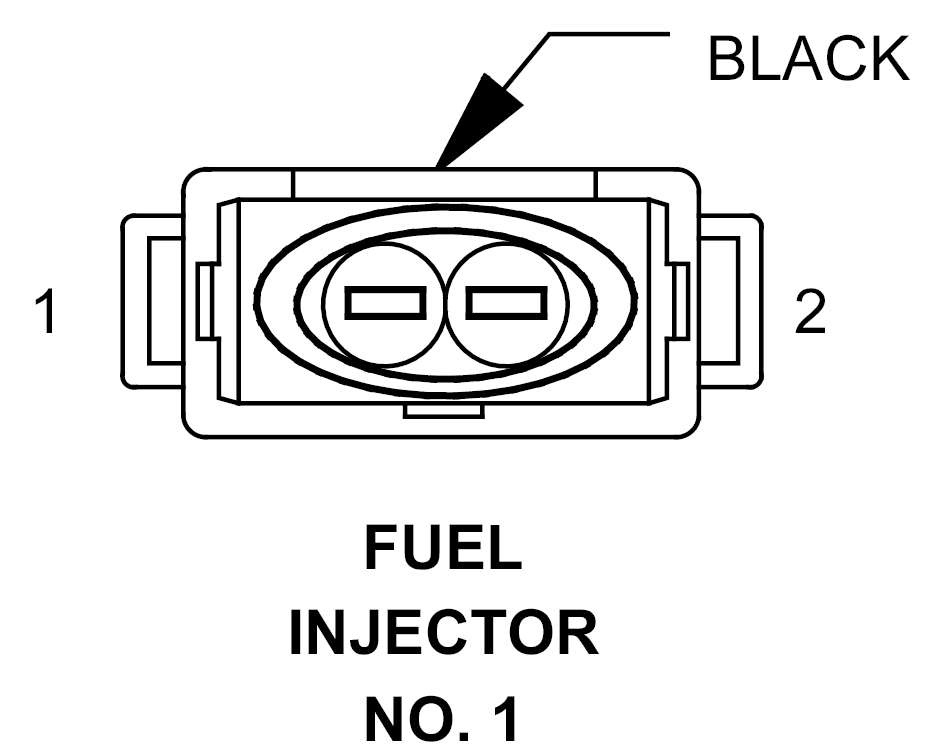

Fuel Injector 1 Connector End View

FUEL INJECTOR NO. 1 - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18GY/BK	FUSED ENGINE CONTROL RELAY OUTPUT
2	18GY/BK	FUEL INJECTOR NO. 1 CONTROL
