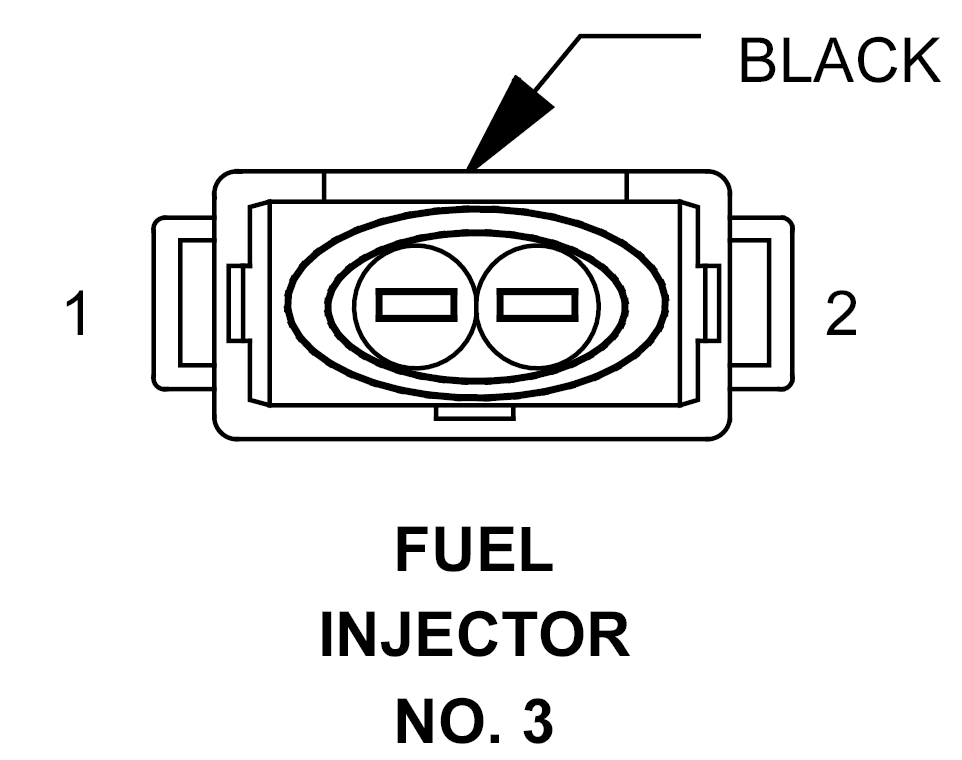

Fuel Injector 3 Connector End View

FUEL INJECTOR NO. 3 - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18GY/DG	FUSED ENGINE CONTROL RELAY OUTPUT
2	18GY/DG	FUEL INJECTOR NO. 3 CONTROL
