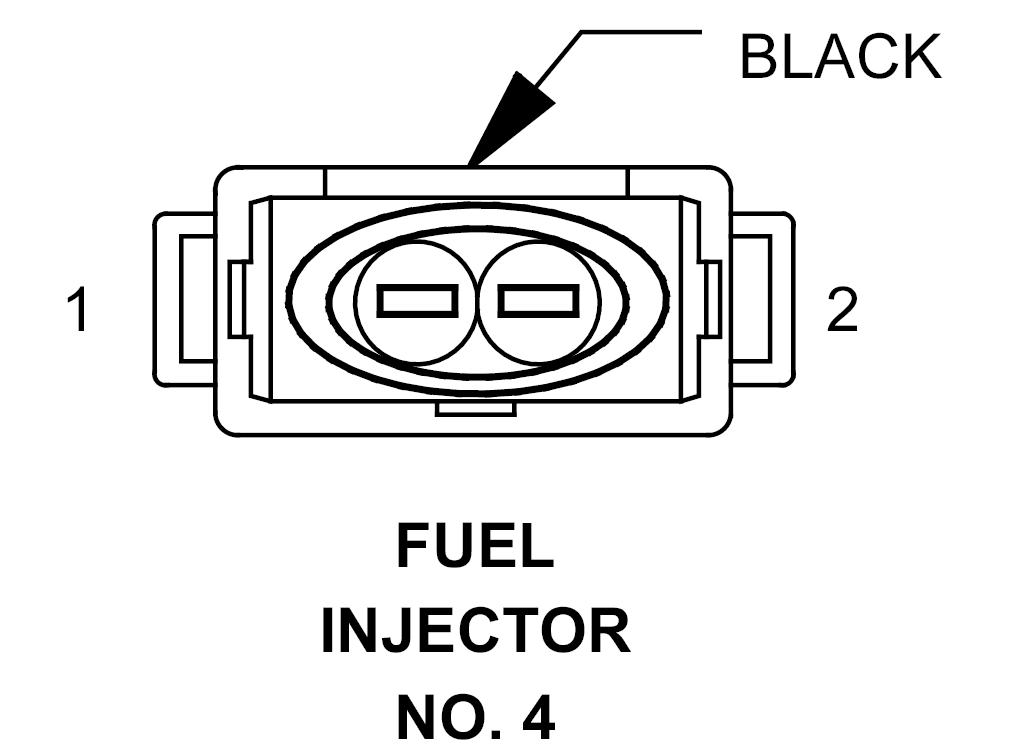

Fuel Injector 4 Connector End View

FUEL INJECTOR NO. 4 - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18GY/BL	FUSED ENGINE CONTROL RELAY OUTPUT
2	18GY/BL	FUEL INJECTOR NO. 4 CONTROL
