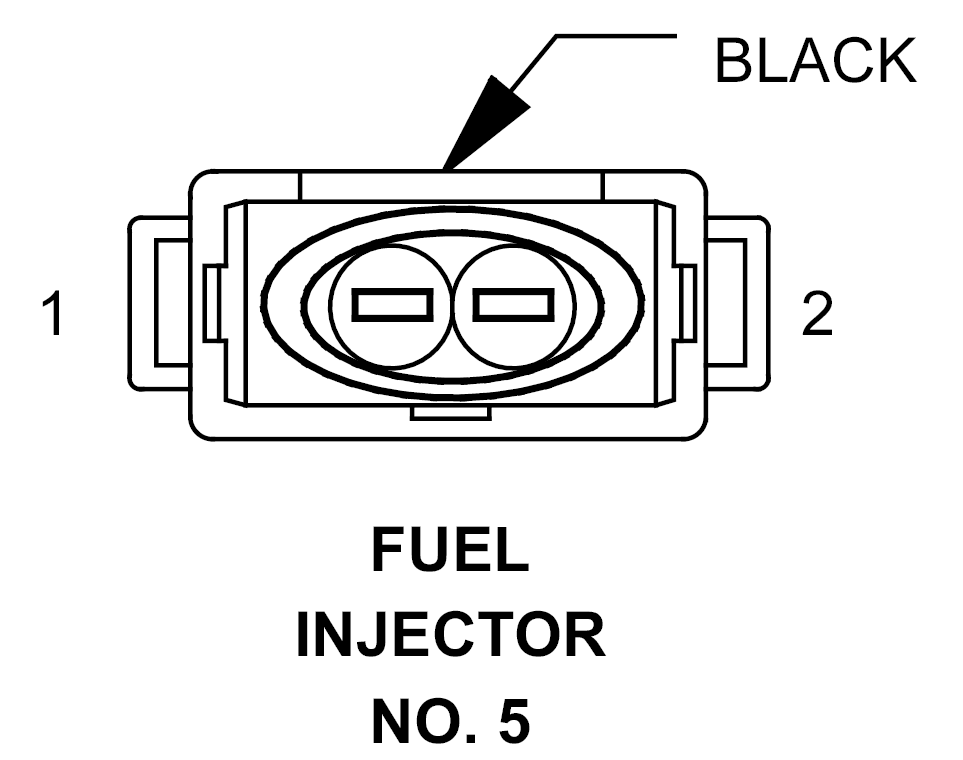

Fuel Injector 5 Connector End View

FUEL INJECTOR NO. 5 - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18GY/YL	FUSED ENGINE CONTROL RELAY OUTPUT
2	18GY/YL	FUEL INJECTOR NO. 5 CONTROL
