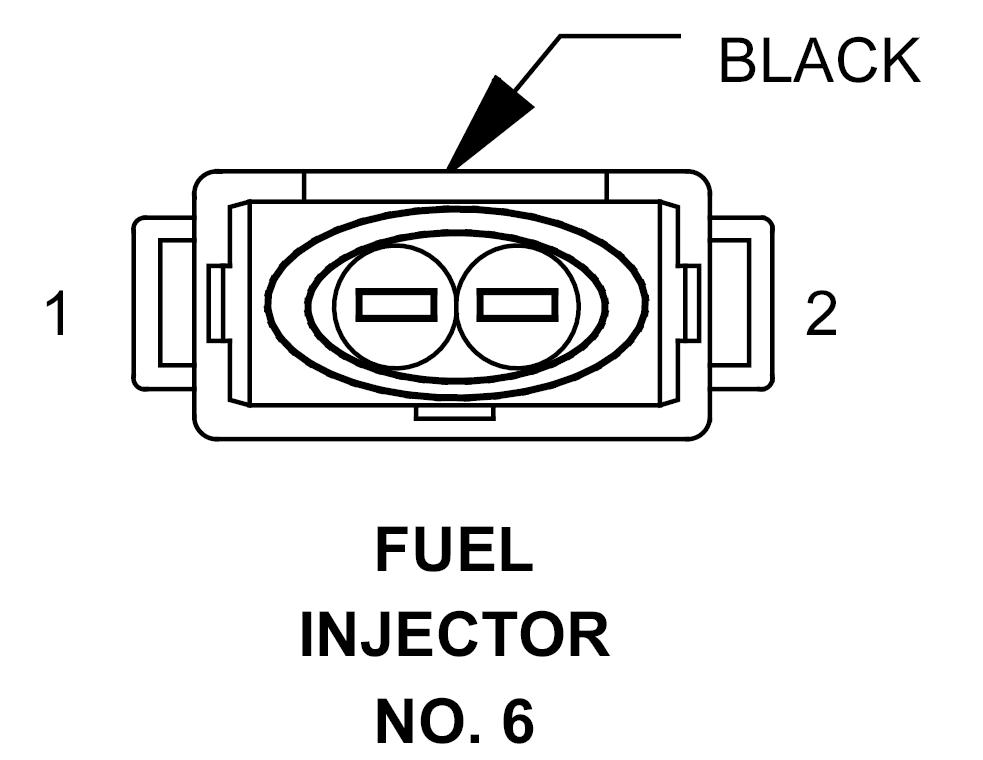

Fuel Injector 6 Connector End View

FUEL INJECTOR NO. 6 - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18GY/VT	FUSED ENGINE CONTROL RELAY OUTPUT
2	18GY/VT	FUEL INJECTOR NO. 6 CONTROL
