Glove Box Switch Connector End View

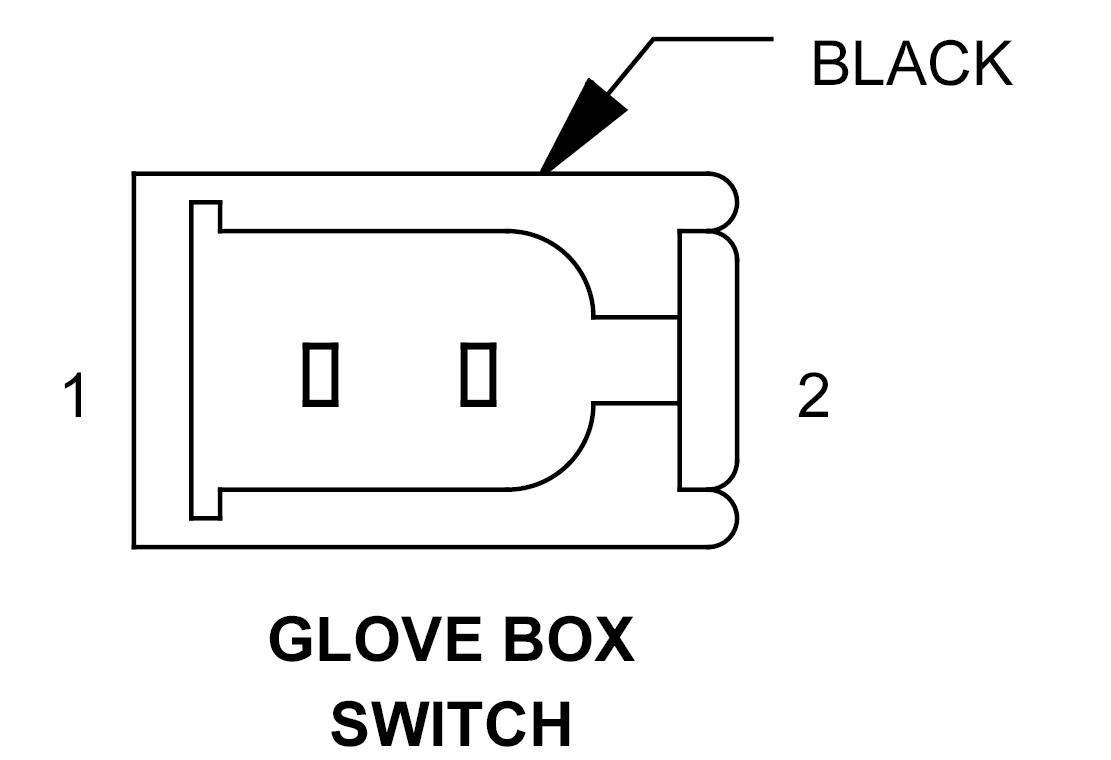

GLOVE BOX SWITCH - BLACK 2-WAY

GZH780121Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR GROUND
2 20BR/GY GLOVE BOX SWITCH SENSE
