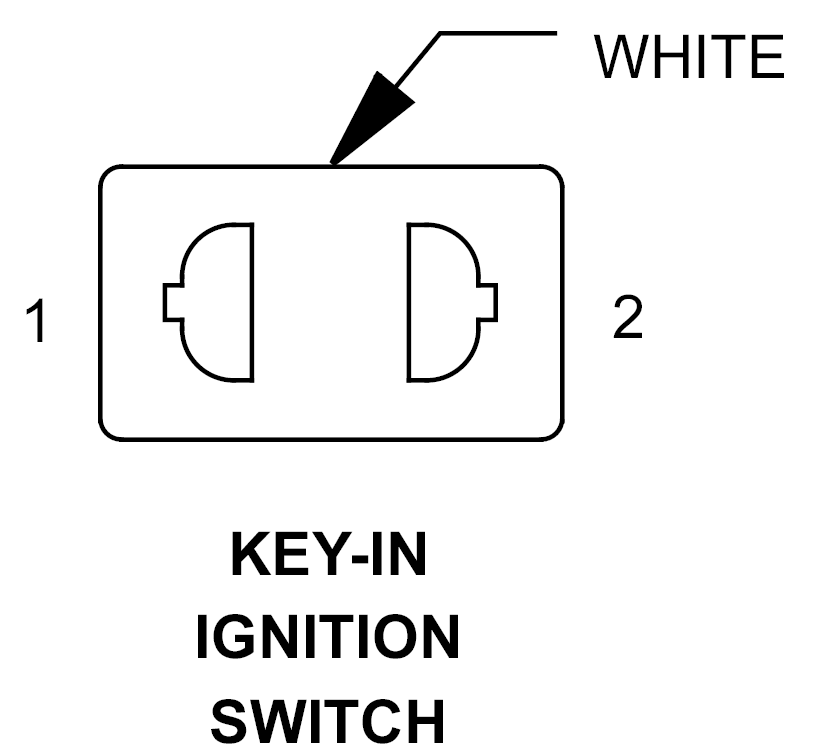

Key In Ignition Switch Connector End View
Key In Ignition Switch Connector End View
KEY-IN IGNITION SWITCH - WHITE 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BR/GY
KEY-IN IGNITION SWITCH SENSE
2
20RD/YL
FUSED B(+)
