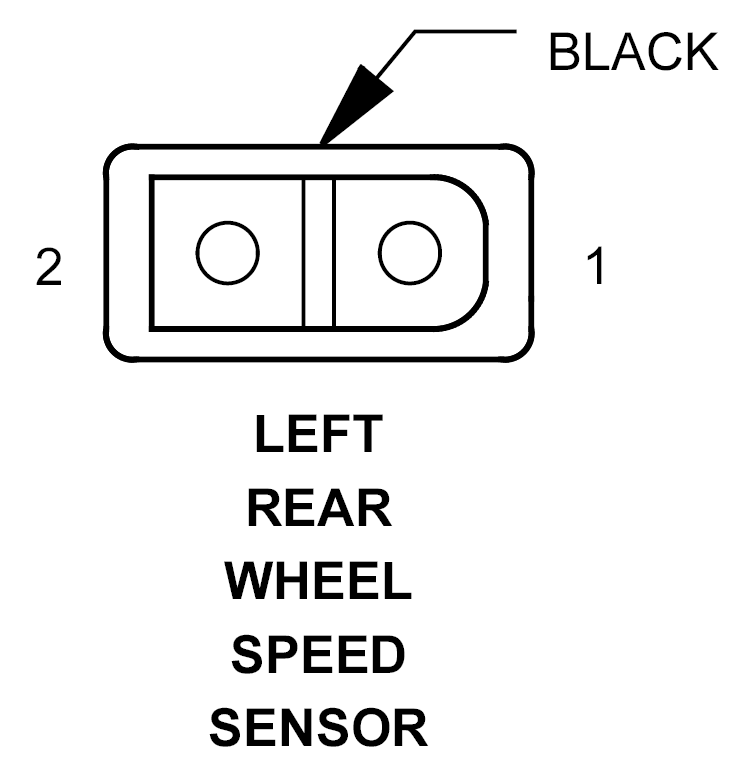

Left Rear Wheel Speed Sensor Connector End View

LEFT REAR WHEEL SPEED SENSOR - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	20BR	LEFT REAR WHEEL SPEED SENSOR SIGNAL
2	20BL	LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
