Crossfire Base, 2D Convertible
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
Connector End Views
›
Connector Pin-Outs
›
Manifold Absolute Pressure Sensor Connector End View
Manifold Absolute Pressure Sensor Connector End View

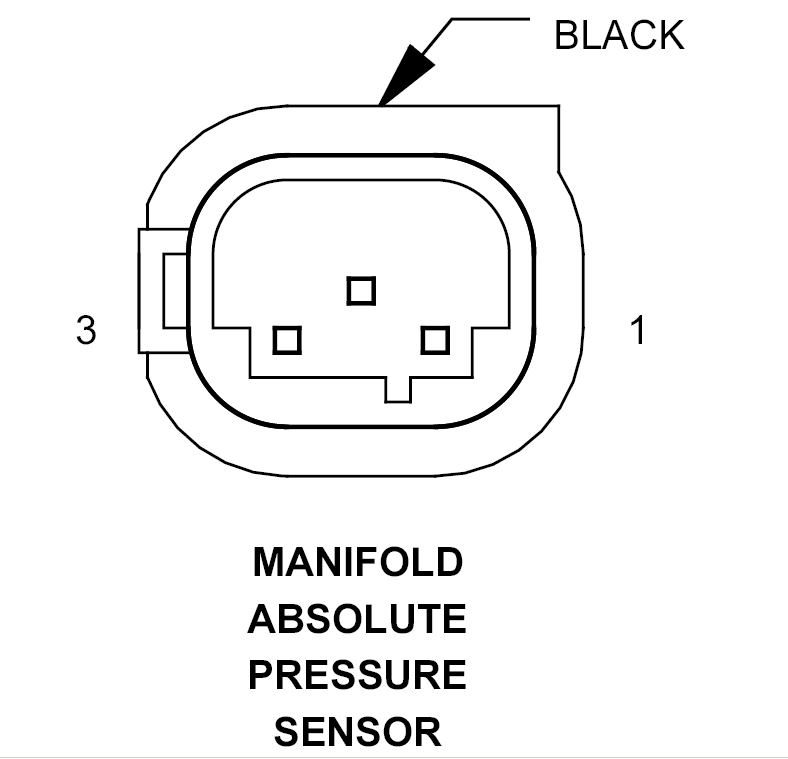

MANIFOLD ABSOLUTE PRESSURE SENSOR - BLACK 3-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BR/GY
SENSOR GROUND
2
20RD/DG
MAP SENSOR SIGNAL
3
20PK/BK
5 VOLT SUPPLY
