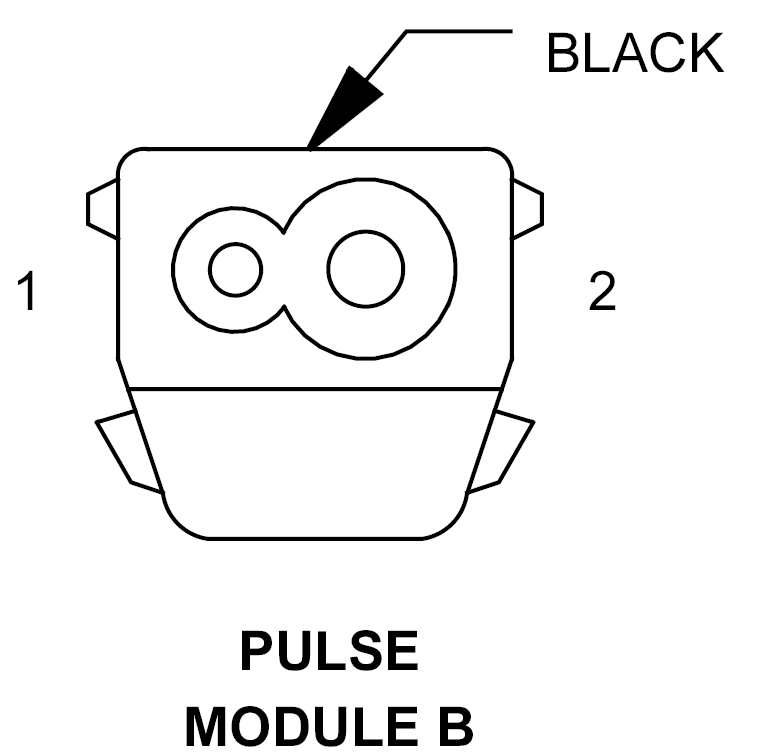

Pulse Module B Connector End View

PULSE MODULE B - BLACK 2-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	16VT	FUSED IGNITION SWITCH OUTPUT (A/T)
1	20VT	CLUTCH INTERLOCK SWITCH OUTPUT (M/T)
2	14PK/RD	FUSED IGNITION SWITCH OUTPUT
