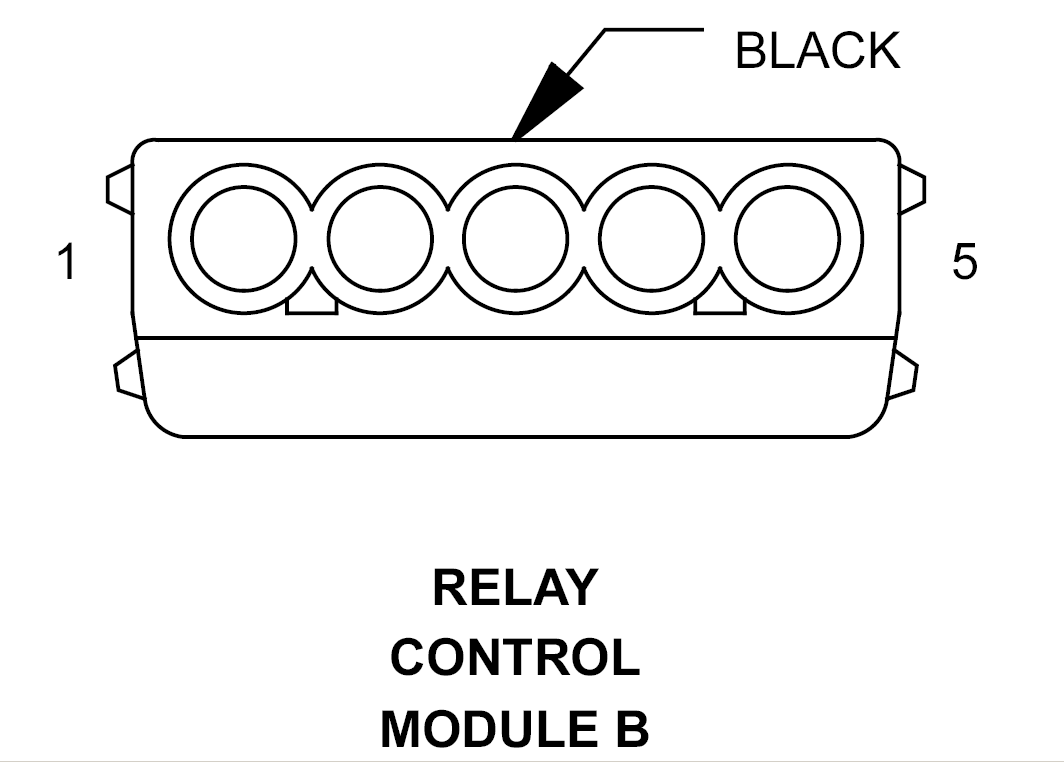

Relay Control Module B Connector End View

RELAY CONTROL MODULE B - BLACK 5-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	12RD	FUSED B(+)
2	12RD	FUSED B(+)
3	14RD/DG	FUEL PUMP RELAY OUTPUT
4	14RD	FUSED B(+)
5	18BR	GROUND
