Right Fog Lamp Connector End View

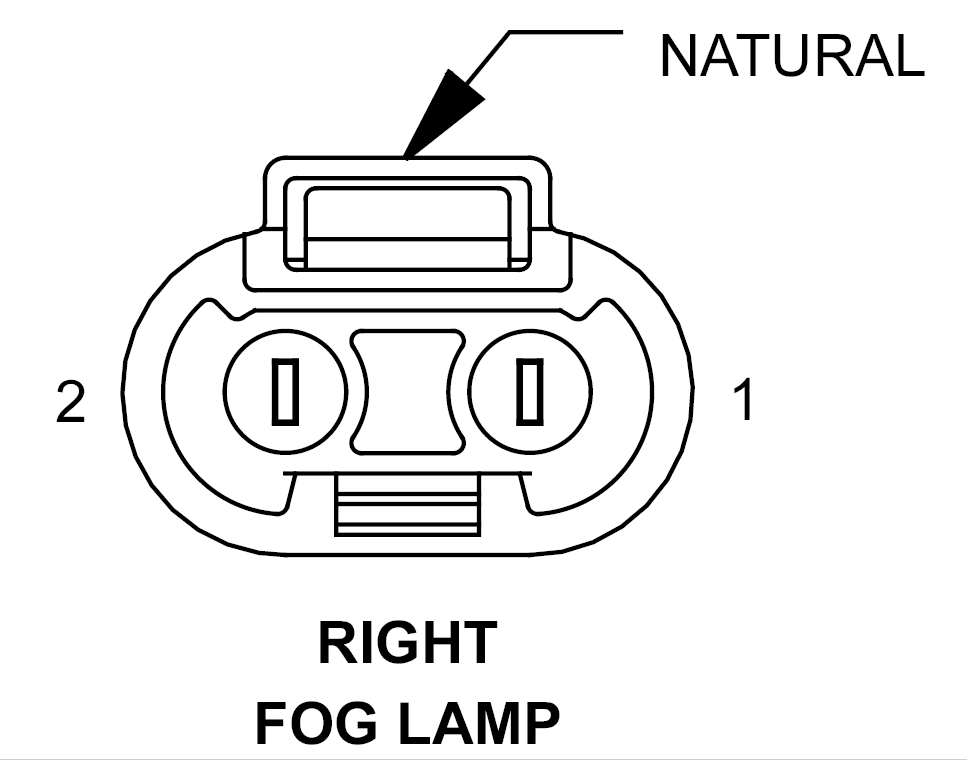

RIGHT FOG LAMP - NATURAL 2-WAY

GZH780216Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 18BR GROUND
2 18GY/YL FUSED FOG LAMP OUTPUT
