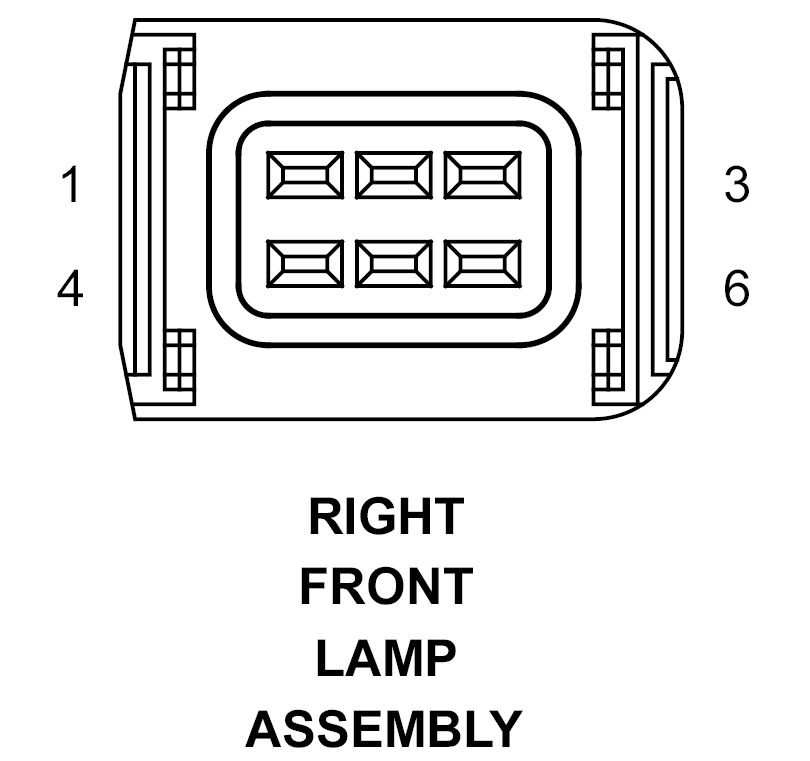

Right Front Lamp Assembly Connector End View

RIGHT FRONT LAMP ASSEMBLY - 6-WAY

Courtesy of CHRYSLER CORP.
CAV	CIRCUIT	FUNCTION
1	18BK/DG	RIGHT TURN SIGNAL OUTPUT
2	16BR	GROUND
3	16YL	FUSED LOW BEAM OUTPUT
4	16WT	FUSED HIGH BEAM OUTPUT
5	-	-
6	-	-
