Right Front Power Window Motor Connector End View
Right Front Power Window Motor Connector End View

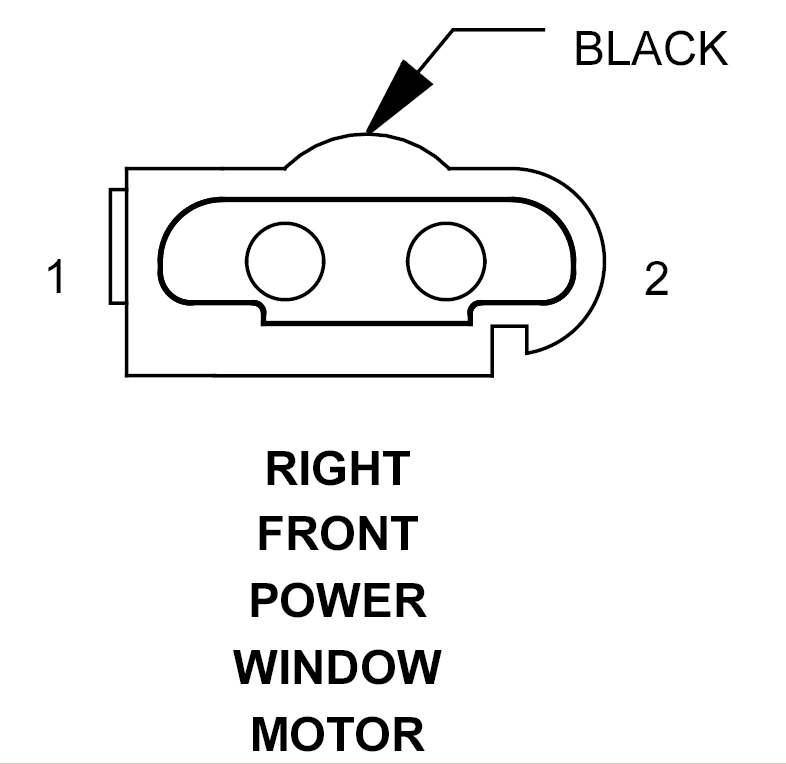

RIGHT FRONT POWER WINDOW MOTOR - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
14DG
RIGHT FRONT POWER WINDOW DRIVER (UP)
2
14BK
RIGHT FRONT POWER WINDOW DRIVER (DOWN)
Courtesy of CHRYSLER CORP.
