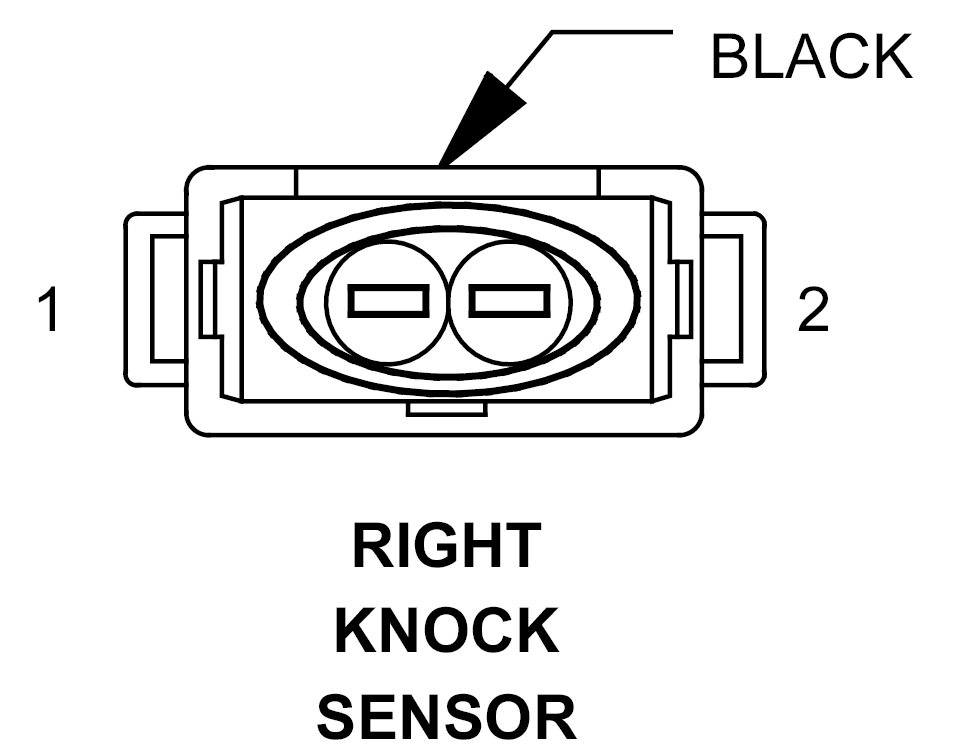

Right Knock Sensor Connector End View
Right Knock Sensor Connector End View
RIGHT KNOCK SENSOR - BLACK 2-WAY
Courtesy of CHRYSLER CORP.
CAV
CIRCUIT
FUNCTION
1
20BK
SENSOR GROUND
2
20VT
RIGHT KNOCK SENSOR SIGNAL
