Right Side Impact Sensor Connector End View

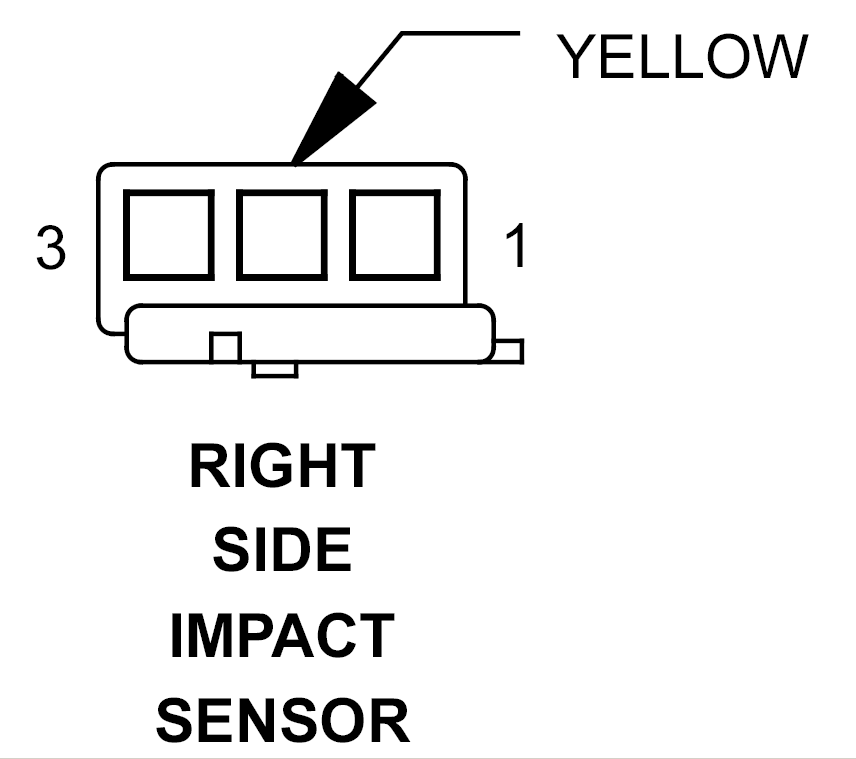

RIGHT SIDE IMPACT SENSOR - YELLOW 3-WAY

GZH780233Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20BR GROUND
2 - -
3 20WT/YL RIGHT SIDE IMPACT SENSOR SIGNAL
