Sentry Key Remote Entry Module Connector End View (C3)

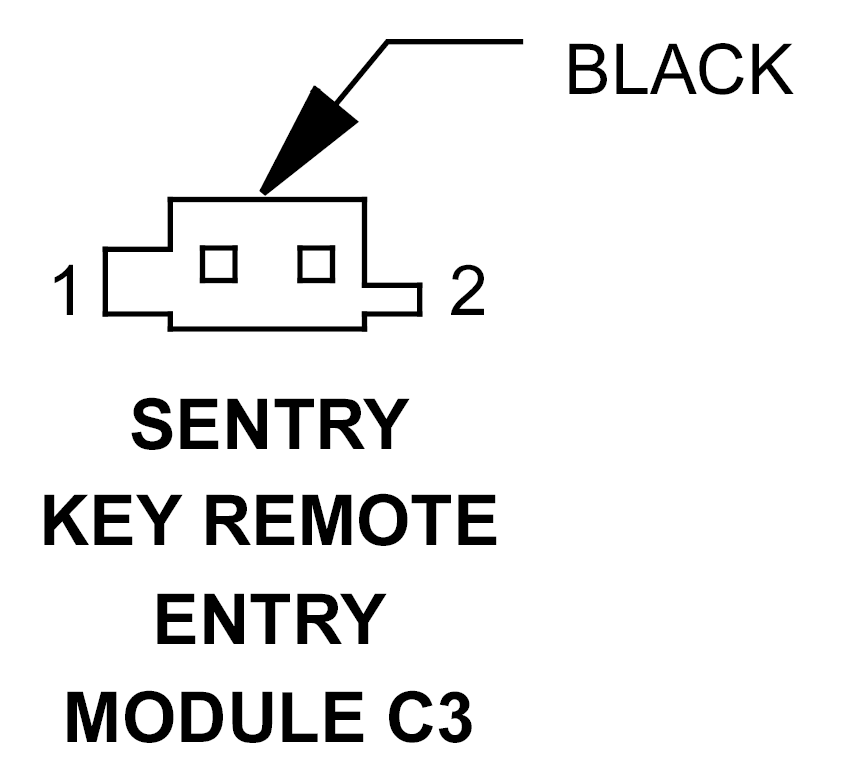

SENTRY KEY REMOTE ENTRY MODULE C3 - BLACK 2-WAY

GZH780238Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 16BK SENTRY KEY ANTENNA
2 SHIELD SHIELD
