Siren Connector End View

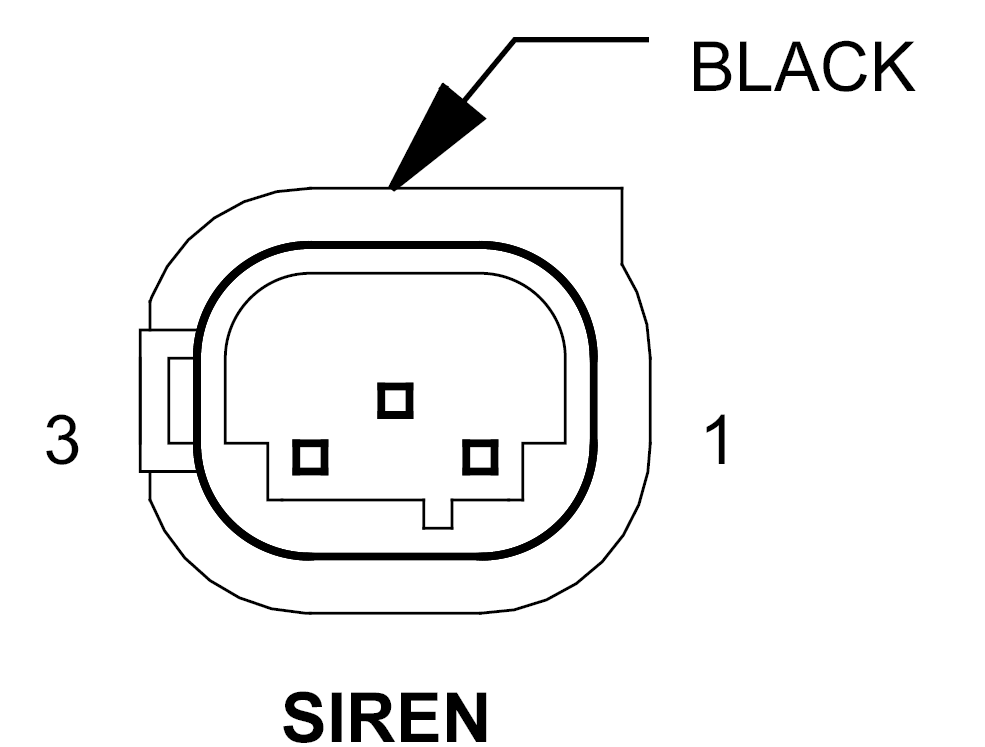

SIREN - BLACK 3-WAY

GZH780241Courtesy of CHRYSLER CORP.
CAV  CIRCUIT  FUNCTION
1 20RD/GY FUSED B(+)
2 20BR GROUND
3 20YL/RD SIREN SIGNAL OUTPUT
